1. gdb打印C++ STL容器

原生gdb通過p打印C++容器，打印出的內容往往難以理解，通過以下的腳本可以實現常用容器的打印。

創新互聯建站堅持“要么做到，要么別承諾”的工作理念，服務領域包括：做網站、網站制作、企業官網、英文網站、手機端網站、網站推廣等服務，滿足客戶于互聯網時代的雙遼網站設計、移動媒體設計的需求，幫助企業找到有效的互聯網解決方案。努力成為您成熟可靠的網絡建設合作伙伴！
  1. 拷貝以下內容到新文件stl_views_1.0.3.gdb
#
#   STL GDB evaluators/views/utilities - 1.03
#
#   The new GDB commands:
#         are entirely non instrumental
#         do not depend on any "inline"(s) - e.g. size(), [], etc
#       are extremely tolerant to debugger settings
#
#   This file should be "included" in .gdbinit as following:
#   source stl-views.gdb or just paste it into your .gdbinit file
#
#   The following STL containers are currently supported:
#
#       std::vector-- via pvector command
#       std::list-- via plist or plist_member command
#       std::map-- via pmap or pmap_member command
#       std::multimap-- via pmap or pmap_member command
#       std::set-- via pset command
#       std::multiset-- via pset command
#       std::deque-- via pdequeue command
#       std::stack-- via pstack command
#       std::queue-- via pqueue command
#       std::priority_queue-- via ppqueue command
#       std::bitset-- via pbitset command
#       std::string -- via pstring command
#       std::widestring -- via pwstring command
#
#   The end of this file contains (optional) C++ beautifiers
#   Make sure your debugger supports $argc
#
#   Simple GDB Macros writen by Dan Marinescu (H-PhD) - License GPL
#   Inspired by intial work of Tom Malnar,
#     Tony Novac (PhD) / Cornell / Stanford,
#     Gilad Mishne (PhD) and Many Many Others.
#   Contact: dan_c_marinescu@yahoo.com (Subject: STL)
#
#   Modified to work with g++ 4.3 by Anders Elton
#   Also added _member functions, that instead of printing the entire class in map, prints a member.



#
# std::vector<>#

define pvector
    if $argc == 0
        help pvector
    else
        set $size = $arg0._M_impl._M_finish - $arg0._M_impl._M_start
        set $capacity = $arg0._M_impl._M_end_of_storage - $arg0._M_impl._M_start
        set $size_max = $size - 1
    end
    if $argc == 1
        set $i = 0
        while $i< $size
            printf "elem[%u]: ", $i
            p *($arg0._M_impl._M_start + $i)
            set $i++
        end
    end
    if $argc == 2
        set $idx = $arg1
        if $idx< 0 || $idx >$size_max
            printf "idx1, idx2 are not in acceptable range: [0..%u].\n", $size_max
        else
            printf "elem[%u]: ", $idx
            p *($arg0._M_impl._M_start + $idx)
        end
    end
    if $argc == 3
      set $start_idx = $arg1
      set $stop_idx = $arg2
      if $start_idx >$stop_idx
        set $tmp_idx = $start_idx
        set $start_idx = $stop_idx
        set $stop_idx = $tmp_idx
      end
      if $start_idx< 0 || $stop_idx< 0 || $start_idx >$size_max || $stop_idx >$size_max
        printf "idx1, idx2 are not in acceptable range: [0..%u].\n", $size_max
      else
        set $i = $start_idx
        while $i<= $stop_idx
            printf "elem[%u]: ", $i
            p *($arg0._M_impl._M_start + $i)
            set $i++
        end
      end
    end
    if $argc >0
        printf "Vector size = %u\n", $size
        printf "Vector capacity = %u\n", $capacity
        printf "Element "
        whatis $arg0._M_impl._M_start
    end
end

document pvector
    Prints std::vectorinformation.
    Syntax: pvectorNote: idx, idx1 and idx2 must be in acceptable range [0...size()-1].
    Examples:

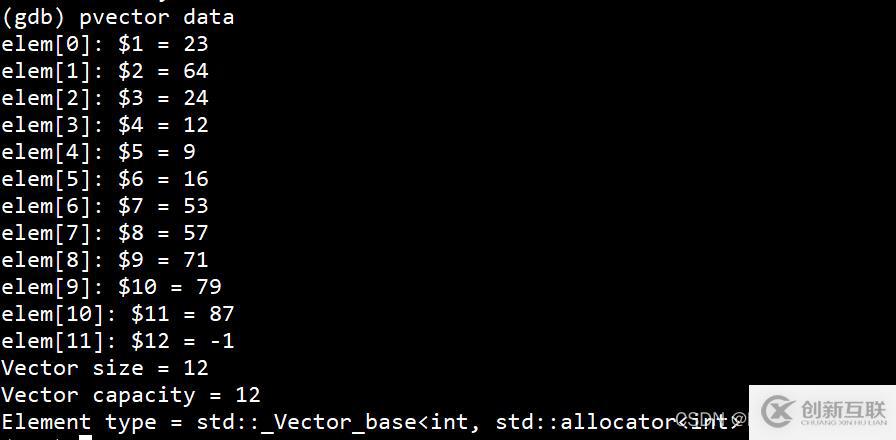

    pvector v - Prints vector content, size, capacity and T typedef
    pvector v 0 - Prints element[idx] from vector
    pvector v 1 2 - Prints elements in range [idx1..idx2] from vector
end

#
# std::list<>#

define plist
    if $argc == 0
        help plist
    else
        set $head = &$arg0._M_impl._M_node
        set $current = $arg0._M_impl._M_node._M_next
        set $size = 0
        while $current != $head
            if $argc == 2
                printf "elem[%u]: ", $size
                p *($arg1*)($current + 1)
            end
            if $argc == 3
                if $size == $arg2
                    printf "elem[%u]: ", $size
                    p *($arg1*)($current + 1)
                end
            end
            set $current = $current._M_next
            set $size++
        end
        printf "List size = %u \n", $size
        if $argc == 1
            printf "List "
            whatis $arg0
            printf "Use plistto see the elements in the list.\n"
        end
    end
end

document plist
    Prints std::listinformation.
    Syntax: plist: Prints list size, if T defined all elements or just element at idx
    Examples:
    plist l - prints list size and definition
    plist l int - prints all elements and list size
    plist l int 2 - prints the third element in the list (if exists) and list size
end

define plist_member
    if $argc == 0
        help plist_member
    else
        set $head = &$arg0._M_impl._M_node
        set $current = $arg0._M_impl._M_node._M_next
        set $size = 0
        while $current != $head
            if $argc == 3
                printf "elem[%u]: ", $size
                p (*($arg1*)($current + 1)).$arg2
            end
            if $argc == 4
                if $size == $arg3
                    printf "elem[%u]: ", $size
                    p (*($arg1*)($current + 1)).$arg2
                end
            end
            set $current = $current._M_next
            set $size++
        end
        printf "List size = %u \n", $size
        if $argc == 1
            printf "List "
            whatis $arg0
            printf "Use plist_memberto see the elements in the list.\n"
        end
    end
end

document plist_member
    Prints std::listinformation.
    Syntax: plist: Prints list size, if T defined all elements or just element at idx
    Examples:
    plist_member l int member - prints all elements and list size
    plist_member l int member 2 - prints the third element in the list (if exists) and list size
end


#
# std::map and std::multimap
#

define pmap
    if $argc == 0
        help pmap
    else
        set $tree = $arg0
        set $i = 0
        set $node = $tree._M_t._M_impl._M_header._M_left
        set $end = $tree._M_t._M_impl._M_header
        set $tree_size = $tree._M_t._M_impl._M_node_count
        if $argc == 1
            printf "Map "
            whatis $tree
            printf "Use pmapto see the elements in the map.\n"
        end
        if $argc == 3
            while $i< $tree_size
                set $value = (void *)($node + 1)
                printf "elem[%u].left: ", $i
                p *($arg1*)$value
                set $value = $value + sizeof($arg1)
                printf "elem[%u].right: ", $i
                p *($arg2*)$value
                if $node._M_right != 0
                    set $node = $node._M_right
                    while $node._M_left != 0
                        set $node = $node._M_left
                    end
                else
                    set $tmp_node = $node._M_parent
                    while $node == $tmp_node._M_right
                        set $node = $tmp_node
                        set $tmp_node = $tmp_node._M_parent
                    end
                    if $node._M_right != $tmp_node
                        set $node = $tmp_node
                    end
                end
                set $i++
            end
        end
        if $argc == 4
            set $idx = $arg3
            set $ElementsFound = 0
            while $i< $tree_size
                set $value = (void *)($node + 1)
                if *($arg1*)$value == $idx
                    printf "elem[%u].left: ", $i
                    p *($arg1*)$value
                    set $value = $value + sizeof($arg1)
                    printf "elem[%u].right: ", $i
                    p *($arg2*)$value
                    set $ElementsFound++
                end
                if $node._M_right != 0
                    set $node = $node._M_right
                    while $node._M_left != 0
                        set $node = $node._M_left
                    end
                else
                    set $tmp_node = $node._M_parent
                    while $node == $tmp_node._M_right
                        set $node = $tmp_node
                        set $tmp_node = $tmp_node._M_parent
                    end
                    if $node._M_right != $tmp_node
                        set $node = $tmp_node
                    end
                end
                set $i++
            end
            printf "Number of elements found = %u\n", $ElementsFound
        end
        if $argc == 5
            set $idx1 = $arg3
            set $idx2 = $arg4
            set $ElementsFound = 0
            while $i< $tree_size
                set $value = (void *)($node + 1)
                set $valueLeft = *($arg1*)$value
                set $valueRight = *($arg2*)($value + sizeof($arg1))
                if $valueLeft == $idx1 && $valueRight == $idx2
                    printf "elem[%u].left: ", $i
                    p $valueLeft
                    printf "elem[%u].right: ", $i
                    p $valueRight
                    set $ElementsFound++
                end
                if $node._M_right != 0
                    set $node = $node._M_right
                    while $node._M_left != 0
                        set $node = $node._M_left
                    end
                else
                    set $tmp_node = $node._M_parent
                    while $node == $tmp_node._M_right
                        set $node = $tmp_node
                        set $tmp_node = $tmp_node._M_parent
                    end
                    if $node._M_right != $tmp_node
                        set $node = $tmp_node
                    end
                end
                set $i++
            end
            printf "Number of elements found = %u\n", $ElementsFound
        end
        printf "Map size = %u\n", $tree_size
    end
end

document pmap
    Prints std::mapor std::multimapinformation. Works for std::multimap as well.
    Syntax: pmap: Prints map size, if T defined all elements or just element(s) with val(s)
    Examples:
    pmap m - prints map size and definition
    pmap m int int - prints all elements and map size
    pmap m int int 20 - prints the element(s) with left-value = 20 (if any) and map size
    pmap m int int 20 200 - prints the element(s) with left-value = 20 and right-value = 200 (if any) and map size
end


define pmap_member
    if $argc == 0
        help pmap_member
    else
        set $tree = $arg0
        set $i = 0
        set $node = $tree._M_t._M_impl._M_header._M_left
        set $end = $tree._M_t._M_impl._M_header
        set $tree_size = $tree._M_t._M_impl._M_node_count
        if $argc == 1
            printf "Map "
            whatis $tree
            printf "Use pmapto see the elements in the map.\n"
        end
        if $argc == 5
            while $i< $tree_size
                set $value = (void *)($node + 1)
                printf "elem[%u].left: ", $i
                p (*($arg1*)$value).$arg2
                set $value = $value + sizeof($arg1)
                printf "elem[%u].right: ", $i
                p (*($arg3*)$value).$arg4
                if $node._M_right != 0
                    set $node = $node._M_right
                    while $node._M_left != 0
                        set $node = $node._M_left
                    end
                else
                    set $tmp_node = $node._M_parent
                    while $node == $tmp_node._M_right
                        set $node = $tmp_node
                        set $tmp_node = $tmp_node._M_parent
                    end
                    if $node._M_right != $tmp_node
                        set $node = $tmp_node
                    end
                end
                set $i++
            end
        end
        if $argc == 6
            set $idx = $arg5
            set $ElementsFound = 0
            while $i< $tree_size
                set $value = (void *)($node + 1)
                if *($arg1*)$value == $idx
                    printf "elem[%u].left: ", $i
                    p (*($arg1*)$value).$arg2
                    set $value = $value + sizeof($arg1)
                    printf "elem[%u].right: ", $i
                    p (*($arg3*)$value).$arg4
                    set $ElementsFound++
                end
                if $node._M_right != 0
                    set $node = $node._M_right
                    while $node._M_left != 0
                        set $node = $node._M_left
                    end
                else
                    set $tmp_node = $node._M_parent
                    while $node == $tmp_node._M_right
                        set $node = $tmp_node
                        set $tmp_node = $tmp_node._M_parent
                    end
                    if $node._M_right != $tmp_node
                        set $node = $tmp_node
                    end
                end
                set $i++
            end
            printf "Number of elements found = %u\n", $ElementsFound
        end
        printf "Map size = %u\n", $tree_size
    end
end

document pmap_member
    Prints std::mapor std::multimapinformation. Works for std::multimap as well.
    Syntax: pmap: Prints map size, if T defined all elements or just element(s) with val(s)
    Examples:
    pmap_member m class1 member1 class2 member2 - prints class1.member1 : class2.member2
    pmap_member m class1 member1 class2 member2 lvalue - prints class1.member1 : class2.member2 where class1 == lvalue
end


#
# std::set and std::multiset
#

define pset
    if $argc == 0
        help pset
    else
        set $tree = $arg0
        set $i = 0
        set $node = $tree._M_t._M_impl._M_header._M_left
        set $end = $tree._M_t._M_impl._M_header
        set $tree_size = $tree._M_t._M_impl._M_node_count
        if $argc == 1
            printf "Set "
            whatis $tree
            printf "Use psetto see the elements in the set.\n"
        end
        if $argc == 2
            while $i< $tree_size
                set $value = (void *)($node + 1)
                printf "elem[%u]: ", $i
                p *($arg1*)$value
                if $node._M_right != 0
                    set $node = $node._M_right
                    while $node._M_left != 0
                        set $node = $node._M_left
                    end
                else
                    set $tmp_node = $node._M_parent
                    while $node == $tmp_node._M_right
                        set $node = $tmp_node
                        set $tmp_node = $tmp_node._M_parent
                    end
                    if $node._M_right != $tmp_node
                        set $node = $tmp_node
                    end
                end
                set $i++
            end
        end
        if $argc == 3
            set $idx = $arg2
            set $ElementsFound = 0
            while $i< $tree_size
                set $value = (void *)($node + 1)
                if *($arg1*)$value == $idx
                    printf "elem[%u]: ", $i
                    p *($arg1*)$value
                    set $ElementsFound++
                end
                if $node._M_right != 0
                    set $node = $node._M_right
                    while $node._M_left != 0
                        set $node = $node._M_left
                    end
                else
                    set $tmp_node = $node._M_parent
                    while $node == $tmp_node._M_right
                        set $node = $tmp_node
                        set $tmp_node = $tmp_node._M_parent
                    end
                    if $node._M_right != $tmp_node
                        set $node = $tmp_node
                    end
                end
                set $i++
            end
            printf "Number of elements found = %u\n", $ElementsFound
        end
        printf "Set size = %u\n", $tree_size
    end
end

document pset
    Prints std::setor std::multisetinformation. Works for std::multiset as well.
    Syntax: pset: Prints set size, if T defined all elements or just element(s) having val
    Examples:
    pset s - prints set size and definition
    pset s int - prints all elements and the size of s
    pset s int 20 - prints the element(s) with value = 20 (if any) and the size of s
end



#
# std::dequeue
#

define pdequeue
    if $argc == 0
        help pdequeue
    else
        set $size = 0
        set $start_cur = $arg0._M_impl._M_start._M_cur
        set $start_last = $arg0._M_impl._M_start._M_last
        set $start_stop = $start_last
        while $start_cur != $start_stop
            p *$start_cur
            set $start_cur++
            set $size++
        end
        set $finish_first = $arg0._M_impl._M_finish._M_first
        set $finish_cur = $arg0._M_impl._M_finish._M_cur
        set $finish_last = $arg0._M_impl._M_finish._M_last
        if $finish_cur< $finish_last
            set $finish_stop = $finish_cur
        else
            set $finish_stop = $finish_last
        end
        while $finish_first != $finish_stop
            p *$finish_first
            set $finish_first++
            set $size++
        end
        printf "Dequeue size = %u\n", $size
    end
end

document pdequeue
    Prints std::dequeueinformation.
    Syntax: pdequeue: Prints dequeue size, if T defined all elements
    Deque elements are listed "left to right" (left-most stands for front and right-most stands for back)
    Example:
    pdequeue d - prints all elements and size of d
end



#
# std::stack
#

define pstack
    if $argc == 0
        help pstack
    else
        set $start_cur = $arg0.c._M_impl._M_start._M_cur
        set $finish_cur = $arg0.c._M_impl._M_finish._M_cur
        set $size = $finish_cur - $start_cur
        set $i = $size - 1
        while $i >= 0
            p *($start_cur + $i)
            set $i--
        end
        printf "Stack size = %u\n", $size
    end
end

document pstack
    Prints std::stackinformation.
    Syntax: pstack: Prints all elements and size of the stack
    Stack elements are listed "top to buttom" (top-most element is the first to come on pop)
    Example:
    pstack s - prints all elements and the size of s
end



#
# std::queue
#

define pqueue
    if $argc == 0
        help pqueue
    else
        set $start_cur = $arg0.c._M_impl._M_start._M_cur
        set $finish_cur = $arg0.c._M_impl._M_finish._M_cur
        set $size = $finish_cur - $start_cur
        set $i = 0
        while $i< $size
            p *($start_cur + $i)
            set $i++
        end
        printf "Queue size = %u\n", $size
    end
end

document pqueue
    Prints std::queueinformation.
    Syntax: pqueue: Prints all elements and the size of the queue
    Queue elements are listed "top to bottom" (top-most element is the first to come on pop)
    Example:
    pqueue q - prints all elements and the size of q
end



#
# std::priority_queue
#

define ppqueue
    if $argc == 0
        help ppqueue
    else
        set $size = $arg0.c._M_impl._M_finish - $arg0.c._M_impl._M_start
        set $capacity = $arg0.c._M_impl._M_end_of_storage - $arg0.c._M_impl._M_start
        set $i = $size - 1
        while $i >= 0
            p *($arg0.c._M_impl._M_start + $i)
            set $i--
        end
        printf "Priority queue size = %u\n", $size
        printf "Priority queue capacity = %u\n", $capacity
    end
end

document ppqueue
    Prints std::priority_queueinformation.
    Syntax: ppqueue: Prints all elements, size and capacity of the priority_queue
    Priority_queue elements are listed "top to buttom" (top-most element is the first to come on pop)
    Example:
    ppqueue pq - prints all elements, size and capacity of pq
end



#
# std::bitset
#

define pbitset
    if $argc == 0
        help pbitset
    else
        p /t $arg0._M_w
    end
end

document pbitset
    Prints std::bitsetinformation.
    Syntax: pbitset: Prints all bits in bitset
    Example:
    pbitset b - prints all bits in b
end



#
# std::string
#

define pstring
    if $argc == 0
        help pstring
    else
        printf "String \t\t\t= \"%s\"\n", $arg0._M_data()
        printf "String size/length \t= %u\n", $arg0._M_rep()._M_length
        printf "String capacity \t= %u\n", $arg0._M_rep()._M_capacity
        printf "String ref-count \t= %d\n", $arg0._M_rep()._M_refcount
    end
end

document pstring
    Prints std::string information.
    Syntax: pstringExample:
    pstring s - Prints content, size/length, capacity and ref-count of string s
end

#
# std::wstring
#

define pwstring
    if $argc == 0
        help pwstring
    else
        call printf("WString \t\t= \"%ls\"\n", $arg0._M_data())
        printf "WString size/length \t= %u\n", $arg0._M_rep()._M_length
        printf "WString capacity \t= %u\n", $arg0._M_rep()._M_capacity
        printf "WString ref-count \t= %d\n", $arg0._M_rep()._M_refcount
    end
end

document pwstring
    Prints std::wstring information.
    Syntax: pwstringExample:
    pwstring s - Prints content, size/length, capacity and ref-count of wstring s
end

#
# C++ related beautifiers (optional)
#

set print pretty on
set print object on
set print static-members on
set print vtbl on
set print demangle on
set demangle-style gnu-v3
set print sevenbit-strings off
  1. 在啟動gdb時，輸入source [腳本所在位置]/stl_views_1.0.3.gdb來啟用這個工具

我將文件放在了~/目錄下，啟動gdb后，輸入以下內容：

source ~/stl_views_1.0.3.gdb

在這里插入圖片描述
如果不想每次啟動gdb都要手動輸入source ~/stl_views_1.0.3.gdb讀取腳本，可以將上面stl_views_1.0.3.gdb的內容直接拷貝到.gdbinit文件中，具體操作可以看后面的第二大點

  1. 例如，有一個std::vector類型的data，通過以下命令可以打印出vector的內容
pvector data

在這里插入圖片描述
同樣的，可以通過pmap，pset，plist…等等來打印STL容器的內容，方便調試。

2 .gdbinit文件

gdb在啟動的時候，會在你的當前工作目錄下查找 “.gdbinit” 這個文件，并把它的內容作為gdb命令進行解釋

  1. 在/home/xxx下添加一個.gdbinit， gdb每次啟動時，它都會執行這個文件中的命令來進行初始化。
  2. 下面有一個我認為比較好用的gdb，可以直接拷貝到用戶目錄下的./gdbinit文件中對gdb進行配置
# 保存歷史命令
#set history filename ./.gdb_history
#set history save on

# 記錄執行g(shù)db的過程
#set logging file ./.log.txt
#set logging on

# 退出時不顯示提示信息
#set confirm off

# 將地址的顏色改成紅色
#set style address foreground red

# 打印數組的索引下標
set print array-indexes on

# 每行打印一個結構體成員
set print pretty on

# 退出并保留斷點
define qbp
save breakpoints ./.gdb_bp
quit
end
document qbp
Exit and save the breakpoint
end

# 保留歷史工作斷點
define downbp
save breakpoints ./.gdb_bp
end
document downbp
Save the historical work breakpoint
end

# 加載歷史工作斷點
define loadbp
source ./.gdb_bp
end
document loadbp
Load the historical work breakpoint
end
  1. 保存退出后，在該用戶下進行g(shù)db調試，就會自動啟用.gdbinit文件中的這些配置啦

你是否還在尋找穩定的海外服務器提供商？創新互聯www.cdcxhl.cn海外機房具備T級流量清洗系統配攻擊溯源，準確流量調度確保服務器高可用性，企業級服務器適合批量采購，新人活動首月15元起，快前往官網查看詳情吧

當前標題：【gdb配置】打印stl容器，.gdbinit文件-創新互聯
分享路徑：http://jinyejixie.com/article48/cspphp.html

成都網站建設公司_創新互聯，為您提供App開發、外貿網站建設、用戶體驗、服務器托管、網站建設、建站公司

廣告

聲明：本網站發布的內容（圖片、視頻和文字）以用戶投稿、用戶轉載內容為主，如果涉及侵權請盡快告知，我們將會在第一時間刪除。文章觀點不代表本網站立場，如需處理請聯系客服。電話：028-86922220；郵箱：631063699@qq.com。內容未經允許不得轉載，或轉載時需注明來源： 創新互聯

手機網站建設
湘潭市| 祁门县| 龙南县| 城口县| 婺源县| 电白县| 出国| 石渠县| 河津市| 专栏| 余干县| 普洱| 从化市| 安福县| 兰西县| 辛集市| 仁化县| 汽车| 凤山县| 同心县| 泗洪县| 静海县| 重庆市| 武夷山市| 巴彦县| 水城县| 桐乡市| 华蓥市| 嘉义市| 河东区| 吉林省| 清流县| 汉川市| 临邑县| 张掖市| 嘉善县| 昌乐县| 虹口区| 柳林县| 淮南市| 莆田市|
