在android support.v4 中有一個抽屜視圖控件DrawerLayout。使用這個控件,可以生成通過在屏幕上水平滑動打開或者關閉菜單,能給用戶一個不錯的體驗效果。
最近在項目中,設計中有用到這個效果,但是是左右兩邊都能劃出這樣的一個菜單效果。經過使用發現,在xml布局中和代碼中,幾乎是添加添加同樣的代碼,就可以實現這種作用兩種菜單的效果。
效果圖如下:

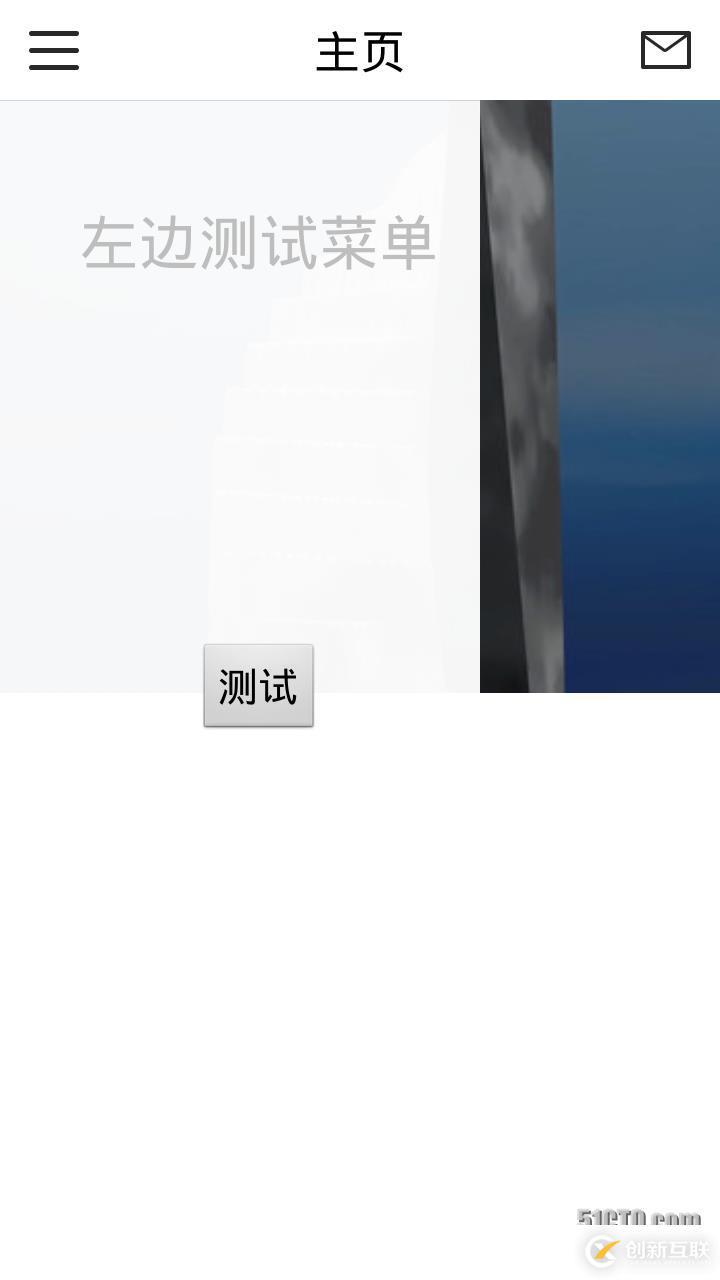

左邊拉出菜單:

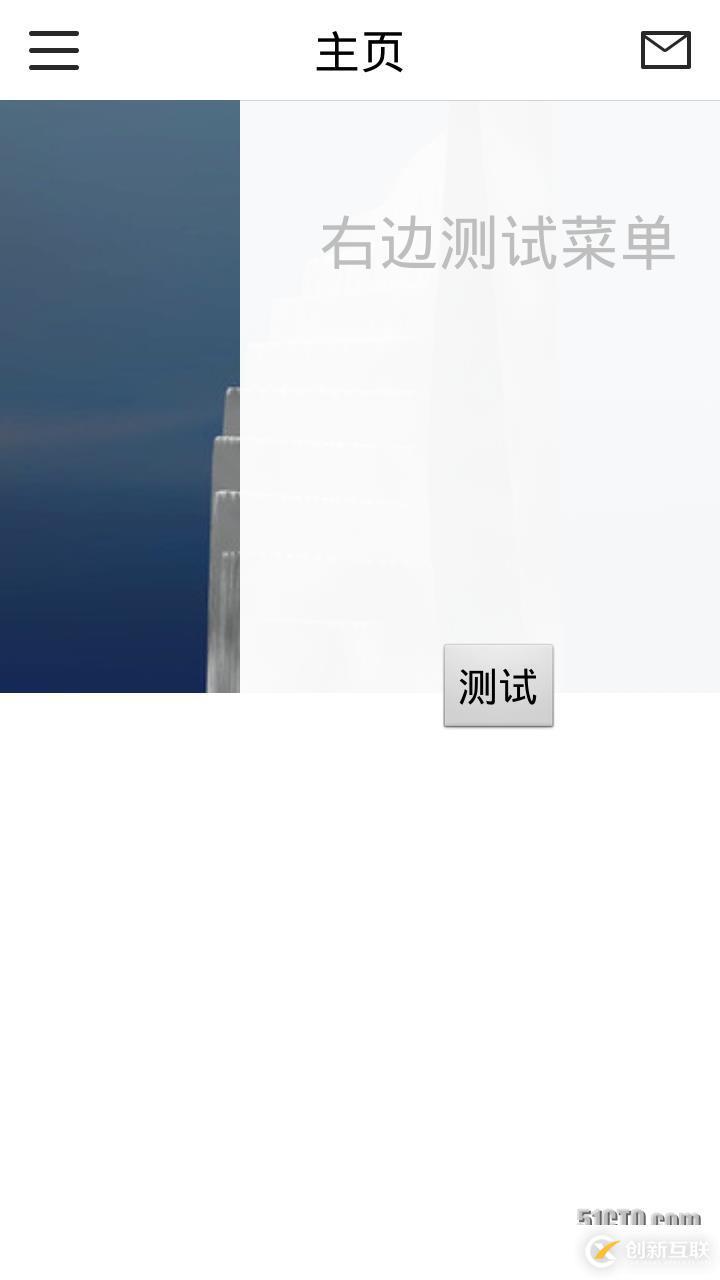

右邊拉出菜單效果:
具體的實現方法如下,結合代碼文件,跟大家分享一下:
主頁布局文件:
<?xml version="1.0" encoding="utf-8"?> <android.support.v4.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:id="@+id/main_drawer_layout" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@android:color/transparent" > <RelativeLayout android:id="@+id/main_content_frame_parent" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@android:color/transparent" > <!-- 下層顯示的主要內容 --> <FrameLayout android:id="@+id/main_content_frame" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@android:color/white" android:scrollbars="vertical" > </FrameLayout> </RelativeLayout> <!-- 左側滑動欄 --> <RelativeLayout android:id="@+id/main_left_drawer_layout" android:layout_width="240dp" android:layout_height="match_parent" android:layout_gravity="start" android:background="@android:color/transparent" android:paddingTop="50dp" > </RelativeLayout> <!-- 右側滑動欄 --> <RelativeLayout android:id="@+id/main_right_drawer_layout" android:layout_width="240dp" android:layout_height="match_parent" android:layout_gravity="end" android:background="@android:color/transparent" android:paddingTop="50dp" > </RelativeLayout> </android.support.v4.widget.DrawerLayout>
如上,使用DrawerLayout需要在布局文件跟目錄中引用,v4包中的DrawerLayout標簽,并且寬和高,都設置為match_parent.里面framelayout用來現實菜單收起時,下層頁面的布局。
而main_left_drawer_layout和main_right_drawer_layout為左右兩個抽屜菜單對應的父layout,需要注意的是,在DrawerLayout中,從左側開始使用android:layout_gravity="start",從右側開始,使用 android:layout_gravity="end"。
b.主布局代碼文件:
package com.demo.drawlayout; import android.os.Bundle; import android.support.v4.app.ActionBarDrawerToggle; import android.support.v4.app.FragmentActivity; import android.support.v4.app.FragmentManager; import android.support.v4.app.FragmentTransaction; import android.support.v4.widget.DrawerLayout; import android.view.View; import android.widget.RelativeLayout; import android.widget.TextView; public class MainFrameLayout extends FragmentActivity { // 抽屜菜單對象 private ActionBarDrawerToggle drawerbar; public DrawerLayout drawerLayout; private TestFragment testFragment; private RelativeLayout left_menu_layout, right_xiaoxi_layout; private TextView text; @Override protected void onCreate(Bundle arg0) { super.onCreate(arg0); setContentView(R.layout.main_frame_activity); initView(); initEvent(); } public void initView(){ testFragment = new TestFragment(); FragmentManager fragmentManager = getSupportFragmentManager(); FragmentTransaction f_transaction = fragmentManager.beginTransaction(); f_transaction.replace(R.id.main_content_frame_parent, testFragment); f_transaction.commitAllowingStateLoss(); initLeftLayout(); initRightLayout(); } public void initLeftLayout(){ drawerLayout = (DrawerLayout) findViewById(R.id.main_drawer_layout); //設置透明 drawerLayout.setScrimColor(0x00000000); //左邊菜單 left_menu_layout = (RelativeLayout) findViewById(R.id.main_left_drawer_layout); View view2 = getLayoutInflater().inflate(R.layout.menu_layout, null); text=(TextView)view2.findViewById(R.id.text); text.setText("左邊測試菜單"); left_menu_layout.addView(view2); } public void initRightLayout(){ //左邊菜單 right_xiaoxi_layout = (RelativeLayout) findViewById(R.id.main_right_drawer_layout); View view = getLayoutInflater().inflate(R.layout.xiaoxi_layout, null); text=(TextView)view.findViewById(R.id.text); text.setText("右邊測試菜單"); right_xiaoxi_layout.addView(view); } private void initEvent() { drawerbar = new ActionBarDrawerToggle(this, drawerLayout, R.drawable.ic_launcher, R.string.open, R.string.close) { //菜單打開 @Override public void onDrawerOpened(View drawerView) { super.onDrawerOpened(drawerView); } // 菜單關閉 @Override public void onDrawerClosed(View drawerView) { super.onDrawerClosed(drawerView); } }; drawerLayout.setDrawerListener(drawerbar); } //左邊菜單開關事件 public void openLeftLayout() { if (drawerLayout.isDrawerOpen(left_menu_layout)) { drawerLayout.closeDrawer(left_menu_layout); } else { drawerLayout.openDrawer(left_menu_layout); } } // 右邊菜單開關事件 public void openRightLayout() { if (drawerLayout.isDrawerOpen(right_xiaoxi_layout)) { drawerLayout.closeDrawer(right_xiaoxi_layout); } else { drawerLayout.openDrawer(right_xiaoxi_layout); } } }
代碼很簡單,相應的地方都有注釋。這里就不羅嗦了。
主要說一下:抽屜菜單的開關事件就是,把抽屜視圖添加到ActionBarDrawerToggle開關中,通關它的開關事件來控制菜單的打開和關閉,同樣,一個菜單需要注冊一個事件,兩個菜單,也是把菜單加到這個ActionBarDrawerToggle 中進行管理。它會自行處理左右兩個菜單的打開和關閉,而不會出現同時打開的現象,這一點這個控件設計的還是挺棒的。
余下的工作,就是大家根據自己的需要,自己寫左右菜單里面的內容和事件了。另外,以前看到一個帖子說,在DrawerLayout中使用listview,listview會無效,這個說法好像是不成立的,至少,在我們的項目中,菜單中添加listview或者其他常用控件,點擊事件都不會受到影響。
相關的代碼我添加在了附件中,感興趣的朋友,可以下載互相學習一下。
