效
果
演
示
效果演示
效果演示
Geckolib Model Settings
并點擊將模型轉換為Block/Item

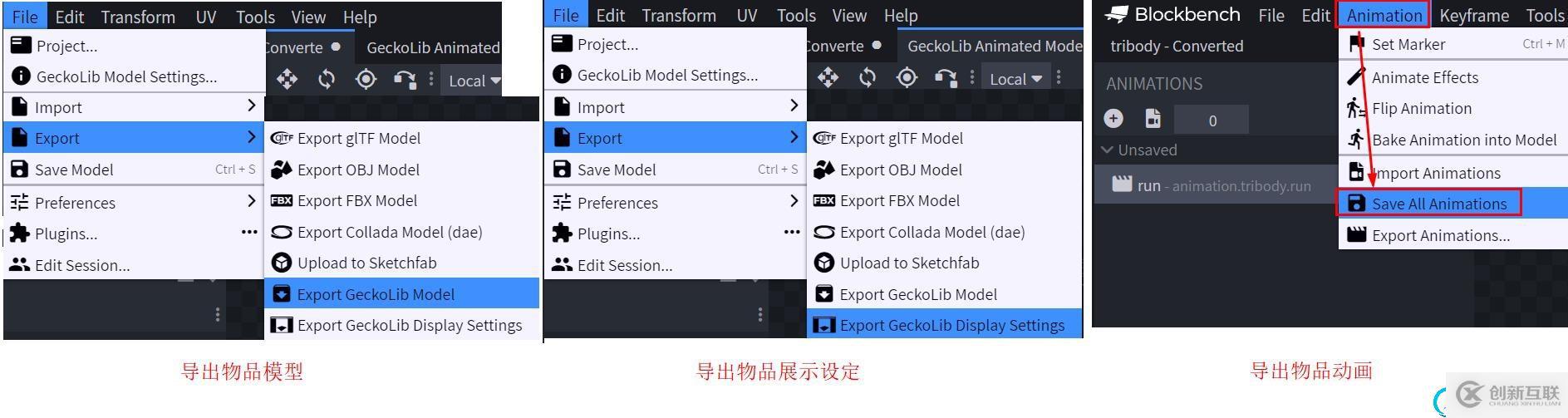

:之后導出物品模型文件,動畫文件,展示文件:將這些文件分別放入到resources包中的如下位置:2.在items包中新建一個我們的物品類ItemTribody:ItemTribody.java
package com.joy187.re8joymod.items;
import com.joy187.re8joymod.Main;
import com.joy187.re8joymod.items.render.RenderTribody;
import net.minecraft.client.renderer.BlockEntityWithoutLevelRenderer;
import net.minecraft.world.item.Item;
import net.minecraftforge.client.extensions.common.IClientItemExtensions;
import software.bernie.example.GeckoLibMod;
import software.bernie.example.client.renderer.item.PistolRender;
import software.bernie.geckolib3.core.AnimationState;
import software.bernie.geckolib3.core.IAnimatable;
import software.bernie.geckolib3.core.PlayState;
import software.bernie.geckolib3.core.builder.AnimationBuilder;
import software.bernie.geckolib3.core.builder.ILoopType;
import software.bernie.geckolib3.core.controller.AnimationController;
import software.bernie.geckolib3.core.event.predicate.AnimationEvent;
import software.bernie.geckolib3.core.manager.AnimationData;
import software.bernie.geckolib3.core.manager.AnimationFactory;
import software.bernie.geckolib3.network.GeckoLibNetwork;
import software.bernie.geckolib3.network.ISyncable;
import software.bernie.geckolib3.util.GeckoLibUtil;
import java.util.function.Consumer;
public class ItemTribody extends Item implements IAnimatable {public AnimationFactory factory = new AnimationFactory(this);
public ItemTribody() {super(new Item.Properties().tab(Main.TUTORIAL_TAB).stacksTo(1));
}
@Override
public void initializeClient(Consumerconsumer) {super.initializeClient(consumer);
consumer.accept(new IClientItemExtensions() {//物品渲染類
private final BlockEntityWithoutLevelRenderer renderer = new RenderTribody();
@Override
public BlockEntityWithoutLevelRenderer getCustomRenderer() {return renderer;
}
});
}
//動畫控制器
@Override
public void registerControllers(AnimationData data) {data.addAnimationController(new AnimationController(this, "controller",
0, this::predicate));
}
//動畫播放設定
privatePlayState predicate(AnimationEventevent) {//這里我們默認循環播放名為"animation.tribody.run"的動畫
event.getController().setAnimation(new AnimationBuilder().addAnimation("animation.tribody.run", true));
return PlayState.CONTINUE;
}
@Override
public AnimationFactory getFactory() {return this.factory;
}
}
在ItemInit類中將我們的物品進行注冊:ItemInit.java
public static RegistryObject- DROP = register("tribody",()->{return new ItemTribody();
});
3.在Item包中新建一個model包,model包中新建一個物品模型類ModelTribody,用于指定我們的物品模型:ModelTribody.java
package com.joy187.re8joymod.items.model;
import com.joy187.re8joymod.Main;
import com.joy187.re8joymod.items.ItemTribody;
import net.minecraft.resources.ResourceLocation;
import software.bernie.geckolib3.model.AnimatedGeoModel;
public class ModelTribody extends AnimatedGeoModel{//模型文件在資源包中的路徑
@Override
public ResourceLocation getModelResource(ItemTribody object) {return new ResourceLocation(Main.MOD_ID, "geo/tribody.geo.json");
}
//貼圖文件在資源包中的路徑
@Override
public ResourceLocation getTextureResource(ItemTribody object) {return new ResourceLocation(Main.MOD_ID, "textures/item/drop2.png");
}
//動畫文件在資源包中的路徑
@Override
public ResourceLocation getAnimationResource(ItemTribody animatable) {return new ResourceLocation(Main.MOD_ID, "animations/tribody.animation.json");
}
}
4.在Item包中新建一個render包,包中新建類RenderTribody,用于指定我們的物品渲染:RenderTribody.java
package com.joy187.re8joymod.items.render;
import com.joy187.re8joymod.items.ItemTribody;
import com.joy187.re8joymod.items.model.ModelTribody;
import software.bernie.geckolib3.renderers.geo.GeoItemRenderer;
public class RenderTribody extends GeoItemRenderer{public RenderTribody() {//里面?zhèn)魅肷弦徊街械奈锲纺P皖?lèi)
super(new ModelTribody());
}
}
5.代碼部分完成,由于第一步中我們已經將各種文件放好了,所以只需要在資源包的lang文件夾中添加物品的英文、中文名稱:en_us.json
"item.re8joymod.tribody": "Drop",
中文名稱zh_cn.json
"item.re8joymod.tribody": "水滴",
6.保存所有代碼文件,運行游戲:
當我們把物品拿在手上:本次演示物品的動畫模型文件(參照第一步放入geo包):tribody.geo.json
{"format_version": "1.12.0",
"minecraft:geometry": [
{ "description": { "identifier": "geometry.tribody - Converted",
"texture_width": 16,
"texture_height": 16,
"visible_bounds_width": 2,
"visible_bounds_height": 2.5,
"visible_bounds_offset": [0, 0.75, 0]
},
"bones": [
{"name": "Drop",
"pivot": [-1, 4, 2]
},
{"name": "drop3",
"parent": "Drop",
"pivot": [-8, 8, 8],
"cubes": [
{ "origin": [-1, 4.5, -7.5],
"size": [0.5, 0.5, 1],
"uv": { "north": {"uv": [8, 1], "uv_size": [-0.5, 0.5]},
"east": {"uv": [7.5, 15.5], "uv_size": [0.5, -14.5]},
"south": {"uv": [7.5, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [7.5, 1], "uv_size": [0.5, 14.5]},
"up": {"uv": [8, 15.5], "uv_size": [-0.5, -14.5]},
"down": {"uv": [8, 15.5], "uv_size": [-0.5, -14.5]}
}
},
{ "origin": [-1, 5, -6.5],
"size": [0.5, 0.5, 14],
"uv": { "north": {"uv": [8.5, 1.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [8, 15.5], "uv_size": [0.5, -14]},
"south": {"uv": [8, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [8, 1.5], "uv_size": [0.5, 14]},
"up": {"uv": [8.5, 15.5], "uv_size": [-0.5, -14]},
"down": {"uv": [8.5, 15.5], "uv_size": [-0.5, -14]}
}
},
{ "origin": [-1, 4, -5.5],
"size": [0.5, 0.5, 13],
"uv": { "north": {"uv": [7.5, 2.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [7, 15.5], "uv_size": [0.5, -13]},
"south": {"uv": [7, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [7, 2.5], "uv_size": [0.5, 13]},
"up": {"uv": [7.5, 15.5], "uv_size": [-0.5, -13]},
"down": {"uv": [7.5, 15.5], "uv_size": [-0.5, -13]}
}
},
{ "origin": [-1, 5.5, -5],
"size": [0.5, 0.5, 12.5],
"uv": { "north": {"uv": [9, 3], "uv_size": [-0.5, 0.5]},
"east": {"uv": [8.5, 15.5], "uv_size": [0.5, -12.5]},
"south": {"uv": [8.5, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [8.5, 3], "uv_size": [0.5, 12.5]},
"up": {"uv": [9, 15.5], "uv_size": [-0.5, -12.5]},
"down": {"uv": [9, 15.5], "uv_size": [-0.5, -12.5]}
}
},
{ "origin": [-1, 3.5, -4],
"size": [0.5, 0.5, 11.5],
"uv": { "north": {"uv": [7, 4], "uv_size": [-0.5, 0.5]},
"east": {"uv": [6.5, 15.5], "uv_size": [0.5, -11.5]},
"south": {"uv": [6.5, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [6.5, 4], "uv_size": [0.5, 11.5]},
"up": {"uv": [7, 15.5], "uv_size": [-0.5, -11.5]},
"down": {"uv": [7, 15.5], "uv_size": [-0.5, -11.5]}
}
},
{ "origin": [-1, 6, -3.5],
"size": [0.5, 0.5, 11],
"uv": { "north": {"uv": [9.5, 4.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [9, 15.5], "uv_size": [0.5, -11]},
"south": {"uv": [9, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [9, 4.5], "uv_size": [0.5, 11]},
"up": {"uv": [9.5, 15.5], "uv_size": [-0.5, -11]},
"down": {"uv": [9.5, 15.5], "uv_size": [-0.5, -11]}
}
},
{ "origin": [-1, 3, -2.5],
"size": [0.5, 0.5, 9.5],
"uv": { "north": {"uv": [6.5, 5.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [6, 15], "uv_size": [0.5, -9.5]},
"south": {"uv": [6, 14.5], "uv_size": [0.5, 0.5]},
"west": {"uv": [6, 5.5], "uv_size": [0.5, 9.5]},
"up": {"uv": [6.5, 15], "uv_size": [-0.5, -9.5]},
"down": {"uv": [6.5, 15], "uv_size": [-0.5, -9.5]}
}
},
{ "origin": [-1, 6.5, -2],
"size": [0.5, 0.5, 9],
"uv": { "north": {"uv": [10, 6], "uv_size": [-0.5, 0.5]},
"east": {"uv": [9.5, 15], "uv_size": [0.5, -9]},
"south": {"uv": [9.5, 14.5], "uv_size": [0.5, 0.5]},
"west": {"uv": [9.5, 6], "uv_size": [0.5, 9]},
"up": {"uv": [10, 15], "uv_size": [-0.5, -9]},
"down": {"uv": [10, 15], "uv_size": [-0.5, -9]}
}
},
{ "origin": [-1, 2.5, -1],
"size": [0.5, 0.5, 7.5],
"uv": { "north": {"uv": [6, 7], "uv_size": [-0.5, 0.5]},
"east": {"uv": [5.5, 14.5], "uv_size": [0.5, -7.5]},
"south": {"uv": [5.5, 14], "uv_size": [0.5, 0.5]},
"west": {"uv": [5.5, 7], "uv_size": [0.5, 7.5]},
"up": {"uv": [6, 14.5], "uv_size": [-0.5, -7.5]},
"down": {"uv": [6, 14.5], "uv_size": [-0.5, -7.5]}
}
},
{ "origin": [-1, 7, 0],
"size": [0.5, 0.5, 6.5],
"uv": { "north": {"uv": [10.5, 8], "uv_size": [-0.5, 0.5]},
"east": {"uv": [10, 14.5], "uv_size": [0.5, -6.5]},
"south": {"uv": [10, 14], "uv_size": [0.5, 0.5]},
"west": {"uv": [10, 8], "uv_size": [0.5, 6.5]},
"up": {"uv": [10.5, 14.5], "uv_size": [-0.5, -6.5]},
"down": {"uv": [10.5, 14.5], "uv_size": [-0.5, -6.5]}
}
},
{ "origin": [-1, 2, 0.5],
"size": [0.5, 0.5, 5.5],
"uv": { "north": {"uv": [5.5, 8.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [5, 14], "uv_size": [0.5, -5.5]},
"south": {"uv": [5, 13.5], "uv_size": [0.5, 0.5]},
"west": {"uv": [5, 8.5], "uv_size": [0.5, 5.5]},
"up": {"uv": [5.5, 14], "uv_size": [-0.5, -5.5]},
"down": {"uv": [5.5, 14], "uv_size": [-0.5, -5.5]}
}
},
{ "origin": [-1, 7.5, 1.5],
"size": [0.5, 0.5, 5],
"uv": { "north": {"uv": [11, 9.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [10.5, 14.5], "uv_size": [0.5, -5]},
"south": {"uv": [10.5, 14], "uv_size": [0.5, 0.5]},
"west": {"uv": [10.5, 9.5], "uv_size": [0.5, 5]},
"up": {"uv": [11, 14.5], "uv_size": [-0.5, -5]},
"down": {"uv": [11, 14.5], "uv_size": [-0.5, -5]}
}
},
{ "origin": [-1, 1.5, 2],
"size": [0.5, 0.5, 3.5],
"uv": { "north": {"uv": [5, 10], "uv_size": [-0.5, 0.5]},
"east": {"uv": [4.5, 13.5], "uv_size": [0.5, -3.5]},
"south": {"uv": [4.5, 13], "uv_size": [0.5, 0.5]},
"west": {"uv": [4.5, 10], "uv_size": [0.5, 3.5]},
"up": {"uv": [5, 13.5], "uv_size": [-0.5, -3.5]},
"down": {"uv": [5, 13.5], "uv_size": [-0.5, -3.5]}
}
},
{ "origin": [-1, 8, 3],
"size": [0.5, 0.5, 2.5],
"uv": { "north": {"uv": [11.5, 11], "uv_size": [-0.5, 0.5]},
"east": {"uv": [11, 13.5], "uv_size": [0.5, -2.5]},
"south": {"uv": [11, 13], "uv_size": [0.5, 0.5]},
"west": {"uv": [11, 11], "uv_size": [0.5, 2.5]},
"up": {"uv": [11.5, 13.5], "uv_size": [-0.5, -2.5]},
"down": {"uv": [11.5, 13.5], "uv_size": [-0.5, -2.5]}
}
},
{ "origin": [-1, 1, 3.5],
"size": [0.5, 0.5, 0.5],
"uv": { "north": {"uv": [4.5, 11.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [4, 12], "uv_size": [0.5, -0.5]},
"south": {"uv": [4, 11.5], "uv_size": [0.5, 0.5]},
"west": {"uv": [4, 11.5], "uv_size": [0.5, 0.5]},
"up": {"uv": [4.5, 12], "uv_size": [-0.5, -0.5]},
"down": {"uv": [4.5, 12], "uv_size": [-0.5, -0.5]}
}
}
]
},
{"name": "drop2",
"parent": "Drop",
"pivot": [-8, 8, 8],
"cubes": [
{ "origin": [-1.5, 3.5, -4],
"size": [0.5, 2.5, 11.5],
"uv": { "north": {"uv": [8, 1], "uv_size": [-0.5, 0.5]},
"east": {"uv": [7.5, 1], "uv_size": [0.5, 14.5]},
"south": {"uv": [7.5, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [7.5, 1], "uv_size": [0.5, 14.5]},
"up": {"uv": [8, 1], "uv_size": [-0.5, 14.5]},
"down": {"uv": [8, 15.5], "uv_size": [-0.5, -14.5]}
}
},
{ "origin": [-1, 4.5, -6.5],
"size": [0.5, 0.5, 14],
"uv": { "north": {"uv": [8.5, 1.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [8, 1.5], "uv_size": [0.5, 14]},
"south": {"uv": [8, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [8, 1.5], "uv_size": [0.5, 14]},
"up": {"uv": [8.5, 1.5], "uv_size": [-0.5, 14]},
"down": {"uv": [8.5, 15.5], "uv_size": [-0.5, -14]}
}
},
{ "origin": [-2, 4, -3.5],
"size": [0.5, 1.5, 10],
"uv": { "north": {"uv": [7.5, 2.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [7, 2.5], "uv_size": [0.5, 13]},
"south": {"uv": [7, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [7, 2.5], "uv_size": [0.5, 13]},
"up": {"uv": [7.5, 2.5], "uv_size": [-0.5, 13]},
"down": {"uv": [7.5, 15.5], "uv_size": [-0.5, -13]}
}
},
{ "origin": [-0.5, 3.5, -3],
"size": [0.5, 2.5, 10.5],
"uv": { "north": {"uv": [9, 3], "uv_size": [-0.5, 0.5]},
"east": {"uv": [8.5, 3], "uv_size": [0.5, 12.5]},
"south": {"uv": [8.5, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [8.5, 3], "uv_size": [0.5, 12.5]},
"up": {"uv": [9, 3], "uv_size": [-0.5, 12.5]},
"down": {"uv": [9, 15.5], "uv_size": [-0.5, -12.5]}
}
},
{ "origin": [-2.5, 4.5, -3],
"size": [0.5, 0.5, 8.5],
"uv": { "north": {"uv": [7, 4], "uv_size": [-0.5, 0.5]},
"east": {"uv": [6.5, 4], "uv_size": [0.5, 11.5]},
"south": {"uv": [6.5, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [6.5, 4], "uv_size": [0.5, 11.5]},
"up": {"uv": [7, 4], "uv_size": [-0.5, 11.5]},
"down": {"uv": [7, 15.5], "uv_size": [-0.5, -11.5]}
}
},
{ "origin": [0, 4, -1.5],
"size": [0.5, 1.5, 8],
"uv": { "north": {"uv": [9.5, 4.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [9, 4.5], "uv_size": [0.5, 11]},
"south": {"uv": [9, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [9, 4.5], "uv_size": [0.5, 11]},
"up": {"uv": [9.5, 4.5], "uv_size": [-0.5, 11]},
"down": {"uv": [9.5, 15.5], "uv_size": [-0.5, -11]}
}
},
{ "origin": [0.5, 4.5, 0.5],
"size": [0.5, 0.5, 5],
"uv": { "north": {"uv": [9.5, 4.5], "uv_size": [-0.5, 0.5]},
"east": {"uv": [9, 4.5], "uv_size": [0.5, 11]},
"south": {"uv": [9, 15], "uv_size": [0.5, 0.5]},
"west": {"uv": [9, 4.5], "uv_size": [0.5, 11]},
"up": {"uv": [9.5, 4.5], "uv_size": [-0.5, 11]},
"down": {"uv": [9.5, 15.5], "uv_size": [-0.5, -11]}
}
}
]
}
]
}
]
}
物品動畫文件(放入animations包):tribody.animation.json
{"format_version": "1.8.0",
"animations": {"animation.tribody.run": { "loop": true,
"bones": { "Drop": {"rotation": {"vector": [0, "math.sin(query.anim_time*120)*5", "math.sin(query.anim_time*360)*360"]
},
"position": {"vector": ["math.sin(query.anim_time*360)*10", "math.sin(query.anim_time*720)*2", "math.cos(query.anim_time*360)*10"]
}
}
}
}
},
"geckolib_format_version": 2
}
手上展示模型文件(放入models/item包):tribody.json
{"credit": "Made with Blockbench",
"parent": "builtin/entity",
"display": {"thirdperson_righthand": { "rotation": [
-161.25,
0,
0
],
"translation": [
-1.75,
7.25,
-1.25
]
},
"thirdperson_lefthand": { "rotation": [
-174.75,
0,
0
],
"translation": [
0.75,
6.5,
-3
]
},
"firstperson_righthand": { "rotation": [
180,
-11.25,
180
],
"translation": [
0,
-1.5,
-2.25
]
},
"firstperson_lefthand": { "rotation": [
180,
0,
0
],
"translation": [
0,
9,
0
]
},
"gui": { "rotation": [
-92.23,
-47.05,
82.48
],
"translation": [
3.75,
3,
0
]
},
"head": { "rotation": [
-180,
7.5,
-180
],
"translation": [
0,
6.5,
-2.5
]
},
"fixed": { "rotation": [
0,
-90,
0
],
"translation": [
1,
-4.5,
-1
]
}
}
}
你是否還在尋找穩定的海外服務器提供商?創新互聯www.cdcxhl.cn海外機房具備T級流量清洗系統配攻擊溯源,準確流量調度確保服務器高可用性,企業級服務器適合批量采購,新人活動首月15元起,快前往官網查看詳情吧
文章標題:Minecraft1.19.2Forge模組開發04.動畫效果物品-創新互聯
標題URL:http://jinyejixie.com/article14/ccejde.html
成都網站建設公司_創新互聯,為您提供網站設計、App開發、網站改版、軟件開發、網站內鏈、品牌網站設計
聲明:本網站發布的內容(圖片、視頻和文字)以用戶投稿、用戶轉載內容為主,如果涉及侵權請盡快告知,我們將會在第一時間刪除。文章觀點不代表本網站立場,如需處理請聯系客服。電話:028-86922220;郵箱:631063699@qq.com。內容未經允許不得轉載,或轉載時需注明來源: 創新互聯
猜你還喜歡下面的內容
