Galera 是一個Mysql(Mariadb，Percona)同步多主集群軟件，本文主要講解Galera cluster安裝，MySQL Galera集群版的mysql是經過codeship打了wsrep補丁的，不是普通的mysql版本。安裝時采用輕量級pssh來進行批量安裝。
Mysql Galera 集群版的安裝部署方法

概況如下：

機器IP 結點名

192.168.1.42 Es-Search-A
192.168.1.43 Es-Search-B
192.168.1.44 Es-Search-C

OS版本：CentOS 7
mysql版本：mysql-5.6.43

Galera cluster安裝包：

galera-3-25.3.26-2.el7.x86_64.rpm
mysql-wsrep-5.6-5.6.43-25.25.el7.x86_64.rpm
mysql-wsrep-client-5.6-5.6.43-25.25.el7.x86_64.rpm
mysql-wsrep-devel-5.6-5.6.43-25.25.el7.x86_64.rpm
mysql-wsrep-server-5.6-5.6.43-25.25.el7.x86_64.rpm
mysql-wsrep-shared-5.6-5.6.43-25.25.el7.x86_64.rpm
mysql-wsrep-test-5.6-5.6.43-25.25.el7.x86_64.rpm

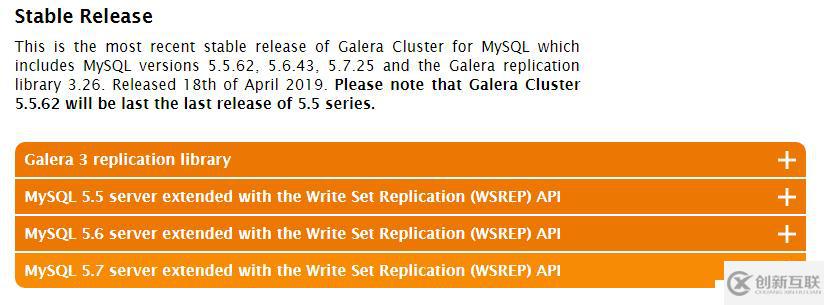

Galera cluster下載url:
http://galeracluster.com/downloads/

注：這里我下載的都是打過wsrep補丁的mysql安裝包，不用獨立安裝mysql數據庫，直接安裝這些包之后數據庫就安裝好了。

一、準備工作
在每臺機器/下創建/data目錄，用于mysql數據文件目錄。
[elasticsearch@Es-Search-A ~]$ cat hosts.txt
192.168.1.42
192.168.1.43
192.168.1.44
[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt "sudo mkdir /data/"
[1] 14:37:15 [SUCCESS] 192.168.1.42
[2] 14:37:15 [SUCCESS] 192.168.1.44
[3] 14:37:15 [SUCCESS] 192.168.1.43

將mysql源碼文件復制到每臺機器

安裝依賴包
[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt "sudo yum install gcc gcc-c++ perl-devel bison bison-devel ncurses-devel cmake autoconf -y"
[1] 14:51:37 [SUCCESS] 192.168.1.42
[2] 14:51:39 [SUCCESS] 192.168.1.44
[3] 14:51:41 [SUCCESS] 192.168.1.43

創建用戶：

[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt "sudo groupadd mysql"
[1] 14:58:03 [SUCCESS] 192.168.1.43
[2] 14:58:03 [SUCCESS] 192.168.1.44
[3] 14:58:03 [SUCCESS] 192.168.1.42
[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt "sudo useradd -g mysql mysql -d /home/mysql -s /sbin/nologin"
[1] 14:58:16 [SUCCESS] 192.168.1.42
[2] 14:58:16 [SUCCESS] 192.168.1.43
[3] 14:58:16 [SUCCESS] 192.168.1.44

[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt "sudo mkdir /data/mysql/data -p"
[1] 14:59:00 [SUCCESS] 192.168.1.42
[2] 14:59:00 [SUCCESS] 192.168.1.43
[3] 14:59:00 [SUCCESS] 192.168.1.44
[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt "sudo chown -R mysql:mysql /data/mysql/data/"
[1] 15:01:13 [SUCCESS] 192.168.1.42
[2] 15:01:13 [SUCCESS] 192.168.1.43
[3] 15:01:13 [SUCCESS] 192.168.1.44

將安裝包復制到其他兩臺機器上：
[elasticsearch@Es-Search-A ~]$ pscp.pssh -h hosts.txt -t 0 mysql-wsrep- /home/elasticsearch/
[1] 10:07:35 [SUCCESS] 192.168.1.42
[2] 10:07:38 [SUCCESS] 192.168.1.44
[3] 10:07:38 [SUCCESS] 192.168.1.43
[elasticsearch@Es-Search-A ~]$ pscp.pssh -h hosts.txt -t 0 galera-3-25.3.26-2.el7.x86_64.rpm /home/elasticsearch/
[1] 10:08:01 [SUCCESS] 192.168.1.42
[2] 10:08:02 [SUCCESS] 192.168.1.43
[3] 10:08:03 [SUCCESS] 192.168.1.44
二、安裝
批量安裝：
[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt -t 0 "sudo rpm -ivh mysql-wsrep-"
[1] 10:09:08 [SUCCESS] 192.168.1.42
[2] 10:09:09 [SUCCESS] 192.168.1.43
[3] 10:09:10 [SUCCESS] 192.168.1.44

[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt -t 0 -P "sudo rpm -ivh galera*"
[1] 10:10:24 [SUCCESS] 192.168.1.44
[2] 10:10:25 [SUCCESS] 192.168.1.43
[3] 10:10:28 [SUCCESS] 192.168.1.42

檢查是否成功安裝：
[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt -t 0 -P "sudo rpm -qa| grep mysql-wsrep"
192.168.1.42: mysql-wsrep-test-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-server-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-devel-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-client-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-shared-5.6-5.6.43-25.25.el7.x86_64
[1] 15:28:04 [SUCCESS] 192.168.1.42
192.168.1.43: mysql-wsrep-client-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-shared-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-server-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-test-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-devel-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-5.6-5.6.43-25.25.el7.x86_64
[2] 15:28:04 [SUCCESS] 192.168.1.43
192.168.1.44: mysql-wsrep-server-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-devel-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-client-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-shared-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-test-5.6-5.6.43-25.25.el7.x86_64
mysql-wsrep-5.6-5.6.43-25.25.el7.x86_64
[3] 15:28:04 [SUCCESS] 192.168.1.44
[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt -t 0 -P "sudo rpm -qa| grep galera"
192.168.1.42: galera-3-25.3.26-2.el7.x86_64
[1] 10:11:25 [SUCCESS] 192.168.1.42
192.168.1.43: galera-3-25.3.26-2.el7.x86_64
[2] 10:11:25 [SUCCESS] 192.168.1.43
192.168.1.44: galera-3-25.3.26-2.el7.x86_64
[3] 10:11:25 [SUCCESS] 192.168.1.44

安裝結束。

三、mysql配置文件

第一臺：
[elasticsearch@Es-Search-A ~]$ sudo vi /etc/my.cnf

#For advice on how to change settings please see
#http://dev.mysql.com/doc/refman/5.7/en/server-configuration-defaults.html

[mysqld]

#Remove leading # and set to the amount of RAM for the most important data
#cache in MySQL. Start at 70% of total RAM for dedicated server, else 10%.
#innodb_buffer_pool_size = 128M

#Remove leading # to turn on a very important data integrity option: logging
#changes to the binary log between backups.
#log_bin

#Remove leading # to set options mainly useful for reporting servers.
#The server defaults are faster for transactions and fast SELECTs.
#Adjust sizes as needed, experiment to find the optimal values.
#join_buffer_size = 128M
#sort_buffer_size = 2M
#read_rnd_buffer_size = 2M
#datadir=/usr/local/mysql
#socket=/usr/local/mysql/mysql.sock

#Disabling symbolic-links is recommended to prevent assorted security risks
#symbolic-links=0

#log-error=/data/mysql/log/error.log
#pid-file=/usr/local/mysql/mysqld.pid
!includedir /etc/my.cnf.d/

[elasticsearch@Es-Search-A ~]$ sudo vi /etc/my.cnf.d/wsrep.cnf

[mysqld]
datadir=/var/lib/mysql
#basedir=/usr/share/mysql
tmpdir=/tmp ###臨時目錄
socket=/var/lib/mysql/mysql.sock
#Disabling symbolic-links is recommended to prevent assorted security risks
symbolic-links=0
#Settings user and group are ignored when systemd is used.
#If you need to run mysqld under a different user or group,
#customize your systemd unit file for mariadb according to the
#instructions in http://fedoraproject.org/wiki/Systemd
character-set-server=utf8 #字符集utf-8
collation-server=utf8_general_ci
skip-name-resolve ##跳過主機名
user=mysql
port=3306 ##端口
binlog_rows_query_log_events=OFF ###這個選項應該關掉，否則會產生內部錯誤
innodb_buffer_pool_size = 4096M
max_allowed_packet = 500M
max_connections = 600
log-error=/data/mysql/log/error.log
pid-file=/var/lib/mysql/mysql.pid

skip-grant-tables ##跳過授權表
binlog_format=ROW
log-bin=mysql-bin

#####################################################################################
character-set-server=utf8 #字符集utf-8
collation-server=utf8_general_ci
binlog_rows_query_log_events=OFF ###這個選項應該關掉，否則會產生內部錯誤

wsrep_on=on
innodb_autoinc_lock_mode=2
default_storage_engine=innodb
wsrep_node_name = Es-Search-A
wsrep_node_address='192.168.1.42'
wsrep_provider = /usr/lib64/galera-3/libgalera_smm.so
wsrep_cluster_address="gcomm://"
wsrep_cluster_name='Galera_cluster'
wsrep_sst_method = rsync #xtrabackup
skip-grant-tables ##跳過授權表
wsrep_sst_auth=galera:galera
binlog_format=ROW
log-bin=mysql-bin
server-id=42
log-slave-updates=1
#######################################################################################

[mysqld_safe]
log-error=/data/mysql/data/error.log
#pid-file=/usr/local/mysql/mysql.pid

#include all files from the config directory

#!includedir /etc/my.cnf.d/

配置文件各項配置意義：

wsrep_provider：指定Galera庫的路徑
wsrep_cluster_name：Galera集群的名稱
wsrep_cluster_address：Galera集群中各節點地址。地址使用組通信協議gcomm://(group communication)
wsrep_node_name：本節點在Galera集群中的名稱
wsrep_node_address：本節點在Galera集群中的通信地址
wsrep_sst_method
：state_snapshot_transfer(SST)使用的傳輸方法，可用方法有mysqldump、rsync和xtrabackup，前兩者在傳輸時都需要對Donor加全局只讀鎖(
FLUSH TABLES WITH READ LOCK)，xtrabackup則不需要(它使用percona自己提供的backup
lock)。強烈建議采用xtrabackup
wsrep_sst_auth：在SST傳輸時需要用到的認證憑據，格式為："用戶：密碼"
pxc_strict_mode：是否限制PXC啟用正在試用階段的功能，ENFORCING是默認值，表示不啟用
binlog_format：二進制日志的格式。Galera只支持row格式的二進制日志
default_storage_engine：指定默認存儲引擎。Galera的復制功能只支持InnoDB
innodb_autoinc_lock_mode：只能設置為2，設置為0或1時會無法正確處理死鎖問題

將配置文件復制到其他機器
[elasticsearch@Es-Search-A ~]$ pscp.pssh -h hosts.txt -t 0 /etc/my.cnf /home/elasticsearch/
[1] 11:15:22 [SUCCESS] 192.168.1.42
[2] 11:15:22 [SUCCESS] 192.168.1.43
[3] 11:15:22 [SUCCESS] 192.168.1.44
[elasticsearch@Es-Search-A ~]$ pssh -h hosts.txt -t 0 -P "sudo cp my.cnf /etc/"
[1] 11:15:59 [SUCCESS] 192.168.1.42
[2] 11:15:59 [SUCCESS] 192.168.1.43
[3] 11:15:59 [SUCCESS] 192.168.1.44

初始化第一臺mysql
[elasticsearch@Es-Search-A ~]$ sudo mysqld --initialize --user=mysql
2019-06-27 15:10:11 0 [Warning] TIMESTAMP with implicit DEFAULT value is deprecated. Please use --explicit_defaults_for_timestamp server option (see documentation for more details).
2019-06-27 15:10:11 0 [Note] mysqld (mysqld 5.6.43-log) starting as process 5321 ...

[elasticsearch@Es-Search-A ~]$ ll /data/mysql/data
total 241672
-rw-rw---- 1 mysql mysql 134219048 Jun 26 17:38 galera.cache
-rw-rw---- 1 mysql mysql 113 Jun 26 17:38 grastate.dat
-rw-rw---- 1 mysql mysql 12582912 Jun 26 17:38 ibdata1
-rw-rw---- 1 mysql mysql 50331648 Jun 26 17:38 ib_logfile0
-rw-rw---- 1 mysql mysql 50331648 Jun 20 17:53 ib_logfile1
drwx------ 2 mysql mysql 6 Jun 20 18:01 mysql
-rw-rw---- 1 mysql mysql 0 Jun 20 17:53 mysql-bin.index
drwx------ 2 mysql mysql 6 Jun 20 18:01 test

啟動第一臺mysql
sudo service mysql start --wsrep-new-cluster

或使用這種方式啟動也可以
[elasticsearch@Es-Search-A ~]$ sudo mysqld --wsrep-new-cluster --user=mysql &
[1] 16007
[elasticsearch@Es-Search-A ~]$ 2019-06-20 17:11:56 0 [Warning] TIMESTAMP with implicit DEFAULT value is deprecated. Please use --explicit_defaults_for_timestamp server option (see documentation for more details).
2019-06-20 17:11:56 0 [Note] mysqld (mysqld 5.6.43-log) starting as process 16008 ...

在另一個終端
[elasticsearch@Es-Search-A ~]$ mysql -uroot -p
Enter password:
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 3
Server version: 5.6.43-log MySQL Community Server (GPL), wsrep_25.25

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

查看參數：
mysql> show status like 'wsrep_%';
+------------------------------+-----------------------------------------------+
| Variable_name | Value |
+------------------------------+-----------------------------------------------+
| wsrep_local_state_uuid | 73aa66b8-933b-11e9-9578-9a7df8c24dcc |
| wsrep_protocol_version | 9 |
| wsrep_last_committed | 0 |
| wsrep_replicated | 0 |
| wsrep_replicated_bytes | 0 |
| wsrep_repl_keys | 0 |
| wsrep_repl_keys_bytes | 0 |
| wsrep_repl_data_bytes | 0 |
| wsrep_repl_other_bytes | 0 |
| wsrep_received | 2 |
| wsrep_received_bytes | 147 |
| wsrep_local_commits | 0 |
| wsrep_local_cert_failures | 0 |
| wsrep_local_replays | 0 |
| wsrep_local_send_queue | 0 |
| wsrep_local_send_queue_max | 2 |
| wsrep_local_send_queue_min | 0 |
| wsrep_local_send_queue_avg | 0.500000 |
| wsrep_local_recv_queue | 0 |
| wsrep_local_recv_queue_max | 1 |
| wsrep_local_recv_queue_min | 0 |
| wsrep_local_recv_queue_avg | 0.000000 |
| wsrep_local_cached_downto | 18446744073709551615 |
| wsrep_flow_control_paused_ns | 0 |
| wsrep_flow_control_paused | 0.000000 |
| wsrep_flow_control_sent | 0 |
| wsrep_flow_control_recv | 0 |
| wsrep_cert_deps_distance | 0.000000 |
| wsrep_apply_oooe | 0.000000 |
| wsrep_apply_oool | 0.000000 |
| wsrep_apply_window | 0.000000 |
| wsrep_commit_oooe | 0.000000 |
| wsrep_commit_oool | 0.000000 |
| wsrep_commit_window | 0.000000 |
| wsrep_local_state | 4 |
| wsrep_local_state_comment | Synced |
| wsrep_cert_index_size | 0 |
| wsrep_causal_reads | 0 |
| wsrep_cert_interval | 0.000000 |
| wsrep_open_transactions | 0 |
| wsrep_open_connections | 0 |
| wsrep_incoming_addresses | 192.168.1.42:3306 |
| wsrep_cluster_weight | 1 |
| wsrep_desync_count | 0 |
| wsrep_evs_delayed | |
| wsrep_evs_evict_list | |
| wsrep_evs_repl_latency | 3.204e-06/6.0466e-06/1.0783e-05/2.89701e-06/5 |
| wsrep_evs_state | OPERATIONAL |
| wsrep_gcomm_uuid | 73a64b76-933b-11e9-99cc-337e6bf5a0f1 |
| wsrep_cluster_conf_id | 1 |
| wsrep_cluster_size | 1 |
| wsrep_cluster_state_uuid | 73aa66b8-933b-11e9-9578-9a7df8c24dcc |
| wsrep_cluster_status | Primary |
| wsrep_connected | ON |
| wsrep_local_bf_aborts | 0 |
| wsrep_local_index | 0 |
| wsrep_provider_name | Galera |
| wsrep_provider_vendor | Codership Oy <info@codership.com> |
| wsrep_provider_version | 3.26(rff05089) |
| wsrep_ready | ON |
+------------------------------+-----------------------------------------------+
60 rows in set (0.00 sec)

修改密碼
mysql> update mysql.user set password=PASSWORD('123') where user='root';
Query OK, 4 rows affected (0.01 sec)
Rows matched: 4 Changed: 4 Warnings: 0

mysql> flush privileges;
Query OK, 0 rows affected (0.17 sec)

創建復制用戶
mysql> grant all on . to 'galera'@'%' identified by 'galera';
Query OK, 0 rows affected (0.12 sec)

mysql> flush privileges;
Query OK, 0 rows affected (0.28 sec)

第一個節點啟動成功，再配置啟動其他節點。

##第二個節點配置：
server-id=43
wsrep_node_name = Es-Search-B
wsrep_node_address='192.168.1.43'
wsrep_cluster_address="gcomm://192.168.1.42,192.168.1.44"
與節點1區別就這三個參數

啟動第二個節點：
[elasticsearch@Es-Search-B ~]$ sudo service mysql start
Starting MySQL........................ SUCCESS!

##第三個節點配置：
server-id=44
wsrep_node_name = Es-Search-C
wsrep_node_address='192.168.1.44'
wsrep_cluster_address="gcomm://192.168.1.42,192.168.1.43"

啟動第三個節點：
[elasticsearch@Es-Search-C data]$ sudo service mysql start
Starting MySQL........................... SUCCESS!

可以看到cluster有3臺，嘗試在其中任一臺上創建一個數據庫，則在另外節點可以看到也創建了同樣的庫。

mysql> create database mydb;
Query OK, 1 row affected (0.16 sec)

因為剛才第一臺機器用來創建集群，啟動時跳過了授權表，然后連接到庫中修改了密碼，創建了用戶，之后需要注釋掉跳過權限表的參數。

安裝配置完結。這里僅是使用rpm包安裝，basedir與datadir不能很靈活定義，還是比較習慣源碼安裝。之后會再探索直接在mysql上打補丁，然后組成Galera cluster。

對于以上關于Mysql Galera 集群版的安裝部署方法，如果大家還有更多需要了解的可以持續關注我們創新互聯的行業推新，如需獲取專業解答，可在官網聯系售前售后的，希望該文章可給大家?guī)硪欢ǖ闹R更新。

標題名稱：MysqlGalera集群版的安裝部署方法
轉載來源：http://jinyejixie.com/article8/joooop.html

成都網站建設公司_創新互聯，為您提供網站設計公司、Google、靜態網站、外貿建站、小程序開發、響應式網站

聲明：本網站發布的內容（圖片、視頻和文字）以用戶投稿、用戶轉載內容為主，如果涉及侵權請盡快告知，我們將會在第一時間刪除。文章觀點不代表本網站立場，如需處理請聯系客服。電話：028-86922220；郵箱：631063699@qq.com。內容未經允許不得轉載，或轉載時需注明來源：創新互聯

猜你還喜歡下面的內容

成人午夜视频全免费观看高清-秋霞福利视频一区二区三区-国产精品久久久久电影小说-亚洲不卡区三一区三区一区

MysqlGalera集群版的安裝部署方法
