3、EIGRP配置實驗之路由注入

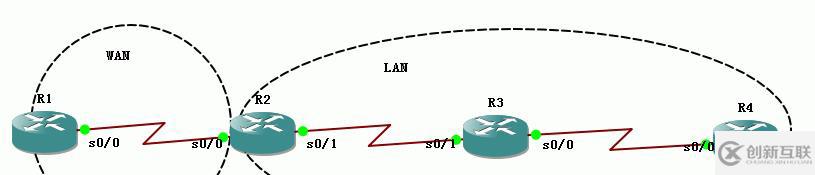

1、實驗拓撲
站在用戶的角度思考問題，與客戶深入溝通，找到興寧網站設計與興寧網站推廣的解決方案，憑借多年的經驗，讓設計與互聯網技術結合，創造個性化、用戶體驗好的作品，建站類型包括：成都做網站、成都網站建設、企業官網、英文網站、手機端網站、網站推廣、域名注冊、網頁空間、企業郵箱。業務覆蓋興寧地區。
2、基礎配置
R1
interface Serial0/0
ip address 12.1.1.1 255.255.255.0
R2
interface Serial0/0
ip address 12.1.1.2 255.255.255.0
interface Serial0/1
ip address 23.1.1.2 255.255.255.0
router eigrp 90
network 23.1.1.0 0.0.0.255
no auto-summary
R3
interface Serial0/0
ip address 34.1.1.3 255.255.255.0
serial restart-delay 0
interface Serial0/1
ip address 23.1.1.3 255.255.255.0
serial restart-delay 0
router eigrp 90
network 23.1.1.0 0.0.0.255
network 34.1.1.0 0.0.0.255
auto-summary
R4
interface Serial0/0
ip address 34.1.1.4 255.255.255.0
router eigrp 90
network 34.1.1.0 0.0.0.255
auto-summary
3、三種路由注入3中方法方法
重分布：添加一條0.0.0.0默認路由,，在EIGRP路由進程中重分布該默認路由
通 告：添加一條0.0.0.0默認路由，在EIGRP路由進程中network通告該默認路由
ip default-network:
首先，ip default-network后面的網絡必須是外網口所在網段的主類網絡
其次，在EIGRP路由進程中network通告該主類網絡
最后，必須存在到該主類網絡的路由，沒有的話，可以手動添加
4、重分布配置
R2(config)#ip route 0.0.0.0 0.0.0.0 s0/0
R2(config)#router eigrp 90
R2(config-router)#redistribute static
R3#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is 23.1.1.2 to network 0.0.0.0
34.0.0.0/24 is subnetted, 1 subnets
C 34.1.1.0 is directly connected, Serial0/0
23.0.0.0/24 is subnetted, 1 subnets
C 23.1.1.0 is directly connected, Serial0/1
D*EX 0.0.0.0/0 [170/2681856] via 23.1.1.2, 00:00:04, Serial0/1
R3#
R4#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is 34.1.1.3 to network 0.0.0.0
34.0.0.0/24 is subnetted, 1 subnets
C 34.1.1.0 is directly connected, Serial0/0
23.0.0.0/24 is subnetted, 1 subnets
D 23.1.1.0 [90/2681856] via 34.1.1.3, 00:01:51, Serial0/0
D*EX 0.0.0.0/0 [170/3193856] via 34.1.1.3, 00:00:12, Serial0/0
R4#
重分布進來的靜態路由屬外部路由，故其AD為170
5、通告配置
R2(config)#ip route 0.0.0.0 0.0.0.0 s0/0
R2(config)#router eigrp 90
R2(config-router)#network 0.0.0.0
R3#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is 23.1.1.2 to network 0.0.0.0
34.0.0.0/24 is subnetted, 1 subnets
C 34.1.1.0 is directly connected, Serial0/0
23.0.0.0/24 is subnetted, 1 subnets
C 23.1.1.0 is directly connected, Serial0/1
12.0.0.0/24 is subnetted, 1 subnets
D 12.1.1.0 [90/2681856] via 23.1.1.2, 00:00:02, Serial0/1
D* 0.0.0.0/0 [90/2681856] via 23.1.1.2, 00:00:02, Serial0/1
R3#
R4#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is 34.1.1.3 to network 0.0.0.0
34.0.0.0/24 is subnetted, 1 subnets
C 34.1.1.0 is directly connected, Serial0/0
23.0.0.0/24 is subnetted, 1 subnets
D 23.1.1.0 [90/2681856] via 34.1.1.3, 00:03:29, Serial0/0
12.0.0.0/24 is subnetted, 1 subnets
D 12.1.1.0 [90/3193856] via 34.1.1.3, 00:00:28, Serial0/0
D* 0.0.0.0/0 [90/3193856] via 34.1.1.3, 00:00:28, Serial0/0
R4#
network通告進來的靜態路由屬內部路由，故其AD為90
6、ip default-network配置
R2(config)#ip default-network 12.0.0.0
R2(config)#router eigrp 90
R2(config-router)#network 12.0.0.0 0.255.255.255
R2(config-router)#exit
R2(config)#ip route 12.0.0.0 255.0.0.0 null 0
R3#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is 23.1.1.2 to network 12.0.0.0
34.0.0.0/24 is subnetted, 1 subnets
C 34.1.1.0 is directly connected, Serial0/0
23.0.0.0/24 is subnetted, 1 subnets
C 23.1.1.0 is directly connected, Serial0/1
12.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
D 12.1.1.0/24 [90/2681856] via 23.1.1.2, 00:01:28, Serial0/1
D* 12.0.0.0/8 [90/2169856] via 23.1.1.2, 00:00:35, Serial0/1
R3#
R4#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is 34.1.1.3 to network 12.0.0.0
34.0.0.0/24 is subnetted, 1 subnets
C 34.1.1.0 is directly connected, Serial0/0
23.0.0.0/24 is subnetted, 1 subnets
D 23.1.1.0 [90/2681856] via 34.1.1.3, 00:06:38, Serial0/0
12.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
D 12.1.1.0/24 [90/3193856] via 34.1.1.3, 00:01:59, Serial0/0
D* 12.0.0.0/8 [90/2681856] via 34.1.1.3, 00:01:07, Serial0/0
R4#
