工作中有用到Nginx做負載均衡,所以想嘗試一下,把Nginx服務用zabbix監控起來
在梁河等地區,都構建了全面的區域性戰略布局,加強發展的系統性、市場前瞻性、產品創新能力,以專注、極致的服務理念,為客戶提供成都網站制作、成都網站設計 網站設計制作按需網站建設,公司網站建設,企業網站建設,成都品牌網站建設,成都營銷網站建設,成都外貿網站建設,梁河網站建設費用合理。記錄下操作步驟,以防下次忘記
涉及的實驗環境:
服務器操作系統:CentOS 7.2
zabbix版本:zabbix-2.2.5
Nginx版本:nginx-1.10.1
要做監控步驟前,先查看下當前Nginx中是否加載了--with-http_stub_status_module的模塊。
# /data0/nginx/sbin/nginx -V nginx version: nginx/1.10.1 built by gcc 4.8.5 20150623 (Red Hat 4.8.5-11) (GCC) built with OpenSSL 1.0.1e-fips 11 Feb 2013 TLS SNI support enabled configure arguments: --prefix=/data0/nginx --pid-path=/data0/nginx/logs/nginx.pid --user=nginx --group=nginx --with-http_ssl_module --with-http_flv_module --with-http_stub_status_module --with-http_gzip_static_module --http-client-body-temp-path=/var/tmp/nginx/client/ --http-proxy-temp-path=/var/tmp/nginx/proxy/ --http-fastcgi-temp-path=/var/tmp/nginx/fcgi/ --http-uwsgi-temp-path=/var/tmp/nginx/uwsgi --http-scgi-temp-path=/var/tmp/nginx/scgi --with-pcre --add-module=/root/nginx_upstream_check_module-master/ --add-module=/data0/soft/ngx_cache_purge-master/因?yàn)檫@邊zabbix是根據nginx的Stub Status模塊,來抓取Status模塊所提供的數據。
假如從前尚未開啟此模塊,現在想啟用StubStatus模塊,你可以重新編譯nginx源碼安裝包,然后在編譯時記得加上參數 --with-http_stub_status_module,執行./configure && make就可以了,不用make install,如果make install記得先備份下,配置文件nginx.conf,以防止配置文件的內容都遺失了。
因?yàn)镹ginx配置時,我都有加載此模塊,所以就不多加介紹了。
重新加載nginx模塊可以參照我之前寫的博客
http://10803382.blog.51cto.com/10793382/1924871
在你的nginx.conf確認下,有沒有下列內容,如果沒有,那你可以在nginx.conf當中添加查看nginxstatus配置后,重啟nginx服務即可。
# vim /data0/nginx/conf/nginx.conf ##找到server模塊,server{}里加入下面的內容 #20170627 Nginx監控設置 location /nginxstatus{ stub_status on; access_log /data0/nginx/logs/status.log; allow 10.60.0.71; ##允許zabbix監控主機內網IP訪問 allow 10.60.0.163; ##允許nginx本機內網IP訪問 deny all; auth_basic "nginxstatus"; } #20170627 END因?yàn)橄薅稍L問IP,有助于保護網址安全
# /data0/nginx/sbin/nginx -t nginx: the configuration file /data0/nginx/conf/nginx.conf syntax is ok nginx: configuration file /data0/nginx/conf/nginx.conf test is successful # /data0/nginx/sbin/nginx -s reload查看你設置好的nginxstatus連接狀況
http://網址/nginxstatus
# curl http://127.0.0.1/nginxstatus <html> <head><title>301 Moved Permanently</title></head> <body bgcolor="white"> <center><h2>301 Moved Permanently</h2></center> <hr><center>nginx/1.10.1</center> </body> </html>你會發現出現了錯誤提示,顯示了301 網站有設定了永久重定向,
如果你和我是一樣的情況,網址做了https,那么請?jiān)趎ginx主機、zabbix監控主機上用網址來訪問即可
# curl https://www.sss.com/nginxstatus Active connections: 9 server accepts handled requests 1453770 1453770 2718730 Reading: 0 Writing: 4 Waiting: 5注:
Activeconnections:對后端發起的活動連接數;
server accepts :nginx 總共處理了1453770個連接;
handled:成功創建了1453770次握手;
requests:總共處理了2718730個請求。
Reading:nginx讀取客戶端的header數;
Writing: nginx 返回給客戶端的header數;
Waiting: nginx 請求處理完成,正在等待下一請求指令的連接。
在上面的準備工作完了以后,接下來,我們就要開始在nginx的那臺機器上編輯一個可以讓zabbix服務器獲取到數據的腳本
注:因?yàn)槲业木W(wǎng)站做了https,所以不是像別人一樣直接訪問IP和端口就可以了,我就直接訪問網址即可
# vim /data0/zabbix/scripts/nginx_status.sh #!/bin/bash # Script is userd to fetch nginx statuses for zabbix monitoring systems # Set Variables BKUP_DATE=`/bin/date +%Y%m%d` LOG="/data0/zabbix/log/webstatus.log" HOST=www.sss.com export HOST # Function used to check the process of nginx function ping { ps -ef |grep nginx | wc -l } # Functions to return nginx stats function active { /usr/bin/curl "https://$HOST/nginxstatus" 2>/dev/null| grep 'Active' | awk '{print $NF}' } function reading { /usr/bin/curl "https://$HOST/nginxstatus" 2>/dev/null| grep 'Reading' | awk '{print $2}' } function writing { /usr/bin/curl "https://$HOST/nginxstatus" 2>/dev/null| grep 'Writing' | awk '{print $4}' } function waiting { /usr/bin/curl "https://$HOST/nginxstatus" 2>/dev/null| grep 'Waiting' | awk '{print $6}' } function accepts { /usr/bin/curl "https://$HOST/nginxstatus" 2>/dev/null| awk NR==3 | awk '{print $1}' } function handled { /usr/bin/curl "https://$HOST/nginxstatus" 2>/dev/null| awk NR==3 | awk '{print $2}' } function requests { /usr/bin/curl "https://$HOST/nginxstatus" 2>/dev/null| awk NR==3 | awk '{print $3}' } # Run the requested function $1#上面是根據我的情況設定的,當然還有其他更簡潔的方式,但因?yàn)榭梢詫?shí)現想要的功能,所以就先不進行更改了。
賦予腳本可執行權限
# chmod +x nginx_status.sh將腳本更改至zabbix用戶和群組管理
# chown zabbix:zabbix nginx_status.sh# ll nginx_status.sh -rwxr-xr-x 1 zabbix zabbix 1168 Jun 27 13:58 nginx_status.sh在本地查看下你的設定是否可以出結果,不然出錯,卻沒有發現,后面可能就沒有辦法收取到數據,也可以及時排錯。
# /usr/bin/curl "https://www.sss.com/nginxstatus" 2>/dev/null| grep 'Active' | awk '{print $NF}' 12上面數據一個個試過,如果可以像上面一樣能出數據,說明沒有問題。那你就可以到zabbix客戶端去添加Nginx服務的模塊獲取設定
# grep -v "^[#;]" /data0/zabbix/etc/zabbix_agentd.conf | grep -v "^$" LogFile=/tmp/zabbix_agentd.log Server=10.60.0.71 ##zabbix server監控主機的IP地址 ServerActive=10.60.0.71 ##zabbix server監控主機的IP地址 Hostname=10.60.0.163 ##zabbix client 即本機nginx的IP地址 UnsafeUserParameters=1 ##默認情況下可能沒有開啟,那么你就把前面的注釋去掉即可那么在zabbix_agentd.conf里隨便找個位置添加下列設定即可,我是放在了UnsafeUserParameters下面。
# vim /data0/zabbix/etc/zabbix_agentd.conf UserParameter=nginx.accepts,/data0/zabbix/scripts/nginx_status.sh accepts UserParameter=nginx.handled,/data0/zabbix/scripts/nginx_status.sh handled UserParameter=nginx.requests,/data0/zabbix/scripts/nginx_status.sh requests UserParameter=nginx.connections.active,/data0/zabbix/scripts/nginx_status.sh active UserParameter=nginx.connections.reading,/data0/zabbix/scripts/nginx_status.sh reading UserParameter=nginx.connections.writing,/data0/zabbix/scripts/nginx_status.sh writing UserParameter=nginx.connections.waiting,/data0/zabbix/scripts/nginx_status.sh waiting重啟下zabbix agent服務,讓我們剛剛的配置設定生效
# pkill -9 zabbix_agentd # /data0/zabbix/sbin/zabbix_agentd現在關于zabbix client端的設定都已經完畢。轉站zabbix server監控主機
首先測試zabbix server是否可以通過zabbix_get來獲取到zabbix client端Nginx服務的數據
# /usr/local/zabbix/bin/zabbix_get -s 10.60.0.163 -p 10050 -k "nginx.accepts" 1422577# /usr/local/zabbix/bin/zabbix_get -s 10.60.0.163 -p 10050 -k "nginx.handled" 1422800# /usr/local/zabbix/bin/zabbix_get -s 10.60.0.163 -p 10050 -k "nginx.requests" 2654085# /usr/local/zabbix/bin/zabbix_get -s 10.60.0.163 -p 10050 -k "nginx.connections.active" 17# /usr/local/zabbix/bin/zabbix_get -s 10.60.0.163 -p 10050 -k "nginx.connections.reading" 0# /usr/local/zabbix/bin/zabbix_get -s 10.60.0.163 -p 10050 -k "nginx.connections.writing" 3# /usr/local/zabbix/bin/zabbix_get -s 10.60.0.163 -p 10050 -k "nginx.connections.waiting" 9從上面上看,Nginx服務被監控項都是沒有問題的。
在網上搜索到適合你用Nginx status的zabbix模板,然后把模板導入到zabbix web內,下面是我在自己的zabbix web上匯出的Nginx status的模板。如果覺得合適,也可以在文章最下方下載我的模板。
<?xml version="1.0" encoding="UTF-8" ?> - <zabbix_export> <version>2.0</version> <date>2017-06-27T13:30:39Z</date> - <groups> - <group> <name>Freetrade</name> </group> </groups> - <templates> - <template> <template>Nginx Status</template> <name>Nginx Status</name> - <groups> - <group> <name>Freetrade</name> </group> </groups> - <applications> - <application> <name>Nginx</name> </application> </applications> - <items> - <item> <name>Nginx Accepts</name> <type>7</type> <snmp_community /> <multiplier>0</multiplier> <snmp_oid /> <key>nginx.accepts</key> <delay>30</delay> <history>365</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts>localhost</allowed_hosts> <units /> <delta>0</delta> <snmpv3_contextname /> <snmpv3_securityname /> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase /> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase /> <formula>0</formula> <delay_flex /> <params /> <ipmi_sensor /> <data_type>0</data_type> <authtype>0</authtype> <username /> <password /> <publickey /> <privatekey /> <port /> <description /> <inventory_link>0</inventory_link> - <applications> - <application> <name>Nginx</name> </application> </applications> <valuemap /> </item> - <item> <name>Nginx Connections Active</name> <type>7</type> <snmp_community /> <multiplier>0</multiplier> <snmp_oid /> <key>nginx.connections.active</key> <delay>30</delay> <history>365</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts>localhost</allowed_hosts> <units /> <delta>0</delta> <snmpv3_contextname /> <snmpv3_securityname /> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase /> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase /> <formula>0</formula> <delay_flex /> <params /> <ipmi_sensor /> <data_type>0</data_type> <authtype>0</authtype> <username /> <password /> <publickey /> <privatekey /> <port /> <description /> <inventory_link>0</inventory_link> - <applications> - <application> <name>Nginx</name> </application> </applications> <valuemap /> </item> - <item> <name>Nginx Connections Reading</name> <type>7</type> <snmp_community /> <multiplier>0</multiplier> <snmp_oid /> <key>nginx.connections.reading</key> <delay>30</delay> <history>365</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts>localhost</allowed_hosts> <units /> <delta>0</delta> <snmpv3_contextname /> <snmpv3_securityname /> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase /> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase /> <formula>0</formula> <delay_flex /> <params /> <ipmi_sensor /> <data_type>0</data_type> <authtype>0</authtype> <username /> <password /> <publickey /> <privatekey /> <port /> <description /> <inventory_link>0</inventory_link> - <applications> - <application> <name>Nginx</name> </application> </applications> <valuemap /> </item> - <item> <name>Nginx Connections Waiting</name> <type>7</type> <snmp_community /> <multiplier>0</multiplier> <snmp_oid /> <key>nginx.connections.waiting</key> <delay>30</delay> <history>365</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts>localhost</allowed_hosts> <units /> <delta>0</delta> <snmpv3_contextname /> <snmpv3_securityname /> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase /> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase /> <formula>0</formula> <delay_flex /> <params /> <ipmi_sensor /> <data_type>0</data_type> <authtype>0</authtype> <username /> <password /> <publickey /> <privatekey /> <port /> <description /> <inventory_link>0</inventory_link> - <applications> - <application> <name>Nginx</name> </application> </applications> <valuemap /> </item> - <item> <name>Nginx Connections Writing</name> <type>7</type> <snmp_community /> <multiplier>0</multiplier> <snmp_oid /> <key>nginx.connections.writing</key> <delay>30</delay> <history>365</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts>localhost</allowed_hosts> <units /> <delta>0</delta> <snmpv3_contextname /> <snmpv3_securityname /> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase /> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase /> <formula>0</formula> <delay_flex /> <params /> <ipmi_sensor /> <data_type>0</data_type> <authtype>0</authtype> <username /> <password /> <publickey /> <privatekey /> <port /> <description /> <inventory_link>0</inventory_link> - <applications> - <application> <name>Nginx</name> </application> </applications> <valuemap /> </item> - <item> <name>Nginx Handled</name> <type>7</type> <snmp_community /> <multiplier>0</multiplier> <snmp_oid /> <key>nginx.handled</key> <delay>30</delay> <history>365</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts>localhost</allowed_hosts> <units /> <delta>0</delta> <snmpv3_contextname /> <snmpv3_securityname /> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase /> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase /> <formula>0</formula> <delay_flex /> <params /> <ipmi_sensor /> <data_type>0</data_type> <authtype>0</authtype> <username /> <password /> <publickey /> <privatekey /> <port /> <description /> <inventory_link>0</inventory_link> - <applications> - <application> <name>Nginx</name> </application> </applications> <valuemap /> </item> - <item> <name>Nginx Requests</name> <type>7</type> <snmp_community /> <multiplier>0</multiplier> <snmp_oid /> <key>nginx.requests</key> <delay>30</delay> <history>365</history> <trends>365</trends> <status>0</status> <value_type>3</value_type> <allowed_hosts>localhost</allowed_hosts> <units /> <delta>0</delta> <snmpv3_contextname /> <snmpv3_securityname /> <snmpv3_securitylevel>0</snmpv3_securitylevel> <snmpv3_authprotocol>0</snmpv3_authprotocol> <snmpv3_authpassphrase /> <snmpv3_privprotocol>0</snmpv3_privprotocol> <snmpv3_privpassphrase /> <formula>0</formula> <delay_flex /> <params /> <ipmi_sensor /> <data_type>0</data_type> <authtype>0</authtype> <username /> <password /> <publickey /> <privatekey /> <port /> <description /> <inventory_link>0</inventory_link> - <applications> - <application> <name>Nginx</name> </application> </applications> <valuemap /> </item> </items> <discovery_rules /> <macros /> <templates /> <screens /> </template> </templates> - <graphs> - <graph> <name>Nginx Clients Status</name> <width>900</width> <height>200</height> <yaxismin>0.0000</yaxismin> <yaxismax>100.0000</yaxismax> <show_work_period>1</show_work_period> <show_triggers>1</show_triggers> <type>0</type> <show_legend>1</show_legend> <show_3d>0</show_3d> <percent_left>0.0000</percent_left> <percent_right>0.0000</percent_right> <ymin_type_1>0</ymin_type_1> <ymax_type_1>0</ymax_type_1> <ymin_item_1>0</ymin_item_1> <ymax_item_1>0</ymax_item_1> - <graph_items> - <graph_item> <sortorder>0</sortorder> <drawtype>0</drawtype> <color>0000EE</color> <yaxisside>0</yaxisside> <calc_fnc>2</calc_fnc> <type>0</type> - <item> <host>Nginx Status</host> <key>nginx.connections.active</key> </item> </graph_item> - <graph_item> <sortorder>1</sortorder> <drawtype>0</drawtype> <color>EE0000</color> <yaxisside>0</yaxisside> <calc_fnc>2</calc_fnc> <type>0</type> - <item> <host>Nginx Status</host> <key>nginx.connections.writing</key> </item> </graph_item> - <graph_item> <sortorder>2</sortorder> <drawtype>0</drawtype> <color>EEEE00</color> <yaxisside>0</yaxisside> <calc_fnc>2</calc_fnc> <type>0</type> - <item> <host>Nginx Status</host> <key>nginx.connections.waiting</key> </item> </graph_item> - <graph_item> <sortorder>3</sortorder> <drawtype>0</drawtype> <color>00EE00</color> <yaxisside>0</yaxisside> <calc_fnc>2</calc_fnc> <type>0</type> - <item> <host>Nginx Status</host> <key>nginx.connections.reading</key> </item> </graph_item> </graph_items> </graph> - <graph> <name>Nginx Socket Status</name> <width>900</width> <height>200</height> <yaxismin>0.0000</yaxismin> <yaxismax>100.0000</yaxismax> <show_work_period>1</show_work_period> <show_triggers>1</show_triggers> <type>0</type> <show_legend>1</show_legend> <show_3d>0</show_3d> <percent_left>0.0000</percent_left> <percent_right>0.0000</percent_right> <ymin_type_1>0</ymin_type_1> <ymax_type_1>0</ymax_type_1> <ymin_item_1>0</ymin_item_1> <ymax_item_1>0</ymax_item_1> - <graph_items> - <graph_item> <sortorder>0</sortorder> <drawtype>0</drawtype> <color>00EE00</color> <yaxisside>0</yaxisside> <calc_fnc>2</calc_fnc> <type>0</type> - <item> <host>Nginx Status</host> <key>nginx.accepts</key> </item> </graph_item> - <graph_item> <sortorder>0</sortorder> <drawtype>0</drawtype> <color>EE0000</color> <yaxisside>0</yaxisside> <calc_fnc>2</calc_fnc> <type>0</type> - <item> <host>Nginx Status</host> <key>nginx.handled</key> </item> </graph_item> - <graph_item> <sortorder>1</sortorder> <drawtype>0</drawtype> <color>EEEE00</color> <yaxisside>0</yaxisside> <calc_fnc>2</calc_fnc> <type>0</type> - <item> <host>Nginx Status</host> <key>nginx.requests</key> </item> </graph_item> </graph_items> </graph> </graphs> </zabbix_export>首先你要先在zabbix web端創建一個空的templates即模板如下圖:

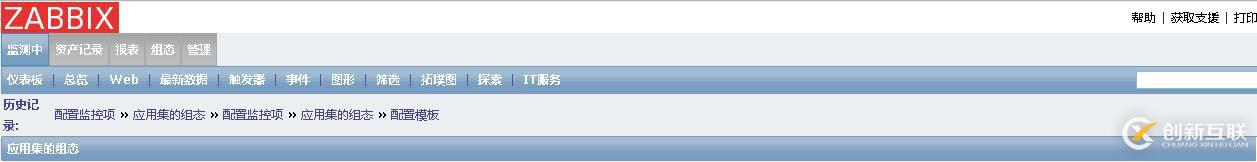

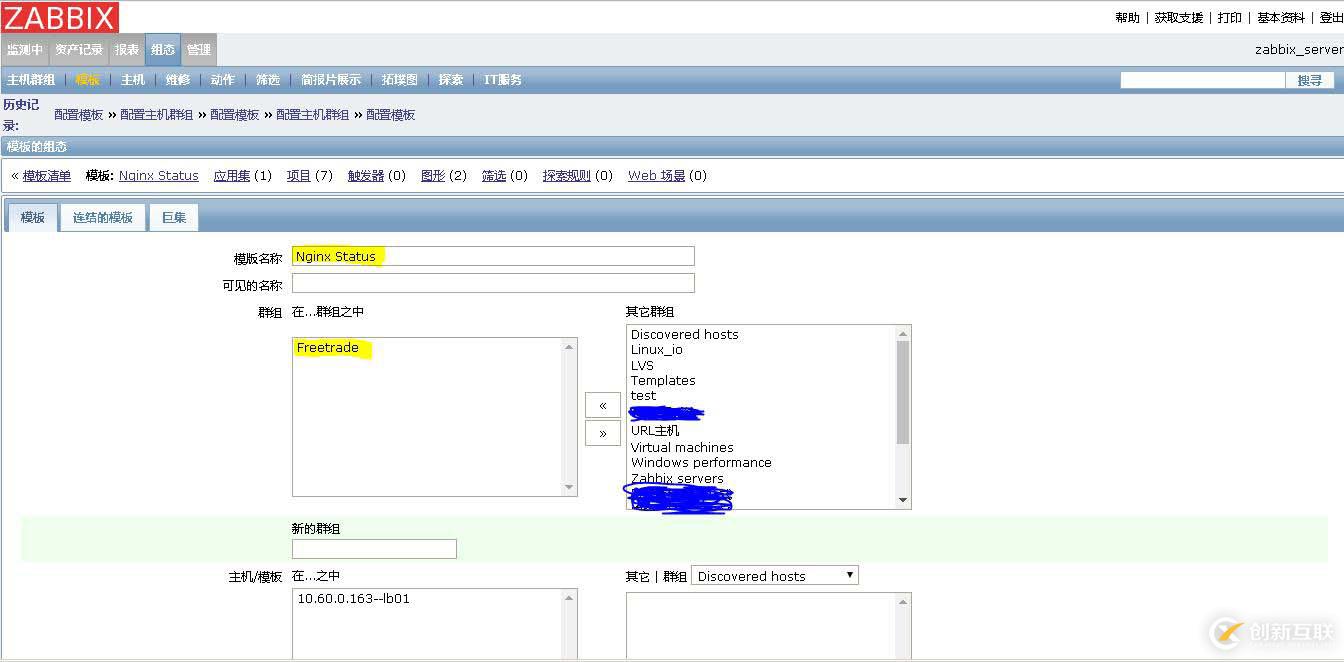

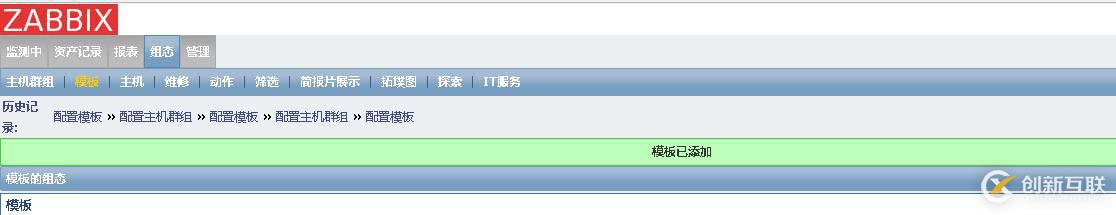

"組態--模板"-->到右上角"創建模板",填入你想要的模板名稱,以及所屬于該模板的主機,最后保存
把你下載好并修改成適合你的模板匯入到原創建好的空templates內,當然只要導入成功的話,你可以后期進templates去修改成適合你的。

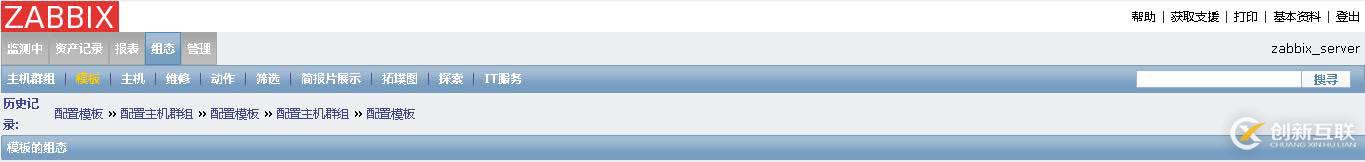

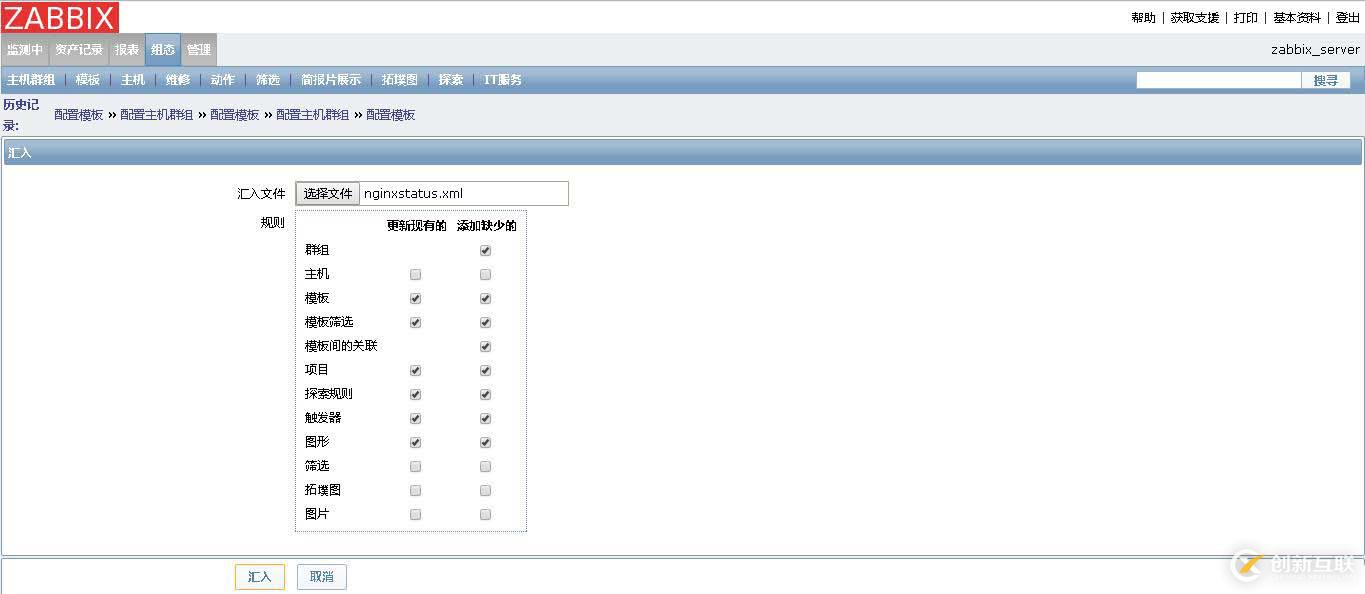

選擇右上角的"匯入"--"選擇文件"--"匯入"

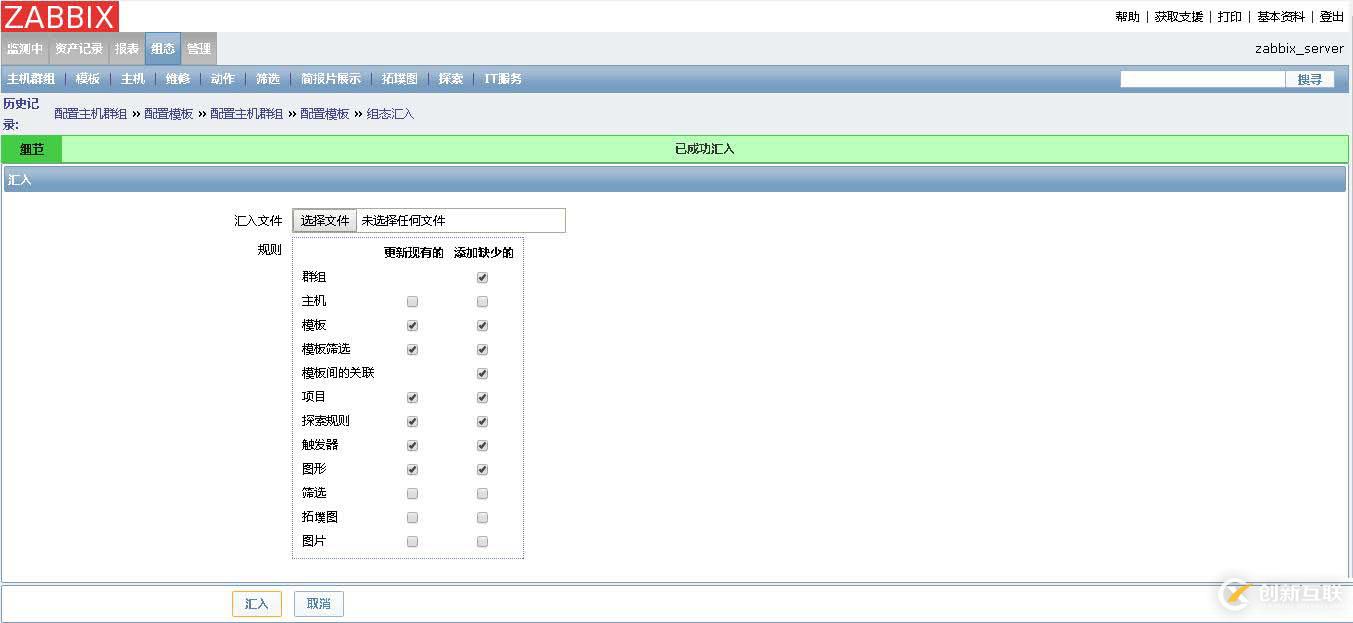

要出現匯入成功的提示,才說明你的模板是合適的,但是合適不一定有用哦
然后把你要的監控的Nginx主機納入到模板上去,再然后到被監控的Nginx主機里去查看,該模塊是否被連結了
你應該可以看到你的Nginx主機上多了一些圖形及項目,且在模板上已經鏈接到了你設定的新模板了

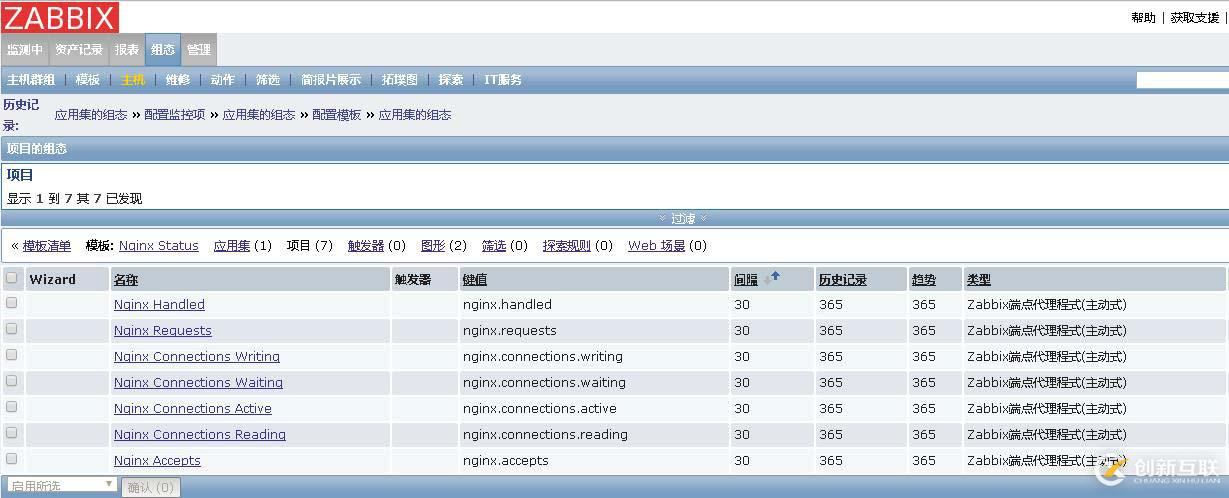

如果點進去看,nginx主機的監控項目中,Nginx服務相關的監控項目為Zabbix端點代理程式(主動式)哦
當然如果你沒有導入模板成功,那你就老老實實一個個創建吧,不過也很簡單啦!一步一步來就好了,多做加深印象,還便于理解

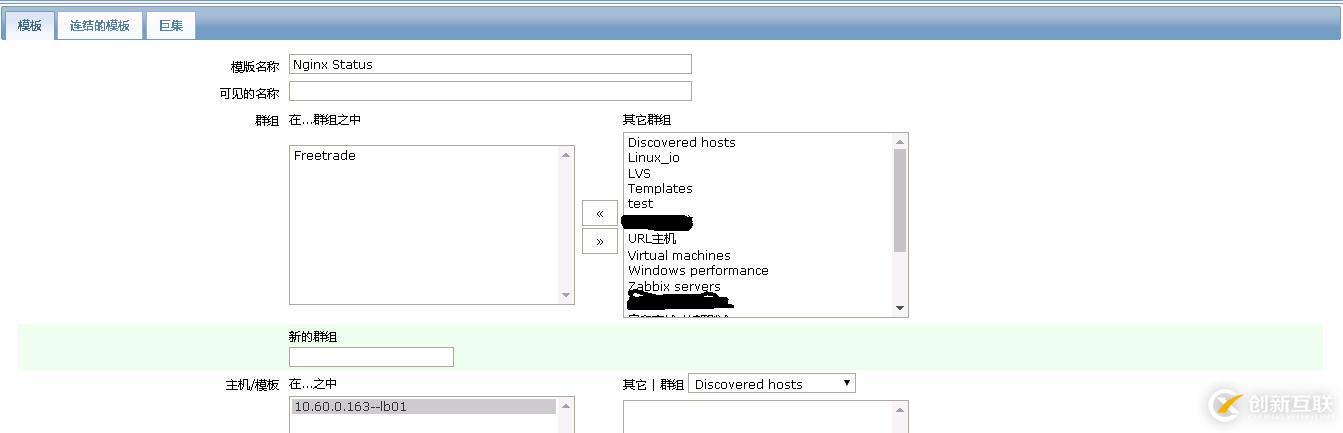

先建立新模板

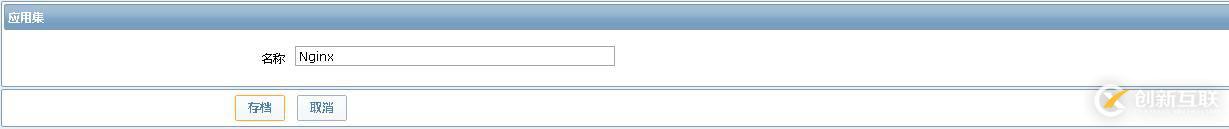

在新建模板里增加一個應用集

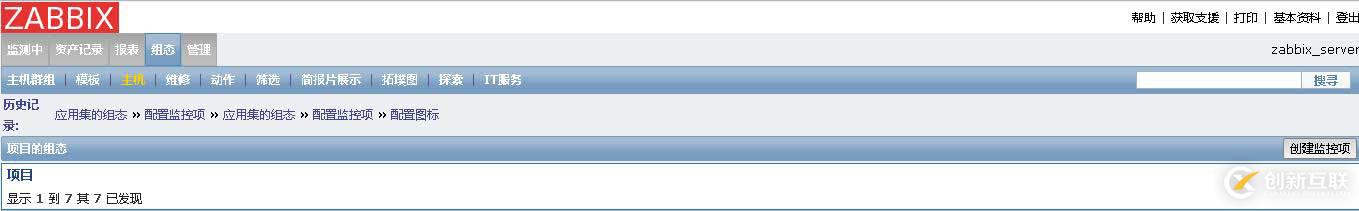

添加監控項進入新建模板,添加的內容一項一項地加,大致基本相同,唯一不同處是鍵值和名稱

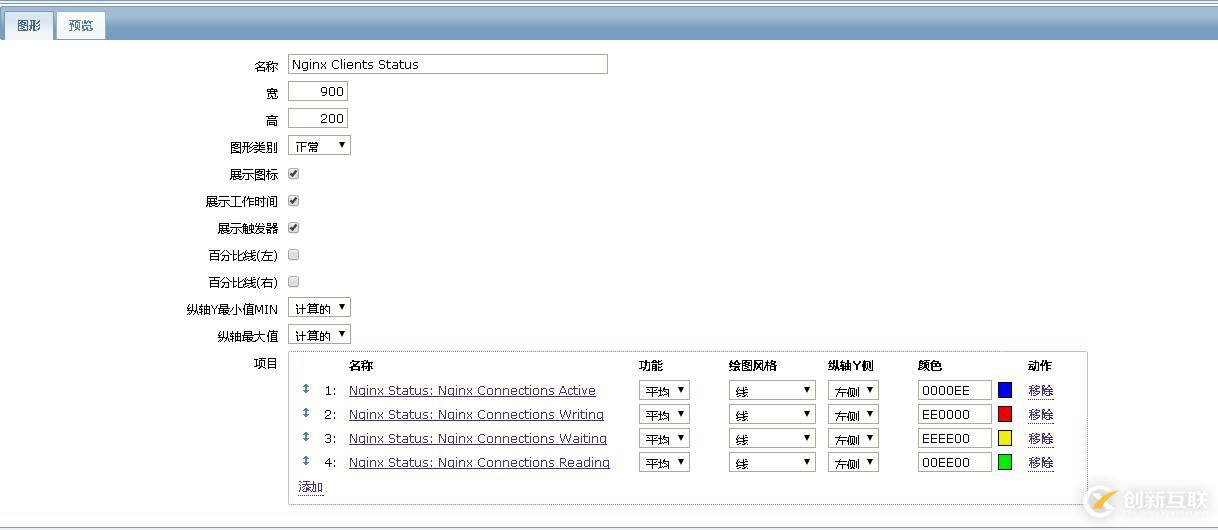

增加圖形監控,到這里,只要你把監控項目創建好,在圖形監控只要選擇你要呈現圖形的監控項目即可

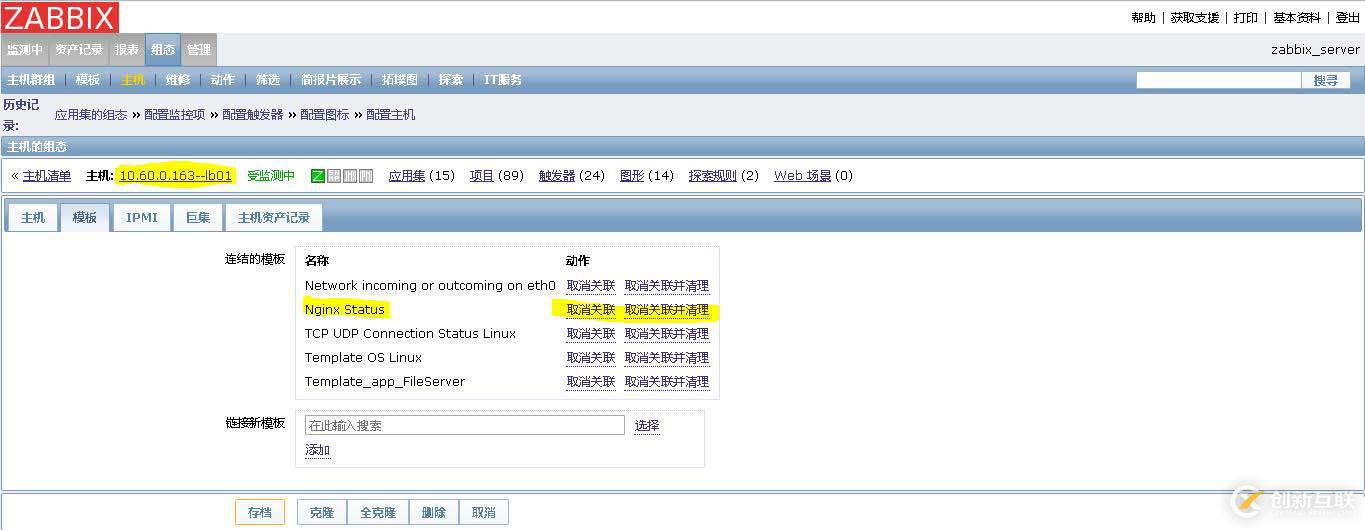

到監控主機里進模板連結,直接選擇現有的模板,然后添加保存

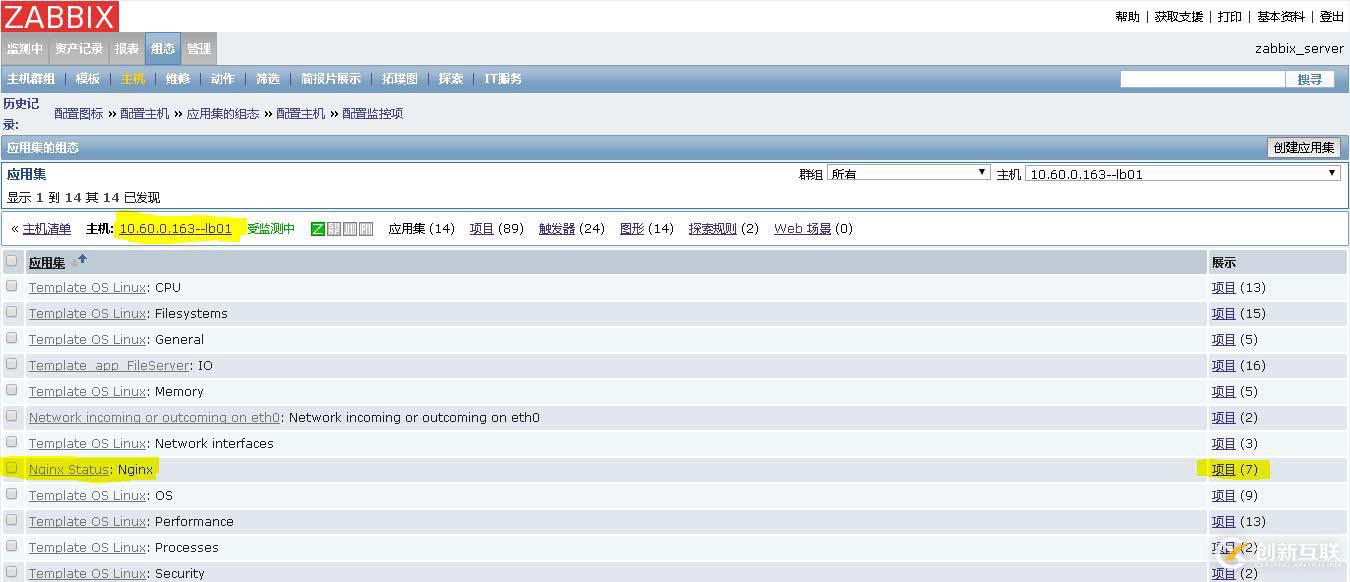

從上面看被監控主機已經載入新模板且項目集也存在了

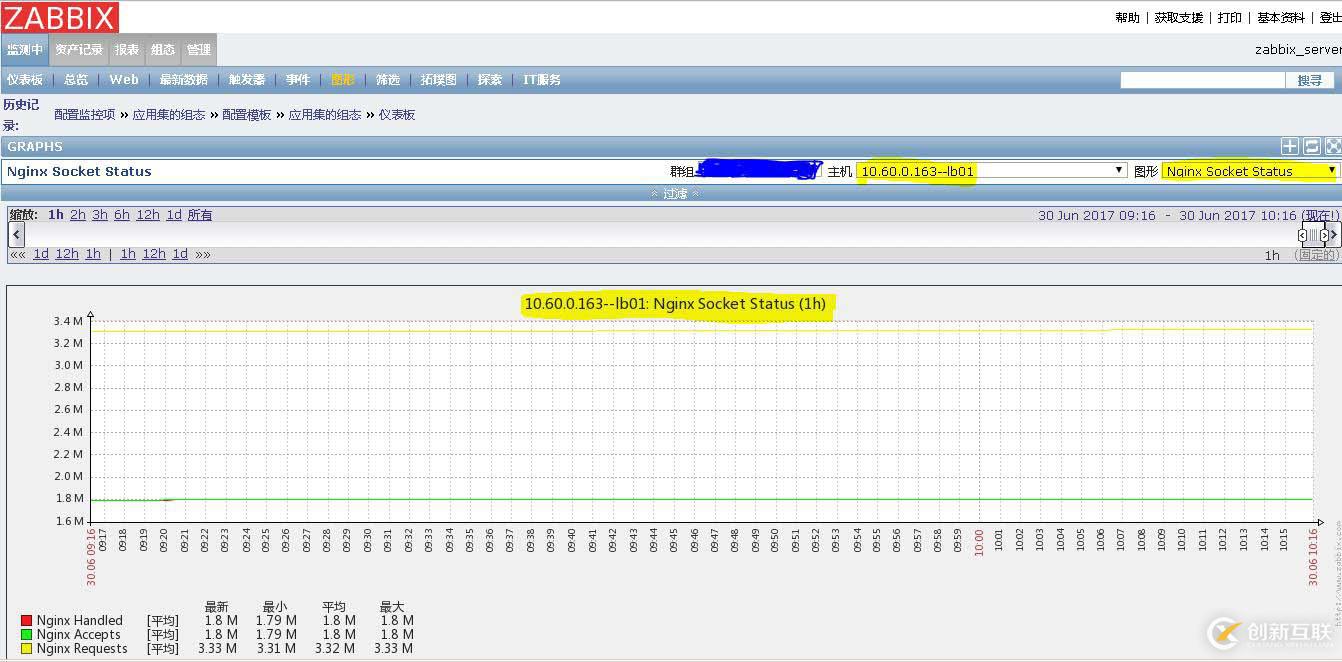

最后查看通過"監測中"--"圖形"選擇被監控主機的圖形名稱,來看看圖是否有加載Nginx Client Status,Nginx Socket Status;如果有,恭喜你,監控設置就說明成功了!
如果想做些告警之類的,可以在規則中設定觸發器即可了,因?yàn)榇蠹倚枨蟾鞑幌嗤?,故在此就不再多說了。
附件:http://down.51cto.com/data/2366804另外有需要云服務器可以了解下創新互聯cdcxhl.cn,海內外云服務器15元起步,三天無理由+7*72小時售后在線,公司持有idc許可證,提供“云服務器、裸金屬服務器、高防服務器、香港服務器、美國服務器、虛擬主機、免備案服務器”等云主機租用服務以及企業上云的綜合解決方案,具有“安全穩定、簡單易用、服務可用性高、性價比高”等特點與優勢,專為企業上云打造定制,能夠滿足用戶豐富、多元化的應用場景需求。
