前言：最近在給公司搞kafka和zookeeper容器化結合rancher的項目，查閱了相關官網和書籍，發現如果和公司的標準化關聯比較牽強，原因有很多，我簡單談一下我最后選擇自定義的原因：（因是個人本地二進制部署k8s+kakfa測試的，因此生產需要自己配置所需要的內存和cpu，動態持久化存儲等）
1、使用官網dockfile不能自定義jdk。
2、dockerfile和yaml關聯比較牽強，每個人有每個人的思路。
3、不能和公司之前物理機部署標準化文檔相結合。
.....
下面，我將花了半個月研究的部署分享一，有興趣者可加好友共同探討：
https://github.com/renzhiyuan6666666/kubernetes-docker

創新互聯長期為上千多家客戶提供的網站建設服務，團隊從業經驗10年，關注不同地域、不同群體，并針對不同對象提供差異化的產品和服務；打造開放共贏平臺，與合作伙伴共同營造健康的互聯網生態環境。為翔安企業提供專業的成都網站制作、成都網站設計，翔安網站改版等技術服務。擁有十多年豐富建站經驗和眾多成功案例,為您定制開發。

---

一、 zookeeper集群部署

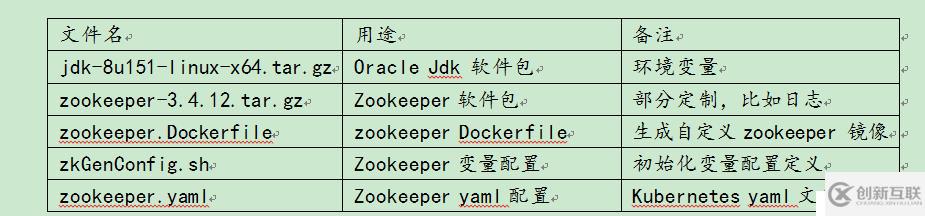

1.1） zookeeper文件清單
2.

1.2） zookeeper文件清單詳解
1.2.1）oracle jdk軟件包
? jdk-8u151-linux-x64.tar.gz
底層使用centos6.6鏡像，部署目錄到app目錄下，在dockerfile里面配置環境變量。
1.2.2）zookeeper軟件包
? zookeeper-3.4.12.tar.gz
底層使用centos6.6鏡像，部署目錄到app目錄下
1.2.3）zookeeper Dockerfile

#設置繼承鏡像
FROM centos:6.6

#作者的信息
MAINTAINER docker_user renzhiyuan

#Zookeeper和jdk標準化版本
#ENV JAVA_VERSION="1.8.0_151"
#ENV ZK_VERSION="3.4.12"
ENV ZK_JDK_HOME=/app
ENV JAVA_HOME=/app/jdk1.8.0_151
ENV ZK_HOME=/app/zookeeper
ENV LANG=en_US.utf8

#基礎使用包安裝配置
#RUN yum makecache
RUN yum install lsof yum-utils lrzsz net-tools nc -y &>/dev/null

#創建安裝目錄
RUN mkdir $ZK_JDK_HOME

#權限和變量
RUN chown -R root.root $ZK_JDK_HOME && chmod -R 755 $ZK_JDK_HOME

#安裝配置JDK
ADD jdk-8u151-linux-x64.tar.gz /app
RUN echo "export JAVA_HOME=/app/jdk1.8.0_151" >>/etc/profile
RUN echo "export PATH=\$JAVA_HOME/bin:\$PATH" >>/etc/profile
RUN echo "export CLASSPATH=.:\$JAVA_HOME/lib/dt.jar:\$JAVA_HOME/lib/tools.jar" >>/etc/profile && source /etc/profile

#安裝配置zookeeper-3.4.12,相關目錄整合到安裝包
ADD zookeeper-3.4.12.tar.gz /app
RUN ln -s /app/zookeeper-3.4.12 /app/zookeeper

#配置文件,日志切割，jvm標準化單獨在zkGenConfig.sh配置
COPY zkGenConfig.sh /app/zookeeper/bin/
#開放端口
EXPOSE 2181 10052

1.2.4）zkGenConfig.sh

# !/usr/bin/env
# Copyright 2016 The Kubernetes Authors.
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

#配置ZK相關變量
#ZK_USER=${ZK_USER:-"root"}
#ZK_LOG_LEVEL=${ZK_LOG_LEVEL:-"INFO"}
#ZK_HOME=${ZK_HOME:-"/app/zookeeper"}
ZK_DATA_DIR=${ZK_DATA_DIR:-"/app/zookeeper/data"}
ZK_DATA_LOG_DIR=${ZK_DATA_LOG_DIR:-"/app/zookeeper/datalog"}
ZK_LOG_DIR=${ZK_LOG_DIR:-"/app/zookeeper/logs"}
ZK_CONF_DIR=${ZK_CONF_DIR:-"/app/zookeeper/conf"}
LOGGER_PROPS_FILE="$ZK_CONF_DIR/log4j.properties"
#ZK_CLIENT_PORT=${ZK_CLIENT_PORT:-2181}
#ZK_SERVER_PORT=${ZK_SERVER_PORT:-2222}
#ZK_ELECTION_PORT=${ZK_ELECTION_PORT:-2223}
#ZK_TICK_TIME=${ZK_TICK_TIME:-3000}
#ZK_INIT_LIMIT=${ZK_INIT_LIMIT:-10}
#ZK_SYNC_LIMIT=${ZK_SYNC_LIMIT:-5}
#ZK_MAX_CLIENT_CNXNS=${ZK_MAX_CLIENT_CNXNS:-100}
#ZK_MIN_SESSION_TIMEOUT=${ZK_MIN_SESSION_TIMEOUT:- $((ZK_TICK_TIME*2))}
#ZK_MAX_SESSION_TIMEOUT=${ZK_MAX_SESSION_TIMEOUT:- $((ZK_TICK_TIME*20))}
#ZK_SNAP_RETAIN_COUNT=${ZK_SNAP_RETAIN_COUNT:-3}
#ZK_PURGE_INTERVAL=${ZK_PURGE_INTERVAL:-0}
ID_FILE="$ZK_DATA_DIR/myid"
ZK_CONFIG_FILE="$ZK_CONF_DIR/zoo.cfg"
JAVA_ENV_FILE="$ZK_CONF_DIR/java.env"

#副本數
#ZK_REPLICAS=3

#配置主機名和domain
HOST=`hostname -s`
DOMAIN=`hostname -d`
#ipdrr=`ip a|grep eth2|grep inet|awk '{print $2}'|awk -F"/" '{print $1}'`

#配置選舉端口和數據同步端口
function print_servers() {
    for (( i=1; i<=$ZK_REPLICAS; i++ ))
    do
        echo "server.$i=$NAME-$((i-1)).$DOMAIN:$ZK_SERVER_PORT:$ZK_ELECTION_PORT"
    done
}

#獲取hostName的最后一位，比如zookeeper-0獲取到0作為myid
function validate_env() {
    echo "Validating environment"

    if [ -z $ZK_REPLICAS ]; then
        echo "ZK_REPLICAS is a mandatory environment variable"
        exit 1
    fi

    if [[ $HOST =~ (.*)-([0-9]+)$ ]]; then
        NAME=${BASH_REMATCH[1]}
        ORD=${BASH_REMATCH[2]}
    else
        echo "Failed to extract ordinal from hostname $HOST"
        exit 1
    fi

    MY_ID=$((ORD+1))

    if [ ! -f $ID_FILE ]; then
        echo $MY_ID >> $ID_FILE
    fi
    #echo "ZK_REPLICAS=$ZK_REPLICAS"
    #echo "MY_ID=$MY_ID"
    #echo "ZK_LOG_LEVEL=$ZK_LOG_LEVEL"
    #echo "ZK_DATA_DIR=$ZK_DATA_DIR"
    #echo "ZK_DATA_LOG_DIR=$ZK_DATA_LOG_DIR"
    #echo "ZK_LOG_DIR=$ZK_LOG_DIR"
    #echo "ZK_CLIENT_PORT=$ZK_CLIENT_PORT"
    #echo "ZK_SERVER_PORT=$ZK_SERVER_PORT"
    #echo "ZK_ELECTION_PORT=$ZK_ELECTION_PORT"
    #echo "ZK_TICK_TIME=$ZK_TICK_TIME"
    #echo "ZK_INIT_LIMIT=$ZK_INIT_LIMIT"
    #echo "ZK_SYNC_LIMIT=$ZK_SYNC_LIMIT"
    #echo "ZK_MAX_CLIENT_CNXNS=$ZK_MAX_CLIENT_CNXNS"
    #echo "ZK_MIN_SESSION_TIMEOUT=$ZK_MIN_SESSION_TIMEOUT"
    #echo "ZK_MAX_SESSION_TIMEOUT=$ZK_MAX_SESSION_TIMEOUT"
    #echo "ZK_HEAP_SIZE=$ZK_HEAP_SIZE"
    #echo "ZK_SNAP_RETAIN_COUNT=$ZK_SNAP_RETAIN_COUNT"
    #echo "ZK_PURGE_INTERVAL=$ZK_PURGE_INTERVAL"
    #echo "ENSEMBLE"
    #print_servers
    #echo "Environment validation successful"
}

#配置ZK配置文件變量
function create_config() {

    #rm -f $ZK_CONFIG_FILE
    echo "dataDir=$ZK_DATA_DIR"                >>$ZK_CONFIG_FILE
    echo "dataLogDir=$ZK_DATA_LOG_DIR"         >>$ZK_CONFIG_FILE
    echo "tickTime=$ZK_TICK_TIME"              >>$ZK_CONFIG_FILE
    echo "initLimit=$ZK_INIT_LIMIT"            >>$ZK_CONFIG_FILE
    echo "syncLimit=$ZK_SYNC_LIMIT"            >>$ZK_CONFIG_FILE
    echo "clientPort=$ZK_CLIENT_PORT"          >>$ZK_CONFIG_FILE
    echo "maxClientCnxns=$ZK_MAX_CLIENT_CNXNS" >>$ZK_CONFIG_FILE

    if [ $ZK_REPLICAS -gt 1 ]; then
        print_servers                          >> $ZK_CONFIG_FILE
    fi

    echo "Write ZooKeeper configuration file to $ZK_CONFIG_FILE"
}

#創建ZK相關目錄和myid
#function create_data_dirs() {
#    echo "Creating ZooKeeper data directories and setting permissions"
#
#    if [ ! -d $ZK_DATA_DIR  ]; then
#        mkdir -p $ZK_DATA_DIR
#        chown -R $ZK_USER:$ZK_USER $ZK_DATA_DIR
#    fi
#
#    if [ ! -d $ZK_DATA_LOG_DIR  ]; then
#        mkdir -p $ZK_DATA_LOG_DIR
#        chown -R $ZK_USER:$ZK_USER $ZK_DATA_LOG_DIR
#    fi
#
#    if [ ! -d $ZK_LOG_DIR  ]; then
#        mkdir -p $ZK_LOG_DIR
#        chown -R $ZK_USER:$ZK_USER $ZK_LOG_DIR
#    fi
#
#    echo "Created ZooKeeper data directories and set permissions in $ZK_DATA_DIR"
#}

#配置日志切割
#function create_log_props () {
#    rm -f $LOGGER_PROPS_FILE
#    echo "Creating ZooKeeper log4j configuration"
#    echo "zookeeper.root.logger=CONSOLE" >> $LOGGER_PROPS_FILE
#    echo "zookeeper.console.threshold="$ZK_LOG_LEVEL >> $LOGGER_PROPS_FILE
#    echo "log4j.rootLogger=\${zookeeper.root.logger}" >> $LOGGER_PROPS_FILE
#    echo "log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender" >> $LOGGER_PROPS_FILE
#    echo "log4j.appender.CONSOLE.Threshold=\${zookeeper.console.threshold}" >> $LOGGER_PROPS_FILE
#    echo "log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout" >> $LOGGER_PROPS_FILE
#    echo "log4j.appender.CONSOLE.layout.ConversionPattern=%d{ISO8601} [myid:%X{myid}] - %-5p [%t:%C{1}@%L] - %m%n" >> $LOGGER_PROPS_FILE
#    echo "Wrote log4j configuration to $LOGGER_PROPS_FILE"
#}

#配置啟動jmx配置
function create_java_env() {
    rm -f $JAVA_ENV_FILE
    echo "Creating JVM configuration file"
    echo '#!/bin/bash'          >> $JAVA_ENV_FILE
    echo "export JMXPORT=10052" >> $JAVA_ENV_FILE
    echo "JVMFLAGS=\"\$JVMFLAGS -Xms256m -Xmx256m -Djute.maxbuffer=5000000 -Xloggc:gc.log -XX:+PrintGCApplicationStoppedTime -XX:+PrintGCApplicationConcurrentTime -XX:+PrintGC -XX:+PrintGCTimeStamps -XX:+PrintGCDetails -XX:ParallelGCThreads=8 -XX:+UseConcMarkSweepGC\""    >> $JAVA_ENV_FILE
    echo "Wrote JVM configuration to $JAVA_ENV_FILE"
}

validate_env && create_config  && create_java_env &&  cat $ZK_CONFIG_FILE && cat $JAVA_ENV_FILE

1.2.5）zookeeper.yaml

# !/usr/bin/env
#部署 Service Headless，用于Zookeeper間相互通信
apiVersion: v1
kind: Service
metadata:
  name: zookeeper-headless
  labels:
    app: zookeeper
spec:
  clusterIP: None
  publishNotReadyAddresses: true
  ports:
  - name: client
    port: 2181
    targetPort: client
  - name: server
    port: 2222
    targetPort: server
  - name: leader-election
    port: 2223
    targetPort: leader-election
  selector:
    app: zookeeper
---
#部署 Service，用于外部訪問 Zookeeper
apiVersion: v1
kind: Service
metadata:
  name: zookeeper
  labels:
    app: zookeeper
spec:
  type: NodePort
  ports:
  - name: client
    port: 2181
    targetPort: 2181
    nodePort: 32181
    protocol: TCP
  selector:
    app: zookeeper
---
#配置控制器保證POD集群處于運行狀態最低個數
apiVersion: policy/v1beta1
kind: PodDisruptionBudget
metadata:
  name: zk-pdb
spec:
  selector:
    matchLabels:
      app: zookeeper
  minAvailable: 2
---
#配置StatefulSet
apiVersion: apps/v1beta2
kind: StatefulSet
metadata:
  name: zookeeper
spec:
  podManagementPolicy: OrderedReady
  replicas: 3
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: zookeeper
  serviceName: zookeeper-headless
  template:
    metadata:
      annotations:
      labels:
        app: zookeeper
    spec:
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                  - key: "app"
                    operator: In
                    values:
                    - zookeeper
              topologyKey: "kubernetes.io/hostname"
      containers:
      - name: zookeeper
        imagePullPolicy: Always
        image: 192.168.8.183/library/zookeeper-zyxf:3.4.12
        resources:
          requests:
            memory: "512m"
            cpu: "500m"
        ports:
        - containerPort: 2181
          name: client
        - containerPort: 2222
          name: server
        - containerPort: 2223
          name: leader-election
        env:
        - name : ZK_REPLICAS
          value: "3"
        - name : ZK_DATA_DIR
          value: "/app/zookeeper/data"
        - name : ZK_DATA_LOG_DIR
          value: "/app/zookeeper/dataLog"
        - name : ZK_TICK_TIME
          value: "3000"
        - name : ZK_INIT_LIMIT
          value: "10"
        - name : ZK_SYNC_LIMIT
          value: "5"
        - name : ZK_MAX_CLIENT_CNXNS
          value: "100"
        - name: ZK_CLIENT_PORT
          value: "2181"
        - name: ZK_SERVER_PORT
          value: "2222"
        - name: ZK_ELECTION_PORT
          value: "2223"
        command:
        - sh
        - -c
        - /app/zookeeper/bin/zkGenConfig.sh &&  /app/zookeeper/bin/zkServer.sh start-foreground
        volumeMounts:
        - name: datadir
          mountPath: /app/zookeeper/dataLog
      volumes:
      - name: datadir
        hostPath:
          path: /zk
          type: DirectoryOrCreate
#        volumeMounts:
#        - name: data
#          mountPath: /renzhiyuan/zookeeper
#  volumeClaimTemplates:
#  - metadata:
#      name: data
#    spec:
#      accessModes: [ "ReadWriteOnce" ]
#      storageClassName: local-storage
#      resources:
#        requests:
#          storage: 3Gi
*

1.3）zookeeper鏡像生成上傳
1.3.1）zookeeper鏡像打包
docker build -t zookeeper:3.4.12 -f zookeeper.Dockerfile .
docker tag zookeeper:3.4.12 192.168.8.183/library/zookeeper-zyxf:3.4.12

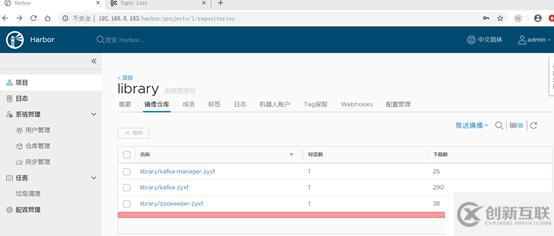

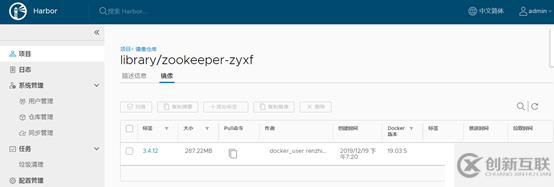

1.3.2）zookeeper鏡像上傳harbor倉庫
docker login 192.168.8.183 -u admin -p renzhiyuan
docker push 192.168.8.183/library/zookeeper-zyxf

1.4）zookeeper部署

1.4）zookeeper部署
1.4.1）zookeeper部署
kubectl apply -f zookeeper.yaml
1.4.2）zookeeper部署過程檢查
[root@node7 ~]# kubectl describe pods zookeeper-
zookeeper-0 zookeeper-1 zookeeper-2
kubectl get pods -w -l app=zookeeper

1.5） zookeeper集群驗證
1.5.1）檢查 zookeeper StatefulSet 中 Pods 分布
[root@node7 ~]# kubectl get pods -o wide

1.5.2）檢查 zookeeper StatefulSet 中 Pods 主機名
for i in 0 1 2; do kubectl exec zookeeper-$i – hostname ; done

1.5.3) 檢查 zookeeper StatefulSet 中myid標識
for i in 0 1 2; do echo "myid zookeeper-$i";kubectl exec zookeeper-$i -- cat /app/zookeeper/data/myid; done

1.5.4) 檢查 zookeeper StatefulSet 中FQDN (正式域名)
for i in 0 1 2; do kubectl exec zookeeper-$i -- hostname -f; done

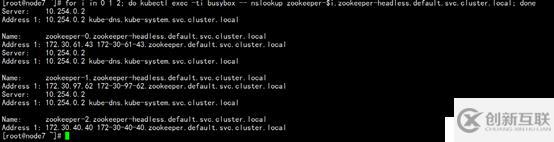

1.5.5) 檢查 zookeeper StatefulSet pods中DNS解析
for i in 0 1 2; do kubectl exec -ti busybox -- nslookup zookeeper-$i.zookeeper-headless.default.svc.cluster.local; done

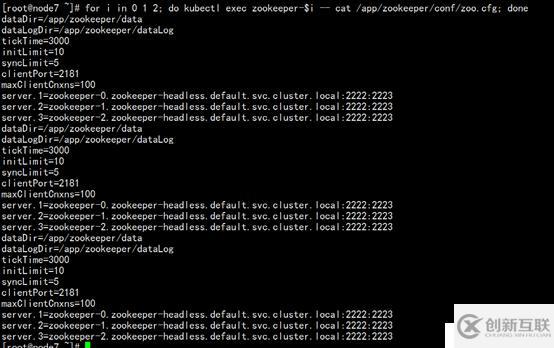

1.5.6) 檢查 zookeeper StatefulSet zoo.cfg配置文件標準化

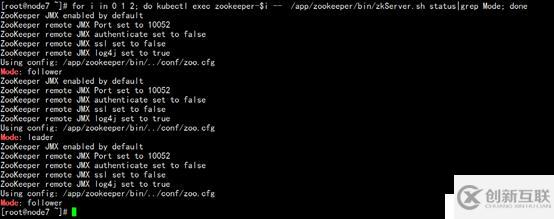

1.5.7) 檢查 zookeeper StatefulSet 集群狀態
for i in 0 1 2; do kubectl exec zookeeper-$i -- /app/zookeeper/bin/zkServer.sh status|grep Mode; done

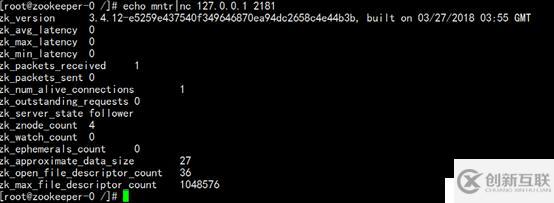

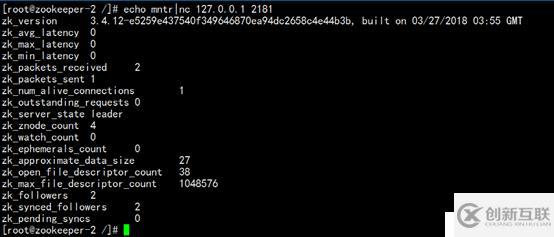

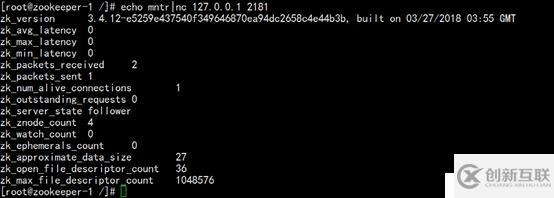

1.5.8) 檢查 zookeeper StatefulSet 四字命令檢驗

1.6） zookeeper集群擴容
二、 kafka集群部署

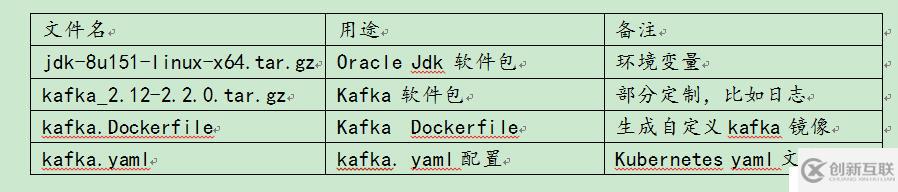

2.1）kafka文件清單

2.2） kafka文件清單詳解
2.2.1）oracle jdk軟件包
? jdk-8u151-linux-x64.tar.gz
底層使用centos6.6鏡像，部署目錄到app目錄下，在dockerfile里面配置環境變量。
2.2.2）zookeeper軟件包
? kafka_2.12-2.2.0.tar.gz
底層使用centos6.6鏡像，部署目錄到app目錄下
2.2.3）kafka Dockerfile

#設置繼承鏡像
FROM centos:6.6

#作者的信息
MAINTAINER docker_user （renzhiyuan@docker.com）

#kafka和jdk標準化版本
ENV JAVA_VERSION="1.8.0_151"
ENV KAFKA_VERSION="2.2.0"
ENV KAFKA_JDK_HOME=/app
ENV JAVA_HOME=/app/jdk1.8.0_151
ENV KAFKA_HOME=/app/kafka
ENV LANG=en_US.utf8

#基礎使用包安裝配置
#RUN yum makecache
RUN yum install lsof yum-utils lrzsz net-tools nc -y &>/dev/null

#創建安裝目錄
RUN mkdir $KAFKA_JDK_HOME

#權限和變量
RUN chown -R root.root $KAFKA_JDK_HOME && chmod -R 755 $KAFKA_JDK_HOME

#安裝配置JDK
ADD jdk-8u151-linux-x64.tar.gz /app
RUN echo "export JAVA_HOME=/app/jdk1.8.0_151" >>/etc/profile
RUN echo "export PATH=\$JAVA_HOME/bin:\$PATH" >>/etc/profile
RUN echo "export CLASSPATH=.:\$JAVA_HOME/lib/dt.jar:\$JAVA_HOME/lib/tools.jar" >>/etc/profile

#安裝配置Kafka和創建目錄
ADD kafka_2.12-2.2.0.tar.gz /app
RUN ln -s /app/kafka_2.12-2.2.0 /app/kafka

#配置文件,日志切割，jvm標準化單獨在kafkaGenConfig.sh配置

#開放端口
EXPOSE 9092 9999

2.2.4）kafka.yaml
#部署 Service Headless，用于Kafka間相互通信
apiVersion: v1
kind: Service
metadata:
  name: kafka-headless
  labels:
    app: kafka
spec:
  type: ClusterIP
  clusterIP: None
  ports:
  - name: kafka
    port: 9092
    targetPort: kafka
  selector:
    app: kafka
---
#部署 Service，用于外部訪問 kafka
apiVersion: v1
kind: Service
metadata:
  name: kafka
  labels:
    app: kafka
spec:
  type: NodePort
  ports:
  - name: kafka
    port: 9092
    targetPort: 9092
    nodePort: 32192
    protocol: TCP
  selector:
    app: kafka
---
#配置控制器保證POD集群處于運行狀態最低個數
apiVersion: policy/v1beta1
kind: PodDisruptionBudget
metadata:
  name: kafka-pdb
spec:
  selector:
    matchLabels:
      app: kafka
  minAvailable: 2
---
#配置StatefulSet
apiVersion: apps/v1beta2
kind: StatefulSet
metadata:
  name: kafka
spec:
  podManagementPolicy: OrderedReady
  replicas: 3
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: kafka
  serviceName: kafka-headless
  template:
    metadata:
      annotations:
      labels:
        app: kafka
    spec:
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                  - key: "app"
                    operator: In
                    values:
                    - kafka
              topologyKey: "kubernetes.io/hostname"
      containers:
      - name: kafka
        imagePullPolicy: Always
        image: 192.168.8.183/library/kafka-zyxf:2.2.0
        resources:
          requests:
            memory: "500m"
            cpu: "256m"
        ports:
        - containerPort: 9092
          name: kafka
        env:
        - name: KAFKA_HEAP_OPTS
          value : "-Xmx256M -Xms256M"
        command:
        - sh
        - -c
        - "/app/kafka/bin/kafka-server-start.sh /app/kafka/config/server.properties  \
          --override broker.id=${HOSTNAME##*-} \
          --override zookeeper.connect=zookeeper:2181 \
          --override listeners=PLAINTEXT://:9092  \
          --override advertised.listeners=PLAINTEXT://:9092  \
          --override broker.id.generation.enable=false  \
          --override auto.create.topics.enable=false \
          --override min.insync.replicas=2 \
          --override log.dir= \
          --override log.dirs=/app/kafka/kafka-logs \
          --override offsets.retention.minutes=10080 \
          --override default.replication.factor=3 \
          --override queued.max.requests=2000 \
          --override num.network.threads=8 \
          --override num.io.threads=16 \
          --override auto.create.topics.enable=false \
          --override socket.send.buffer.bytes=1048576 \
          --override socket.receive.buffer.bytes=1048576 \
          --override num.replica.fetchers=4 \
          --override replica.fetch.max.bytes=5242880 \
          --override replica.socket.receive.buffer.bytes=1048576"
        volumeMounts:
        - name: datadir
          mountPath: /app/kafka/kafka-logs
      volumes:
      - name: datadir
        hostPath:
          path: /kafka
          type: DirectoryOrCreate
#        emptyDir: {}
#        volumeMounts:
#        - name: data
#          mountPath: /renzhiyuan/kafka
#  volumeClaimTemplates:
#  - metadata:
#      name: data
#    spec:
#      accessModes: [ "ReadWriteOnce" ]
#      storageClassName: local-storage
#      resources:
#        requests:
#          storage: 3Gi

2.3）kafka鏡像生成上傳
2.3.1）zookeeper鏡像打包
docker build -t kafka:2.2.0 -f kafka.Dockerfile .
docker tag kafka:2.2.0 192.168.8.183/library/kafka-zyxf:2.2.0
2.3.2）zookeeper鏡像上傳harbor倉庫
docker login 192.168.8.183 -u admin -p renzhiyuan
docker push 192.168.8.183/library/kafka-zyxf:2.2.0
2.4）kafka部署
2.4.1）kafka部署
kubectl apply -f kafka.yaml
2.4.2）kafka部署過程檢查
[root@node7 ~]# kubectl describe pods kafka-
kafka-0 kafka-1 kafka-2
[root@node7 ~]#
kubectl get pods -w -l app=kafka

2.5）kafka集群驗證
2.5.1）檢查 kafka StatefulSet 中 Pods 分布

2.5.2）檢查 kafka StatefulSet 中 Pods 主機名
for i in 0 1 2; do kubectl exec kafka-$i -- hostname ; done

2.5.3) 檢查 kafka StatefulSet 中FQDN (正式域名)
for i in 0 1 2; do kubectl exec kafka-$i -- hostname -f; done

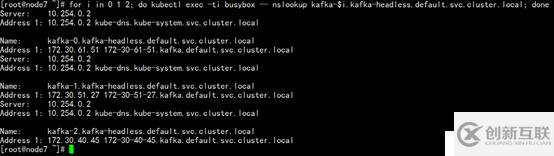

2.5.4) 檢查 kafka StatefulSet pods中dns解析
for i in 0 1 2; do kubectl exec -ti busybox -- nslookup kafka-$i.kafka-headless.default.svc.cluster.local; done

2.5.5) 檢查 kafka StatefulSet server.properties配置文件標準化
for i in 0 1 2; do echo kafka-$i; kubectl exec kafka-$i cat /app/kafka/logs/server.log|grep "auto.create.topics.enable = false"; done
2.5.6) 檢查 kafka StatefulSet 集群驗證
? 創建一個topic
kubectl exec kafka-1 -- /app/kafka/bin/kafka-topics.sh --create --zookeeper zookeeper:2181 --replication-factor 3 --partitions 6 --topic renzhiyuan
? 檢查topic信息
kubectl exec kafka-1 -- /app/kafka/bin/kafka-topics.sh --describe --zookeeper zookeeper:2181 --topic renzhiyuan
?
生產消息
/app/kafka/bin/kafka-console-producer.sh --broker-list kafka:9092 --topic renzhiyuan

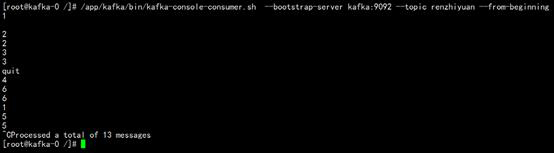

? 消費消息
/app/kafka/bin/kafka-console-consumer.sh --bootstarp-server kafka:9092 --from-beginning --topic renzhiyuan


2.6）kafka集群擴容
2.3.1）kafka擴容到6實例
kubectl scale --replicas=6 StatefulSet/kafka
statefulset.apps/kafka scaled
[root@node7 ~]#

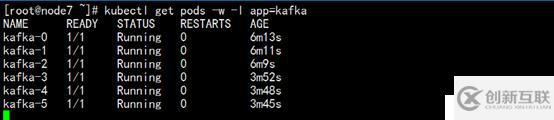

2.3.2）kafka擴容過程檢查
[root@node7 ~]# kubectl describe pods kafka-
kafka-0 kafka-2 kafka-4
kafka-1 kafka-3 kafka-5
[root@node7 ~]#
kubectl get pods -w -l app=kafka

? 創建一個topic
kubectl exec kafka-3 -- /app/kafka/bin/kafka-topics.sh --create --zookeeper zookeeper:2181 --replication-factor 3 --partitions 6 --topic renzhiyuan2
? 檢查topic信息
kubectl exec kafka-3 -- /app/kafka/bin/kafka-topics.sh --describe --zookeeper zookeeper:2181 --topic renzhiyuan2

三、 Kafka manager管理端部署

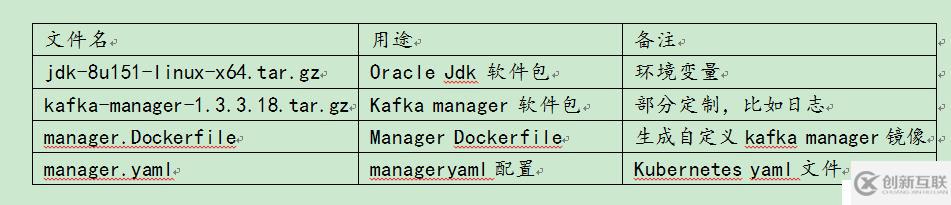

3.1）kafka manager文件清單

3.2） kafka manager文件清單詳解
3.3）kafka manager 鏡像生成上傳
3.3.1）zookeeper鏡像打包
docker build -t kafka-manager:1.3.3.18 -f manager.Dockerfile .
docker tag kafka-manager:1.3.3.18 192.168.8.183/library/ kafka-manager-zyxf: 1.3.3.18
3.3.2）zookeeper鏡像上傳harbor倉庫
docker login 192.168.8.183 -u admin -p renzhiyuan
docker push 192.168.8.183/library/kafka-manager-zyxf

3.4）kafka manager 部署
[root@node7 ~]# kubectl apply -f manager.yaml

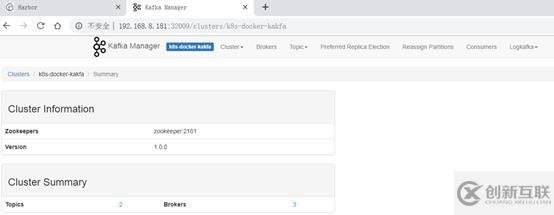

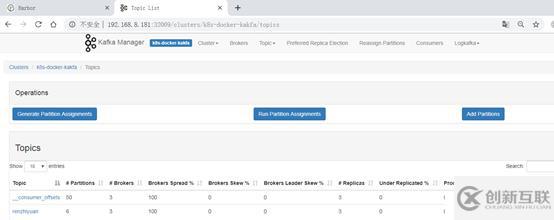

3.5）kafka manager驗證

http://192.168.8.181:32009/

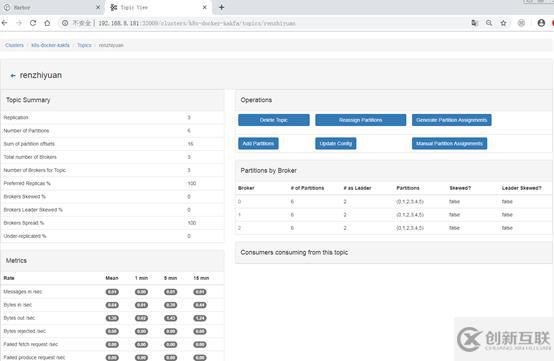

3.5.1）擴容前驗證

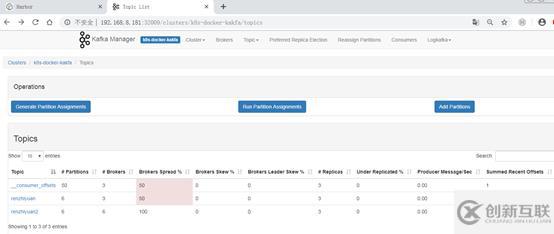

3.5.2）擴容后驗證

分享文章：Kubernetes+docker-DIY-kafka+zookeeper+manager集群部署
路徑分享：http://jinyejixie.com/article36/gpggpg.html

成都網站建設公司_創新互聯，為您提供網站策劃、手機網站建設、做網站、移動網站建設、軟件開發、網站營銷

廣告

聲明：本網站發布的內容（圖片、視頻和文字）以用戶投稿、用戶轉載內容為主，如果涉及侵權請盡快告知，我們將會在第一時間刪除。文章觀點不代表本網站立場，如需處理請聯系客服。電話：028-86922220；郵箱：631063699@qq.com。內容未經允許不得轉載，或轉載時需注明來源： 創新互聯
