這篇文章主要介紹了keras模型可視化、層可視化及kernel可視化的示例分析,具有一定借鑒價值,感興趣的朋友可以參考下,希望大家閱讀完這篇文章之后大有收獲,下面讓小編帶著大家一起了解一下。
創新互聯是一家集網站建設,鄲城企業網站建設,鄲城品牌網站建設,網站定制,鄲城網站建設報價,網絡營銷,網絡優化,鄲城網站推廣為一體的創新建站企業,幫助傳統企業提升企業形象加強企業競爭力??沙浞譂M足這一群體相比中小企業更為豐富、高端、多元的互聯網需求。同時我們時刻保持專業、時尚、前沿,時刻以成就客戶成長自我,堅持不斷學習、思考、沉淀、凈化自己,讓我們?yōu)楦嗟钠髽I(yè)打造出實用型網站。keras模型可視化:
model: model = Sequential() # input: 100x100 images with 3 channels -> (100, 100, 3) tensors. # this applies 32 convolution filters of size 3x3 each. model.add(ZeroPadding2D((1,1), input_shape=(38, 38, 1))) model.add(Conv2D(32, (3, 3), activation='relu', padding='same')) # model.add(Conv2D(32, (3, 3), activation='relu', padding='same')) model.add(BatchNormalization()) model.add(MaxPooling2D(pool_size=(2, 2))) model.add(Dropout(0.25)) model.add(Conv2D(64, (3, 3), activation='relu', padding='same',)) # model.add(Conv2D(64, (3, 3), activation='relu', padding='same',)) model.add(BatchNormalization()) model.add(MaxPooling2D(pool_size=(2, 2))) model.add(Dropout(0.25)) model.add(Conv2D(128, (3, 3), activation='relu', padding='same',)) # model.add(Conv2D(128, (3, 3), activation='relu', padding='same',)) model.add(BatchNormalization()) model.add(MaxPooling2D(pool_size=(2, 2))) model.add(Dropout(0.25)) model.add(AveragePooling2D((5,5))) model.add(Flatten()) # model.add(Dense(512, activation='relu')) # model.add(Dropout(0.5)) model.add(Dense(label_size, activation='softmax'))

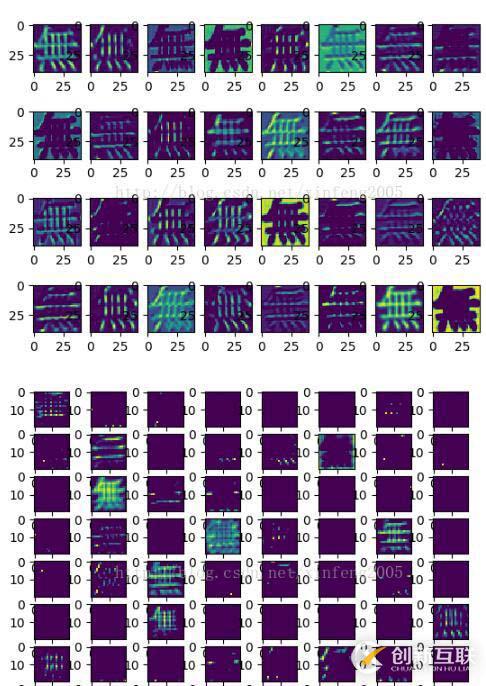

1.層可視化:
test_x = [] img_src = cv2.imdecode(np.fromfile(r'c:\temp.tif', dtype=np.uint8), cv2.IMREAD_GRAYSCALE) img = cv2.resize(img_src, (38, 38), interpolation=cv2.INTER_CUBIC) # img = np.random.randint(0,255,(38,38)) img = (255 - img) / 255 img = np.reshape(img, (38, 38, 1)) test_x.append(img) ################################################################### layer = model.layers[1] weight = layer.get_weights() # print(weight) print(np.asarray(weight).shape) model_v1 = Sequential() # input: 100x100 images with 3 channels -> (100, 100, 3) tensors. # this applies 32 convolution filters of size 3x3 each. model_v1.add(ZeroPadding2D((1, 1), input_shape=(38, 38, 1))) model_v1.add(Conv2D(32, (3, 3), activation='relu', padding='same')) # model.add(Conv2D(32, (3, 3), activation='relu', padding='same')) model_v1.layers[1].set_weights(weight) re = model_v1.predict(np.array(test_x)) print(np.shape(re)) re = np.transpose(re, (0,3,1,2)) for i in range(32): plt.subplot(4,8,i+1) plt.imshow(re[0][i]) #, cmap='gray' plt.show() ################################################################## model_v2 = Sequential() # input: 100x100 images with 3 channels -> (100, 100, 3) tensors. # this applies 32 convolution filters of size 3x3 each. model_v2.add(ZeroPadding2D((1, 1), input_shape=(38, 38, 1))) model_v2.add(Conv2D(32, (3, 3), activation='relu', padding='same')) # model.add(Conv2D(32, (3, 3), activation='relu', padding='same')) model_v2.add(BatchNormalization()) model_v2.add(MaxPooling2D(pool_size=(2, 2))) model_v2.add(Dropout(0.25)) model_v2.add(Conv2D(64, (3, 3), activation='relu', padding='same', )) print(len(model_v2.layers)) layer1 = model.layers[1] weight1 = layer1.get_weights() model_v2.layers[1].set_weights(weight1) layer5 = model.layers[5] weight5 = layer5.get_weights() model_v2.layers[5].set_weights(weight5) re2 = model_v2.predict(np.array(test_x)) re2 = np.transpose(re2, (0,3,1,2)) for i in range(64): plt.subplot(8,8,i+1) plt.imshow(re2[0][i]) #, cmap='gray' plt.show() ################################################################## model_v3 = Sequential() # input: 100x100 images with 3 channels -> (100, 100, 3) tensors. # this applies 32 convolution filters of size 3x3 each. model_v3.add(ZeroPadding2D((1, 1), input_shape=(38, 38, 1))) model_v3.add(Conv2D(32, (3, 3), activation='relu', padding='same')) # model.add(Conv2D(32, (3, 3), activation='relu', padding='same')) model_v3.add(BatchNormalization()) model_v3.add(MaxPooling2D(pool_size=(2, 2))) model_v3.add(Dropout(0.25)) model_v3.add(Conv2D(64, (3, 3), activation='relu', padding='same', )) # model.add(Conv2D(64, (3, 3), activation='relu', padding='same',)) model_v3.add(BatchNormalization()) model_v3.add(MaxPooling2D(pool_size=(2, 2))) model_v3.add(Dropout(0.25)) model_v3.add(Conv2D(128, (3, 3), activation='relu', padding='same', )) print(len(model_v3.layers)) layer1 = model.layers[1] weight1 = layer1.get_weights() model_v3.layers[1].set_weights(weight1) layer5 = model.layers[5] weight5 = layer5.get_weights() model_v3.layers[5].set_weights(weight5) layer9 = model.layers[9] weight9 = layer9.get_weights() model_v3.layers[9].set_weights(weight9) re3 = model_v3.predict(np.array(test_x)) re3 = np.transpose(re3, (0,3,1,2)) for i in range(121): plt.subplot(11,11,i+1) plt.imshow(re3[0][i]) #, cmap='gray' plt.show()
2.kernel可視化:
def process(x): res = np.clip(x, 0, 1) return res def dprocessed(x): res = np.zeros_like(x) res += 1 res[x < 0] = 0 res[x > 1] = 0 return res def deprocess_image(x): x -= x.mean() x /= (x.std() + 1e-5) x *= 0.1 x += 0.5 x = np.clip(x, 0, 1) x *= 255 x = np.clip(x, 0, 255).astype('uint8') return x for i_kernal in range(64): input_img=model.input loss = K.mean(model.layers[5].output[:, :,:,i_kernal]) # loss = K.mean(model.output[:, i_kernal]) # compute the gradient of the input picture wrt this loss grads = K.gradients(loss, input_img)[0] # normalization trick: we normalize the gradient grads /= (K.sqrt(K.mean(K.square(grads))) + 1e-5) # this function returns the loss and grads given the input picture iterate = K.function([input_img, K.learning_phase()], [loss, grads]) # we start from a gray image with some noise np.random.seed(0) num_channels=1 img_height=img_width=38 input_img_data = (255- np.random.randint(0,255,(1, img_height, img_width, num_channels))) / 255. failed = False # run gradient ascent print('####################################',i_kernal+1) loss_value_pre=0 for i in range(10000): # processed = process(input_img_data) # predictions = model.predict(input_img_data) loss_value, grads_value = iterate([input_img_data,1]) # grads_value *= dprocessed(input_img_data[0]) if i%1000 == 0: # print(' predictions: ' , np.shape(predictions), np.argmax(predictions)) print('Iteration %d/%d, loss: %f' % (i, 10000, loss_value)) print('Mean grad: %f' % np.mean(grads_value)) if all(np.abs(grads_val) < 0.000001 for grads_val in grads_value.flatten()): failed = True print('Failed') break # print('Image:\n%s' % str(input_img_data[0,0,:,:])) if loss_value_pre != 0 and loss_value_pre > loss_value: break if loss_value_pre == 0: loss_value_pre = loss_value # if loss_value > 0.99: # break input_img_data += grads_value * 1 #e-3 plt.subplot(8, 8, i_kernal+1) # plt.imshow((process(input_img_data[0,:,:,0])*255).astype('uint8'), cmap='Greys') #cmap='Greys' img_re = deprocess_image(input_img_data[0]) img_re = np.reshape(img_re, (38,38)) plt.imshow(img_re, cmap='Greys') #cmap='Greys' # plt.show() plt.show()
model.layers[1]

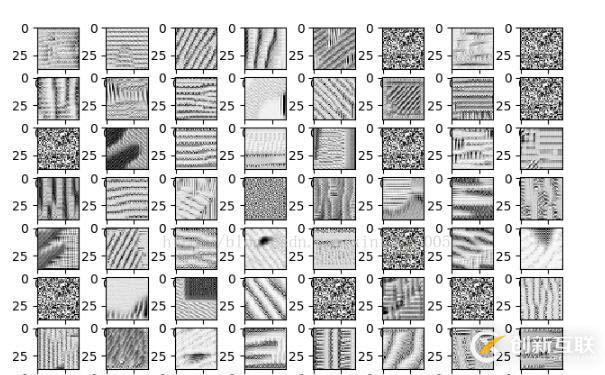

model.layers[5]

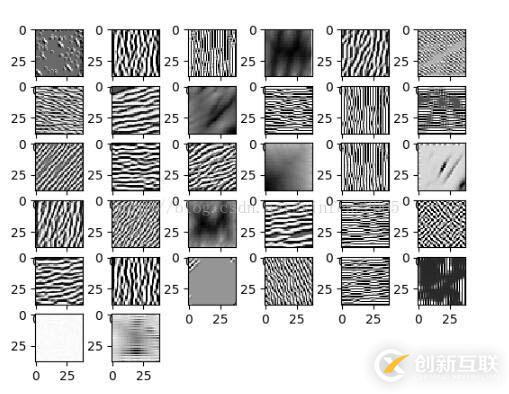

model.layers[-1]
感謝你能夠認真閱讀完這篇文章,希望小編分享的“keras模型可視化、層可視化及kernel可視化的示例分析”這篇文章對大家有幫助,同時也希望大家多多支持創新互聯,關注創新互聯行業資訊頻道,更多相關知識等著你來學習!
