微服務Consul代碼dome-創新互聯

一： consul 的配置的有兩種方式，這里主要介紹通過代碼注冊服務

白水網站制作公司哪家好，找創新互聯！從網頁設計、網站建設、微信開發、APP開發、成都響應式網站建設公司等網站項目制作，到程序開發，運營維護。創新互聯于2013年成立到現在10年的時間，我們擁有了豐富的建站經驗和運維經驗，來保證我們的工作的順利進行。專注于網站建設就選創新互聯。

Consul官網：https://www.consul.io/
Consul的主要功能有服務注冊與發現、健康檢查、K-V存儲、多數據中心等。

Consul安裝：很簡單，直接在官網下載解壓即可。
Consul運行：在consul.exe目錄下打開命令行執行 consul.exe agent -dev
瀏覽器訪問：http://localhost:8500/

分別建3個項目 Api.Catalog，Api.Ordering，Provider.Consul

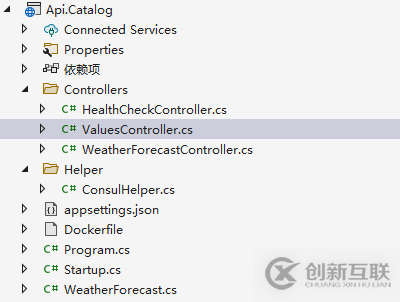

Api.Catalog和Api.Ordering 服務結構 一樣，端口可以用不同

using Consul;
using Microsoft.AspNetCore.Builder;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.Hosting;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

namespace Api.Catalog.Helper
{
public static class ConsulHelper
    {
/// <summary>   /// 服務注冊到consul
/// </summary>   /// <param name="app"></param>   /// <param name="lifetime"></param>   public static IApplicationBuilder RegisterConsul(this IApplicationBuilder app, IConfiguration configuration, IHostApplicationLifetime lifetime)
        {
var consulClient = new ConsulClient(c =>
            {
//consul地址                c.Address = new Uri(configuration["ConsulSetting:ConsulAddress"]);
            });

var registration = new AgentServiceRegistration()
            {
                ID= Guid.NewGuid().ToString(),//服務實例唯一標識                Name = configuration["ConsulSetting:ServiceName"],//服務名                Address = configuration["ConsulSetting:ServiceIP"], //服務IP                Port = int.Parse(configuration["ConsulSetting:ServicePort"]),//服務端口 因為要運行多個實例，端口不能在appsettings.json里配置，在docker容器運行時傳入                Check = new AgentServiceCheck()
                {
                    DeregisterCriticalServiceAfter= TimeSpan.FromSeconds(5),//服務啟動多久后注冊                    Interval = TimeSpan.FromSeconds(10),//健康檢查時間間隔                    HTTP = $"http://{configuration["ConsulSetting:ServiceIP"]}:{configuration["ConsulSetting:ServicePort"]}{configuration["ConsulSetting:ServiceHealthCheck"]}",//健康檢查地址                    Timeout = TimeSpan.FromSeconds(5)//等待時間                }
            };

//服務注冊            consulClient.Agent.ServiceRegister(registration).Wait();

//應用程序終止時，取消注冊            lifetime.ApplicationStopping.Register(() =>
            {
                consulClient.Agent.ServiceDeregister(registration.ID).Wait();
            });

return app;
        }
    }
}

using Microsoft.AspNetCore.Mvc;

namespace Api.Catalog.Controllers
{
    [Route("[controller]")]
    [ApiController]
public class HealthCheckController : ControllerBase
    {
/// <summary>   /// 健康檢查接口
/// </summary>   /// <returns></returns>        [HttpGet]
public IActionResult Get() => Ok();
    }
}

using Microsoft.AspNetCore.Mvc;
using System.Collections.Generic;

namespace Api.Catalog.Controllers
{
    [Route("api/[controller]")]
    [ApiController]
public class ValuesController : ControllerBase
    {
        [HttpGet]
public IEnumerable<string> Get()
        {
return new string[] { "Api.Catalog1", "Api.Catalog2" };
        }

        [HttpGet("{id}")]
public string Get(int id)
        {
return "Api.Catalog";
        }
    }
}

{
"Logging": {
"LogLevel": {
"Default": "Information",
"Microsoft": "Warning",
"Microsoft.Hosting.Lifetime": "Information"
    }
  },
"AllowedHosts": "*",
"ConsulSetting": {
"ServiceName": "CatalogService",
"ServiceHealthCheck": "/healthcheck",
"ConsulAddress": "http://localhost:8500", //注意，docker容器內部無法使用localhost訪問宿主機器，如果是控制臺啟動的話就用localhost  "ServiceIP": "localhost",
"ServicePort": 52457
  }
}

Startup.cs

using Api.Catalog.Helper;
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using Microsoft.Extensions.Logging;
using Microsoft.OpenApi.Models;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

namespace Api.Catalog
{
public class Startup
    {
public Startup(IConfiguration configuration)
        {
            Configuration= configuration;
        }

public IConfiguration Configuration { get; }

// This method gets called by the runtime. Use this method to add services to the container.   public void ConfigureServices(IServiceCollection services)
        {

            services.AddControllers();
            services.AddSwaggerGen(c=>
            {
                c.SwaggerDoc("v1", new OpenApiInfo { Title = "Api.Catalog", Version = "v1" });
            });
        }

// This method gets called by the runtime. Use this method to configure the HTTP request pipeline.   public void Configure(IApplicationBuilder app, IWebHostEnvironment env, IHostApplicationLifetime lifetime)
        {
if (env.IsDevelopment())
            {
                app.UseDeveloperExceptionPage();
                app.UseSwagger();
                app.UseSwaggerUI(c=> c.SwaggerEndpoint("/swagger/v1/swagger.json", "Api.Catalog v1"));
            }

            app.UseRouting();

            app.UseAuthorization();

            app.UseEndpoints(endpoints=>
            {
                endpoints.MapControllers();
            });

//服務注冊            app.RegisterConsul(Configuration, lifetime);
        }
    }
}

Provider.Consul 項目結構

ocelot.json 配置

{
"GlobalConfiguration": {
//Ocelot應用地址  "BaseUrl": "http://localhost:2808",
"ServiceDiscoveryProvider": {
//Consul地址 "Host": "http://localhost/",
//Consul端口 "Port": 8500,
"Type": "Consul" //由Consul提供服務發現，每次請求Consul    }
  },
"Routes": [
    {
"DownstreamPathTemplate": "/api/{everything}",
"DownstreamScheme": "http",
"DownstreamHostAndPorts": [
        {
"Host": "localhost",
"Port": 52457
        },
        {
"Host": "localhost",
"Port": 41097
        }
      ],
"UpstreamPathTemplate": "/{everything}",
"UpstreamHttpMethod": [ "Get", "Post" ],
"LoadBalancerOptions": {
"Type": "RoundRobin"
      }
    }
  ]
}

Program.cs 配置

using Microsoft.AspNetCore.Hosting;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.Hosting;
using Microsoft.Extensions.Logging;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

namespace Provider.Consul
{
public class Program
    {
public static void Main(string[] args)
        {
            CreateHostBuilder(args).Build().Run();
        }

public static IHostBuilder CreateHostBuilder(string[] args) =>
            Host.CreateDefaultBuilder(args)
            .ConfigureAppConfiguration(c=>
            {
                c.AddJsonFile("ocelot.json", optional: false, reloadOnChange: true);
            })
                .ConfigureWebHostDefaults(webBuilder=>
                {
                    webBuilder.UseStartup<Startup>();
                });
    }
}

Startup.cs 代碼

using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using Microsoft.Extensions.Logging;
using Microsoft.OpenApi.Models;
using Ocelot.DependencyInjection;
using Ocelot.Middleware;
using Ocelot.Provider.Consul;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;

namespace Provider.Consul
{
public class Startup
    {
public Startup(IConfiguration configuration)
        {
            Configuration= configuration;
        }

public IConfiguration Configuration { get; }

// This method gets called by the runtime. Use this method to add services to the container.   public void ConfigureServices(IServiceCollection services)
        {
            services.AddOcelot().AddConsul();//注入Ocelot服務            services.AddControllers();
        }

// This method gets called by the runtime. Use this method to configure the HTTP request pipeline.   public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
        {
if (env.IsDevelopment())
            {
                app.UseDeveloperExceptionPage();
            }

            app.UseRouting();

            app.UseOcelot();

            app.UseAuthorization();

            app.UseEndpoints(endpoints=>
            {
                endpoints.MapControllers();
            });
        }
    }
}

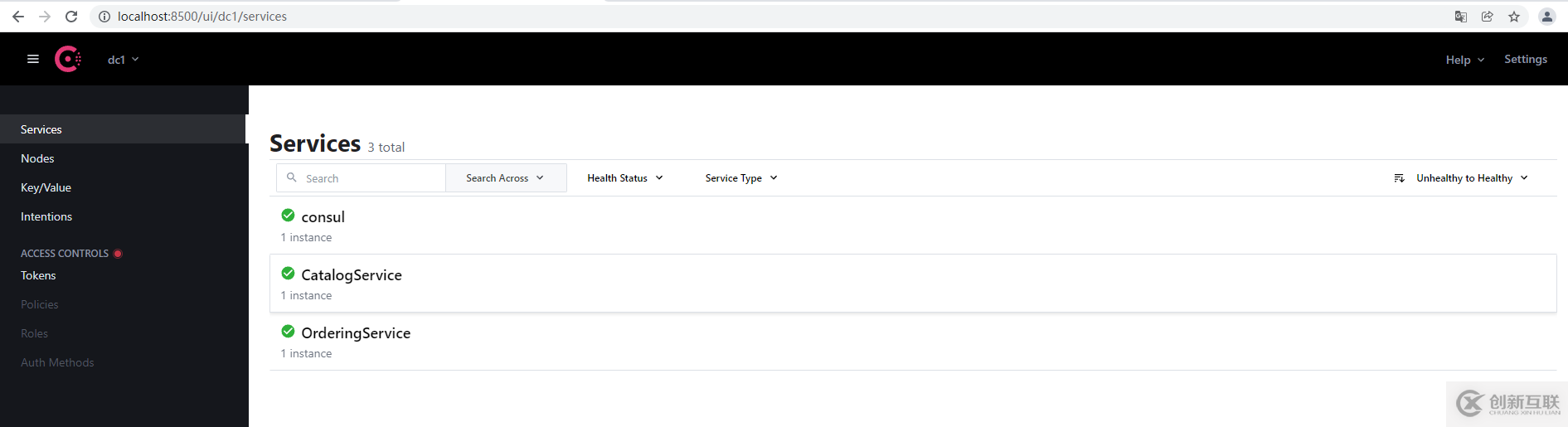

運行后的效果

參考地址：https://www.cnblogs.com/xhznl/p/13091750.html
