Android中使用LayoutInflater要注意的一些坑

前言

成都創新互聯公司2013年至今,是專業互聯網技術服務公司,擁有項目成都做網站、網站設計、外貿營銷網站建設網站策劃,項目實施與項目整合能力。我們以讓每一個夢想脫穎而出為使命,1280元新巴爾虎左做網站,已為上家服務,為新巴爾虎左各地企業和個人服務,聯系電話:18980820575

在平時的開發過程中,我們經常會用LayoutInflater這個類,比如說在Fragment$onCreateViewRecyclerView.Adapter$onCreateViewHolder中都會用到。它的用法也無非就是LayoutInflater.inflate(resourceId, root, attachToRoot),第一個參數沒什么好說的,但第二個和第三個參數結合起來會帶來一定的迷惑性。之前有時候會發現界面布局上出了一些問題,查了很久之后偶然的改動了這兩個參數,發現問題解決了,然后也就過去了,并沒有去思考這是為什么,然后下次可能又重復這種困境了。

所以想在這里總結一下,避免以后繼續掉坑。

先來看看inflate方法的注釋:

/**
 * Inflate a new view hierarchy from the specified xml resource. Throws
 * {@link InflateException} if there is an error.
 *
 * @param resource ID for an XML layout resource to load (e.g.,
 *  <code>R.layout.main_page</code>)
 * @param root Optional view to be the parent of the generated hierarchy (if
 *  <em>attachToRoot</em> is true), or else simply an object that
 *  provides a set of LayoutParams values for root of the returned
 *  hierarchy (if <em>attachToRoot</em> is false.)
 * @param attachToRoot Whether the inflated hierarchy should be attached to
 *  the root parameter? If false, root is only used to create the
 *  correct subclass of LayoutParams for the root view in the XML.
 * @return The root View of the inflated hierarchy. If root was supplied and
 *   attachToRoot is true, this is root; otherwise it is the root of
 *   the inflated XML file.
 */
public View inflate(@LayoutRes int resource, @Nullable ViewGroup root, boolean attachToRoot)

首先需要了解的一點是,一個View的測量結果并不只是由它自己的layout_width和layout_height(即LayoutParams)所決定的,而是由父容器給它的約束(MeasureSpec)和它自身的LayoutParams共同決定的。

達成這個共識之后,我們再來看看它的參數。

  • root:給布局文件提供一個父容器。布局文件里面總有一個元素是沒有父容器的(沒錯,就是根元素),所以需要給它提供一個父容器來幫助它完成測量工作。如果root為空的話,就會導致根元素中的layout_xxx全部失效,從而影響到整個布局。同時,如果root為空的話,那么attachToRoot也就沒有意義了。
  • attachToRoot: 如果為true,創建出來的布局系統會幫我們添加到父容器中去。為false的話,就只是給它提供約束,好讓這個布局順利完成測量等工作而已,將布局添加到父容器中去需要我們后續根據需要去手動調用addView方法。
  • 返回值:如果root != null && attachToRoot,返回的View就是傳進來的root,否則返回由布局文件所創建的View對象。

用幾個例子來說明一下會比較好理解。Activity的布局是一個LinearLayout,要添加的布局如下:

<?xml version="1.0" encoding="utf-8"?>
<TextView xmlns:android="http://schemas.android.com/apk/res/android"
  android:id="@+id/item_text"
  android:layout_width="200dp"
  android:layout_height="50dp"
  android:layout_marginLeft="16dp"
  android:layout_marginTop="16dp"
  android:background="@color/colorAccent"
  android:gravity="center"
  android:text="item: text"/>

正常的情況

// 第一種方法
View inflatedView = LayoutInflater.from(this).inflate(R.layout.item_text, mLinearLayout, true);
Log.d(TAG, "inflated view is " + inflatedView);

// 第二種方法
View inflatedView = LayoutInflater.from(this).inflate(R.layout.item_text, mLinearLayout, false);
Log.d(TAG, "inflated view is " + inflatedView);
mLinearLayout.addView(inflatedView);

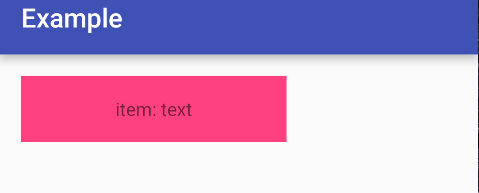

視覺上的結果都是一樣的

Android中使用LayoutInflater要注意的一些坑

但是Log就有一點不一樣了,這就是attachToRoot不同的值所導致的。

第一種方法的Log

D/MainActivity: inflated view is android.widget.LinearLayout{36e9aac V.E...... ......I. 0,0-0,0 #7f0c0051 app:id/linear}

第二種方法的Log

D/MainActivity: inflated view is android.support.v7.widget.AppCompatTextView{3c9d37b V.ED..... ......ID 0,0-0,0 #7f0c0054 app:id/item_text}

還有一個需要注意的地方是:如果在第一種方法的基礎上再加上mLinearLayout.addView(inflatedView)就會造成報錯
IllegalStateException: The specified child already has a parent....  。

而如果第二種方法沒有這句話,界面上是看不到任何東西的。

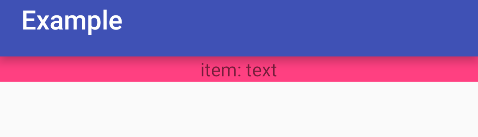

root為null的情況

mLinearLayout = (LinearLayout) findViewById(R.id.linear);
View inflatedView = LayoutInflater.from(this).inflate(R.layout.item_text, null);
Log.d(TAG, "inflated view is " + inflatedView);
mLinearLayout.addView(inflatedView);

Android中使用LayoutInflater要注意的一些坑

此時再看看它的布局文件:

<?xml version="1.0" encoding="utf-8"?>
<TextView xmlns:android="http://schemas.android.com/apk/res/android"
  android:id="@+id/item_text"
  android:layout_width="200dp"
  android:layout_height="50dp"
  android:layout_marginLeft="16dp"
  android:layout_marginTop="16dp"
  android:background="@color/colorAccent"
  android:gravity="center"
  android:text="item: text"/>

不難發現,所有l(wèi)ayout_xxx的屬性全都失效了。

RecyclerView中的Inflater

上面說了,在創建布局的時候,要把布局添加到root中去,并且有兩種方法,但是我們在onCreateViewHolder中添加布局的時候卻是這樣寫的:

@Override
public MyViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
 View view = LayoutInflater.from(parent.getContext()).inflate(R.layout.item_text, parent, false);
 return new MyViewHolder(view);
}

如果第三個參數傳了true還會報錯,這又是為什么呢?

java.lang.IllegalStateException: The specified child already has a parent.

直觀上來解釋就是,子View的添加與刪除是由RecyclerView來管理的,不需要我們來添加。但我們還是從RecyclerView的代碼來理解一下會好一些。

以LinearLayoutManager為例,RecyclerView在創建子View的時候會調用到LinearLayoutManager$layoutChunk方法:

void layoutChunk(RecyclerView.Recycler recycler, RecyclerView.State state,
  LayoutState layoutState, LayoutChunkResult result) {
 // 在這里會調用到Adapter$onCreateViewHolder
 View view = layoutState.next(recycler);
 if (view == null) {
  if (DEBUG && layoutState.mScrapList == null) {
   throw new RuntimeException("received null view when unexpected");
  }
  // if we are laying out views in scrap, this may return null which means there is
  // no more items to layout.
  result.mFinished = true;
  return;
 }
 LayoutParams params = (LayoutParams) view.getLayoutParams();
 if (layoutState.mScrapList == null) {
  if (mShouldReverseLayout == (layoutState.mLayoutDirection
    == LayoutState.LAYOUT_START)) {
   addView(view);
  } else {
   addView(view, 0);
  }
 } else {
  if (mShouldReverseLayout == (layoutState.mLayoutDirection
    == LayoutState.LAYOUT_START)) {
   addDisappearingView(view);
  } else {
   addDisappearingView(view, 0);
  }
 }

 // 省略其它大部分代碼
}

在初始化的時候,View view = layoutState.next(recycler)里面會調用到我們熟悉的onCreateViewHolder方法,然后我們在里面inflate的過程中第三個參數傳了true,將子View添加到了RecyclerView中去了。然而,獲得View之后,調用到了addView(因為是初始化,不可能調用addDisappearingView) ,這里又會去添加一次,所以報出了上面的IllegalStateException異常。

總結

以上就是這篇文章的全部內容了,希望本文的內容對各位Android開發者們能帶來一定的幫助,如果有疑問大家可以留言交流,謝謝大家對創新互聯的支持。
