具體安裝過程如下

軟件包檢查

yum install -y binutils

yum install -y compat-libcap1

yum install -y compat-libstdc++-33

yum install -y compat-libstdc++-33.i686

yum install -y e2fsprogs

yum install -y e2fsprogs-libs

yum install -y glibc

yum install -y glibc.i686

yum install -y glibc-devel

yum install -y glibc-devel.i686

yum install -y ksh

yum install -y glibc-devel

yum install -y glibc-devel.i686

yum install -y libaio.i686

yum install -y libaio.i686

yum install -y libX11

yum install -y libX11.i686

yum install -y libXau

yum install -y libXau.i686

yum install -y libXi

yum install -y libXi.i686

yum install -y libXtst

yum install -y libXtst.i686

yum install -y libgcc

yum install -y libgcc.i686

yum install -y libstdc++

yum install -y libstdc++.i686

yum install -y libstdc++-devel

yum install -y libstdc++-devel.i686

yum install -y libxcb

yum install -y libxcb.i686

yum install -y make

yum install -y net-tools

yum install -y nfs-utils

yum install -y smartmontools

yum install -y sysstat

yum install -y unixODBC

yum install -y unixODBC.i686

目錄和用戶創建：

mkdir -p /u01/app

[root@jing1 app]# chown -R oracle:oinstall /u01

[root@jing1 app]# chown -R grid:oinstall /u01/app/grid

[root@jing1 app]# chmod -R 775 /u01

[root@jing1 app]# chown -R grid:oinstall /u01/app/12.2.0/

[root@jing1 app]# groupadd -g 1000 oinstall

[root@jing1 app]# groupadd -g 1200 asmadmin

[root@jing1 app]# groupadd -g 1201 asmdba

[root@jing1 app]# groupadd -g 1202 asmoper

[root@jing1 app]# groupadd -g 1300 dba

[root@jing1 app]# groupadd -g 1301 oper

useradd -u 1101 -g oinstall -G dba,oper,asmdba -d /home/oracle -s /bin/bash -c "Oracle Software Owner" oracle

useradd -u 1100 -g oinstall -G asmadmin,asmdba,asmoper -d /home/grid -s /bin/bash -c "grid Infrastructure Owner" grid

修改host文件

[root@jing1 ~]# more /etc/hosts

127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4

::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

10.135.2.236 jing1

配置profile

[grid@jing1 ~]$ more .bash_profile

# .bash_profile

# Get the aliases and functions

if [ -f ~/.bashrc ]; then

. ~/.bashrc

fi

# User specific environment and startup programs

PATH=$PATH:$HOME/bin

export PATH

export ORACLE_HOME=/u01/app/12.2.0/grid

umask 022

配置oraInventory

[root@jing1 app]# more /etc/oraInst.loc

inventory_loc=/u01/app/oraInventory

inst_group=oinstall

修改limit：

cp /etc/security/limits.conf /etc/security/limits.conf.bak

echo "oracle soft nproc 2047" >>/etc/security/limits.conf

echo "oracle hard nproc 16384" >>/etc/security/limits.conf

echo "oracle soft nofile 1024" >>/etc/security/limits.conf

echo "oracle hard nofile 65536" >>/etc/security/limits.conf

echo " oracle   soft   stack    10240" >>/etc/security/limits.conf

echo " oracle   hard   stack    32768" >>/etc/security/limits.conf

echo "grid soft nproc 2047" >>/etc/security/limits.conf

echo "grid hard nproc 16384" >>/etc/security/limits.conf

echo "grid soft nofile 1024" >>/etc/security/limits.conf

echo "grid hard nofile 65536" >>/etc/security/limits.conf

echo "grid  soft   stack    10240" >>/etc/security/limits.conf

echo "grid  hard   stack    32768" >>/etc/security/limits.conf

存儲創建

此處要說明一下，本單節點服務器創建了一個卷組vg_jing1,為了使用asm創建了一個邏輯卷lv_asmdisk,如下：

[root@jing1 vg_jing1]# ll /dev/vg_jing1/

total 0

lrwxrwxrwx 1 root root 7 Nov 30 16:34 lv_asmdisk -> ../dm-3

lrwxrwxrwx 1 root root 7 Nov 30 16:22 lv_home -> ../dm-2

lrwxrwxrwx 1 root root 7 Nov 30 16:22 lv_root -> ../dm-0

lrwxrwxrwx 1 root root 7 Nov 30 16:22 lv_swap -> ../dm-1

為了是asm能識別到該盤

chown grid:asmadmin /dev/dm-3

但是。。。這個權限會自動變回去如下：

[root@jing1 dev]# ll /dev/dm*

brw-rw---- 1 root disk 253, 0 Nov 30 16:22 /dev/dm-0

brw-rw---- 1 root disk 253, 1 Nov 30 16:22 /dev/dm-1

brw-rw---- 1 root disk 253, 2 Nov 30 16:22 /dev/dm-2

brw-rw---- 1 root disk 253, 3 Nov 30 16:42 /dev/dm-3

[root@jing1 dev]#

沒搞定，參考下面文檔，找找靈感

http://www.itpub.net/thread-2070853-1-1.html

參考：

http://blog.163.com/yanenshun@126/blog/static/1283881692014818902668/

具體方法如下：

使用udev修改dm文件權限：

vim /etc/udev/rules.d/12-dm-permissions.rules

[root@jing1 vg_jing1]# more /etc/udev/rules.d/12-dm-permissions.rules

ENV{DM_NAME}=="vg_jing1-lv_asmdisk", OWNER:="grid", GROUP:="asmadmin", MODE:="660", SYMLINK+="iscsi/oraasm-$env{DM_NAME}"

然后

/sbin/start_udev

后查看權限：

[root@jing1 vg_jing1]# ll /dev/dm*

brw-rw---- 1 root disk     253, 0 Nov 30 17:45 /dev/dm-0

brw-rw---- 1 root disk     253, 1 Nov 30 17:45 /dev/dm-1

brw-rw---- 1 root disk     253, 2 Nov 30 17:45 /dev/dm-2

brw-rw---- 1 grid asmadmin 253, 3 Nov 30 17:45 /dev/dm-3

成功修改

配置內核

cp /etc/sysctl.conf /etc/sysctl.conf.bak

echo "fs.aio-max-nr = 1048576" >> /etc/sysctl.conf

echo "fs.file-max = 6815744" >> /etc/sysctl.conf

echo "kernel.shmall = 3288424" >> /etc/sysctl.conf

echo "kernel.shmmax = 16836732928" >> /etc/sysctl.conf

echo "kernel.shmmni = 4096" >> /etc/sysctl.conf

echo "kernel.sem = 250 32000 100 128" >> /etc/sysctl.conf

echo "net.ipv4.ip_local_port_range = 9000 65500" >> /etc/sysctl.conf

echo "net.core.rmem_default = 262144" >> /etc/sysctl.conf

echo "net.core.rmem_max = 4194304" >> /etc/sysctl.conf

echo "net.core.wmem_default = 262144" >> /etc/sysctl.conf

echo "net.core.wmem_max = 1048576" >> /etc/sysctl.conf

echo "net.ipv4.tcp_wmem = 4096 16384 4194304 " >> /etc/sysctl.conf

echo "net.ipv4.tcp_rmem = 4096 87380 4194304 " >> /etc/sysctl.conf

sysctl -p

關閉selinux

[root@rac01 ntp]# setenforce 0

[root@rac01 ntp]# vim /etc/selinux/config

SELINUX=disabled

關閉防火墻

[root@storage ~]# service iptables stop

[root@storage ~]# chkconfig  iptables off

[grid@jing1 grid]$ ./gridSetup.sh

[root@jing1 grid]# ./root.sh

Performing root user operation.

The following environment variables are set as:

ORACLE_OWNER= grid

ORACLE_HOME=  /u01/app/12.2.0/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:

Copying dbhome to /usr/local/bin ...

Copying oraenv to /usr/local/bin ...

Copying coraenv to /usr/local/bin ...

Creating /etc/oratab file...

Entries will be added to the /etc/oratab file as needed by

Database Configuration Assistant when a database is created

Finished running generic part of root script.

Now product-specific root actions will be performed.

Using configuration parameter file: /u01/app/12.2.0/grid/crs/install/crsconfig_params

The log of current session can be found at:

/u01/app/grid/crsdata/jing1/crsconfig/roothas_2017-12-01_09-55-22AM.log

2017/12/01 09:55:24 CLSRSC-363: User ignored prerequisites during installation

LOCAL ADD MODE

Creating OCR keys for user 'grid', privgrp 'oinstall'..

Operation successful.

LOCAL ONLY MODE

Successfully accumulated necessary OCR keys.

Creating OCR keys for user 'root', privgrp 'root'..

Operation successful.

CRS-4664: Node jing1 successfully pinned.

2017/12/01 09:55:53 CLSRSC-330: Adding Clusterware entries to file 'oracle-ohasd.conf'

CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'jing1'

CRS-2673: Attempting to stop 'ora.evmd' on 'jing1'

CRS-2677: Stop of 'ora.evmd' on 'jing1' succeeded

CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'jing1' has completed

CRS-4133: Oracle High Availability Services has been stopped.

CRS-4123: Oracle High Availability Services has been started.

jing1     2017/12/01 09:57:13     /u01/app/12.2.0/grid/cdata/jing1/backup_20171201_095713.olr     0

2017/12/01 09:57:19 CLSRSC-327: Successfully configured Oracle Restart for a standalone server

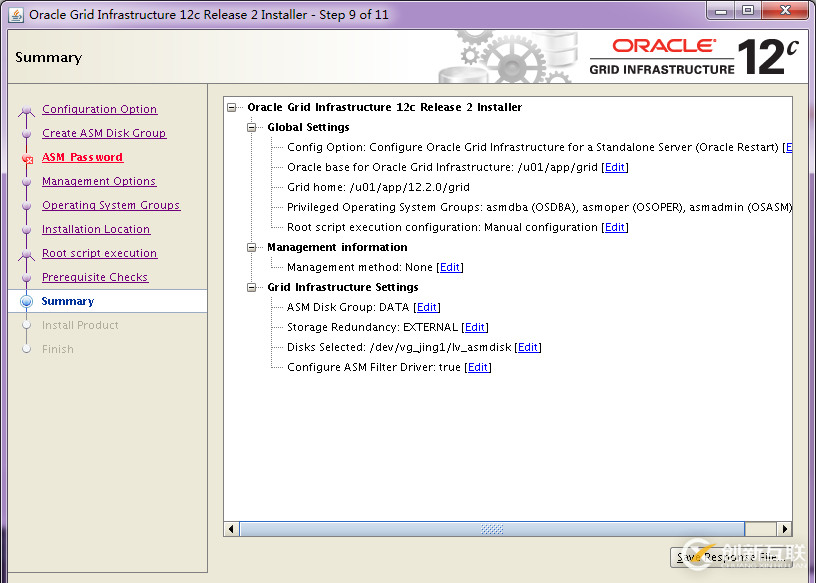

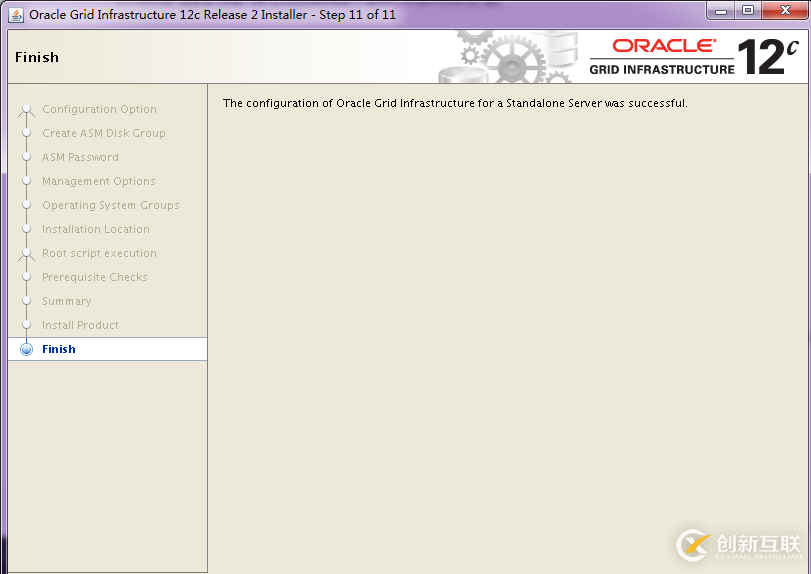

完成grid安裝，界面顯示如下：

[grid@jing1 grid]$ ./gridSetup.sh

Launching Oracle Grid Infrastructure Setup Wizard...

You can find the log of this install session at:

/u01/app/oraInventory/logs/GridSetupActions2017-12-01_09-32-38AM/gridSetupActions2017-12-01_09-32-38AM.log

在.bash_profile中添加如下環境變量，其中Oracle home在安裝前已設置：

export ORACLE_SID=+ASM

export ORACLE_BASE=/u01/app/grid

export ORACLE_HOME=/u01/app/12.2.0/grid

export NLS_DATE_FORMAT='yyyy/mm/dd hh34:mi:ss'

export TNS_ADMIN=$ORACLE_HOME/network/admin

export PATH=/usr/sbin:$PATH

export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/perl/bin/:$PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib

export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

umask 022

安裝Oracle數據庫：

編輯oracle用戶的profile，添加

export ORACLE_SID=YCR12C

export ORACLE_BASE=/u01/app/oracle

export ORACLE_HOME=$ORACLE_BASE/product/12.2.0/db_1

export TNS_ADMIN=$ORACLE_HOME/network/admin

export PATH=/usr/sbin:$PATH

export PATH=$ORACLE_HOME/bin:$ORACLE_HOME/perl/bin/:$PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib

export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

export NLS_DATE_FORMAT='yyyy/mm/dd hh34:mi:ss'

umask 022

開始安裝

[oracle@jing1 database]$ ./runInstaller

Starting Oracle Universal Installer...

Checking Temp space: must be greater than 500 MB.   Actual 175184 MB    Passed

Checking swap space: must be greater than 150 MB.   Actual 16127 MB    Passed

Checking monitor: must be configured to display at least 256 colors.    Actual 16777216    Passed

Preparing to launch Oracle Universal Installer from /tmp/OraInstall2017-12-01_10-12-43AM. Please wait ...[oracle@jing1 database]$

[root@jing1 db_1]# ./root.sh

Performing root user operation.

The following environment variables are set as:

ORACLE_OWNER= oracle

ORACLE_HOME=  /u01/app/oracle/product/12.2.0/db_1

Enter the full pathname of the local bin directory: [/usr/local/bin]:

The contents of "dbhome" have not changed. No need to overwrite.

The contents of "oraenv" have not changed. No need to overwrite.

The contents of "coraenv" have not changed. No need to overwrite.

Entries will be added to the /etc/oratab file as needed by

Database Configuration Assistant when a database is created

Finished running generic part of root script.

Now product-specific root actions will be performed.

Do you want to setup Oracle Trace File Analyzer (TFA) now ? yes|[no] :

yes

Installing Oracle Trace File Analyzer (TFA).

Log File: /u01/app/oracle/product/12.2.0/db_1/install/root_jing1_2017-12-01_10-21-20-447877904.log

Finished installing Oracle Trace File Analyzer (TFA)

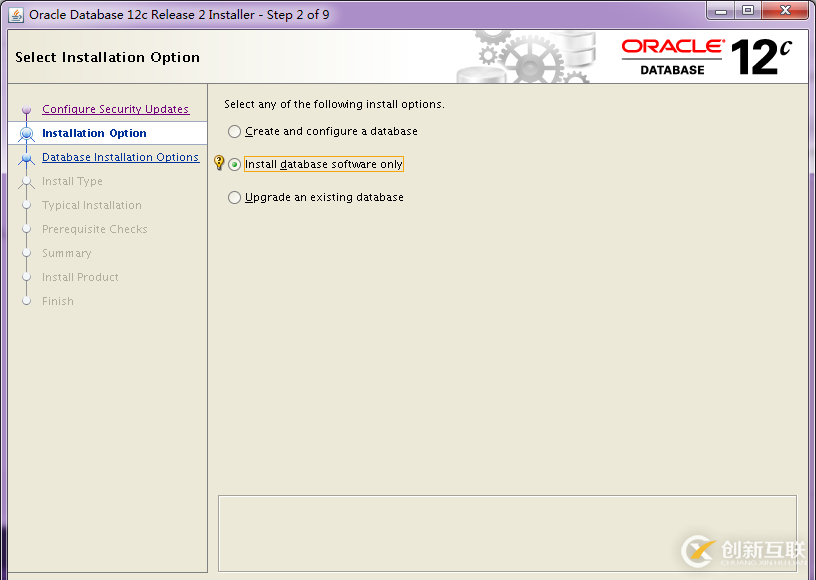

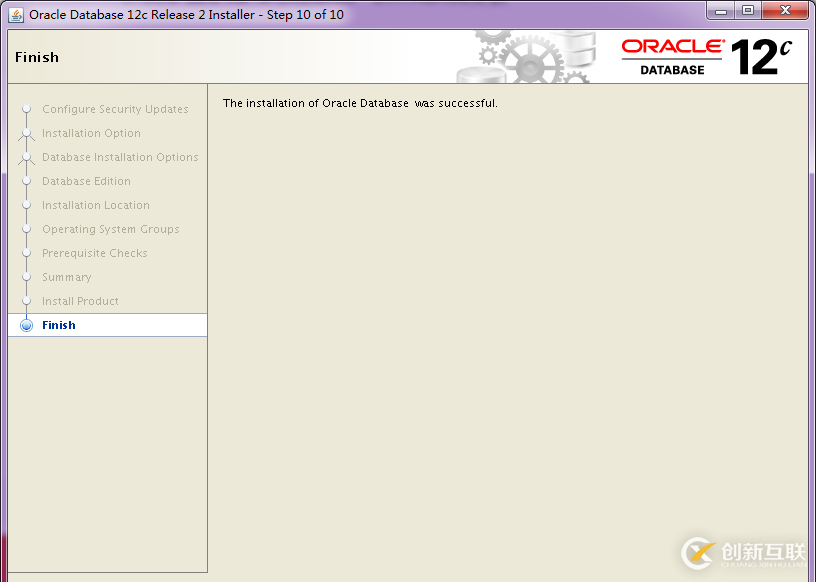

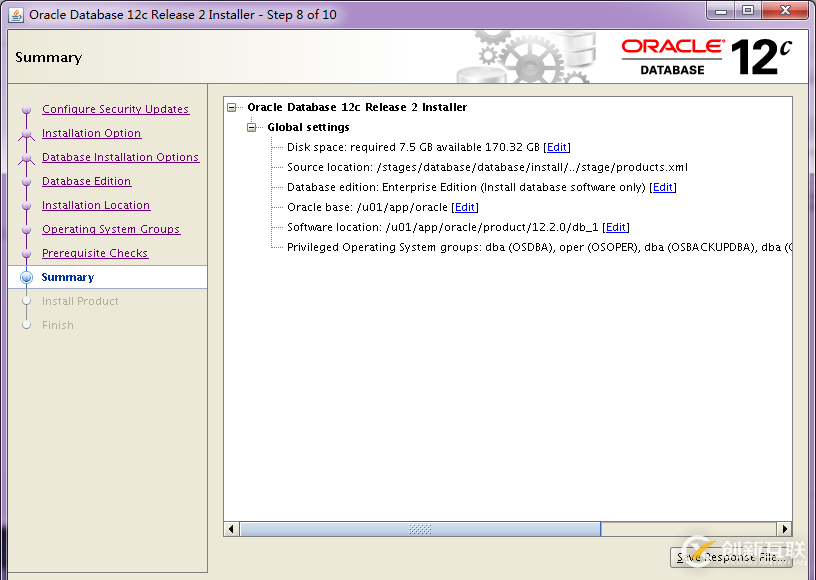

安裝過程

[oracle@jing1 database]$ ./runInstaller

Starting Oracle Universal Installer...

Checking Temp space: must be greater than 500 MB.   Actual 175184 MB    Passed

Checking swap space: must be greater than 150 MB.   Actual 16127 MB    Passed

Checking monitor: must be configured to display at least 256 colors.    Actual 16777216    Passed

Preparing to launch Oracle Universal Installer from /tmp/OraInstall2017-12-01_10-12-43AM. Please wait ...[oracle@jing1 database]$ You can find the log of this install session at:

/u01/app/oraInventory/logs/installActions2017-12-01_10-12-43AM.log

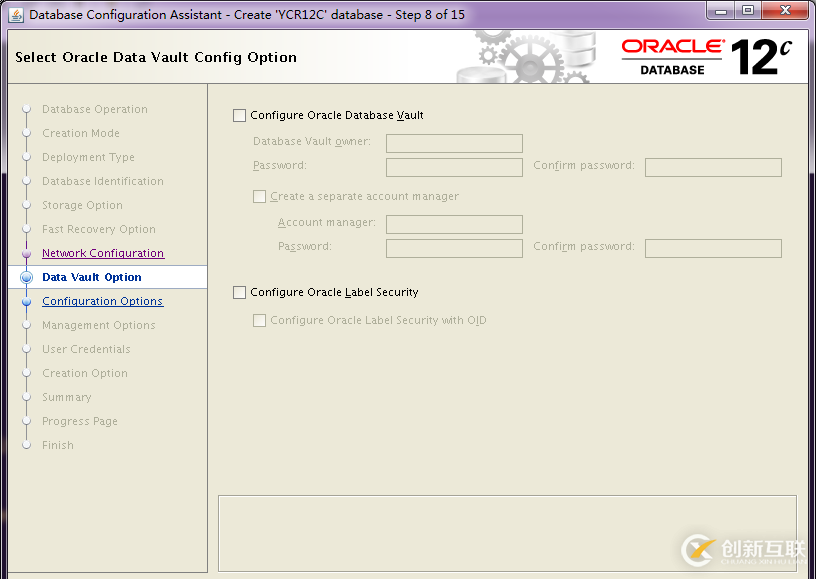

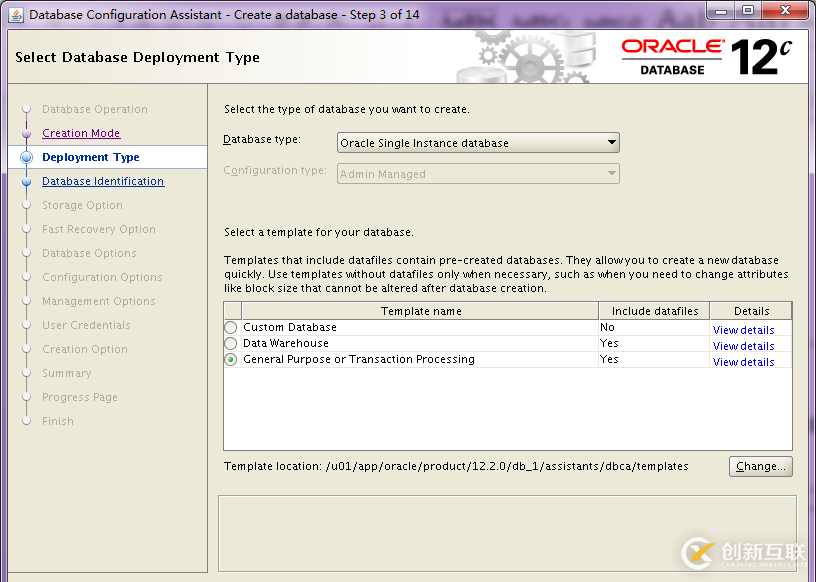

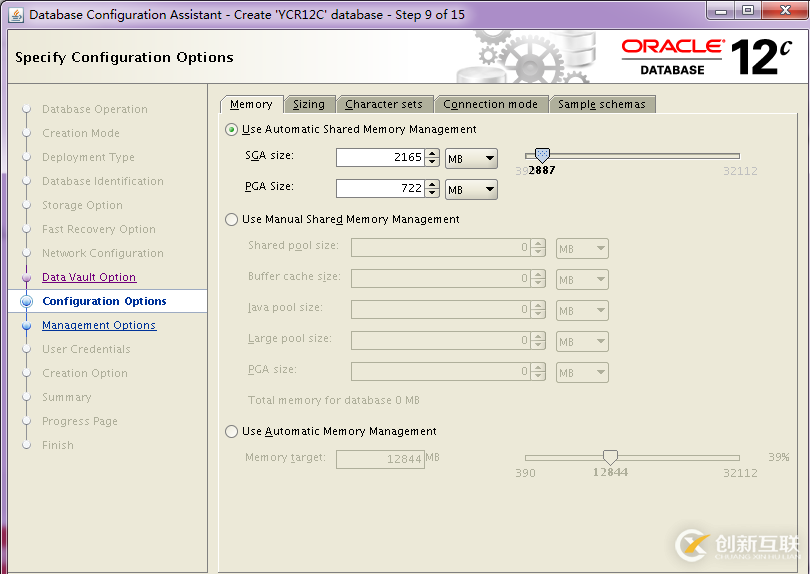

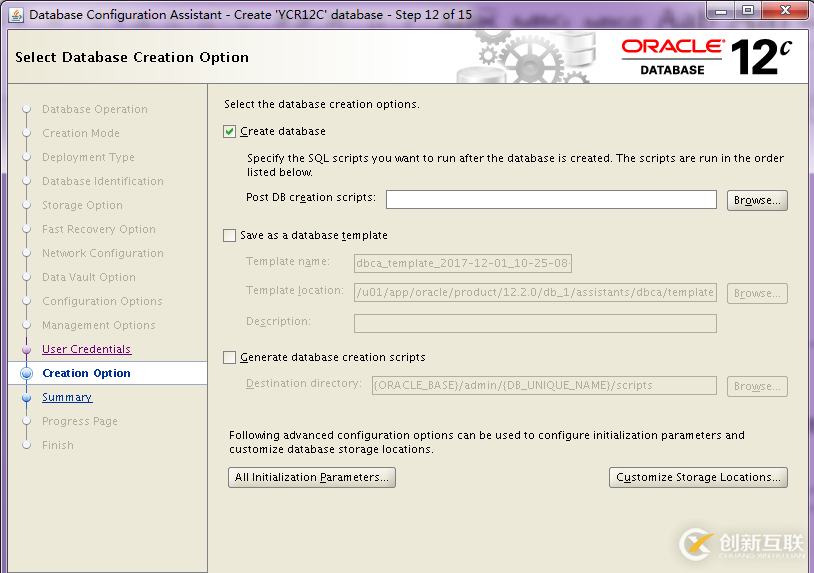

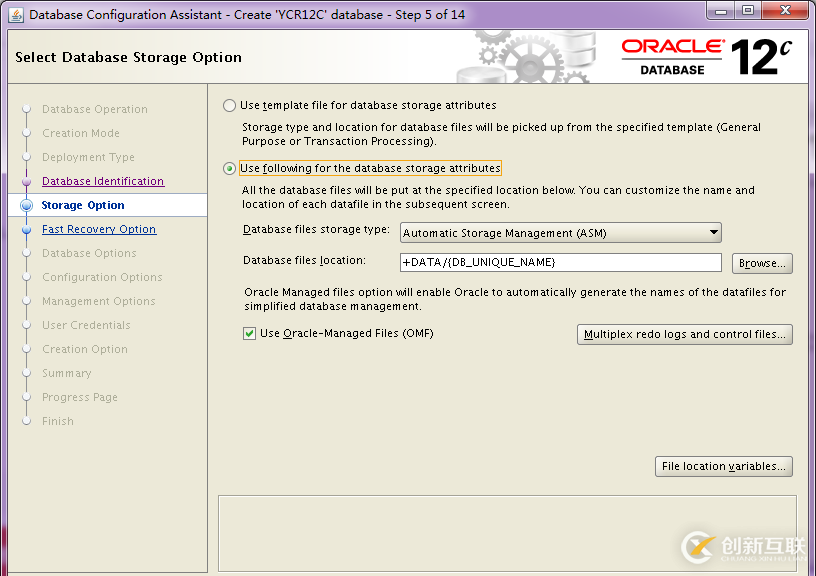

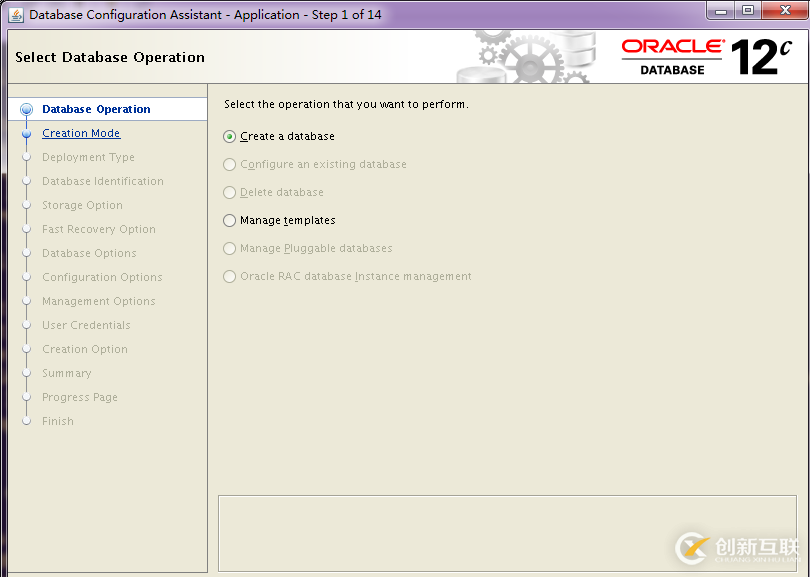

創建數據庫

使用oracle用戶

處理方法：

根據文檔

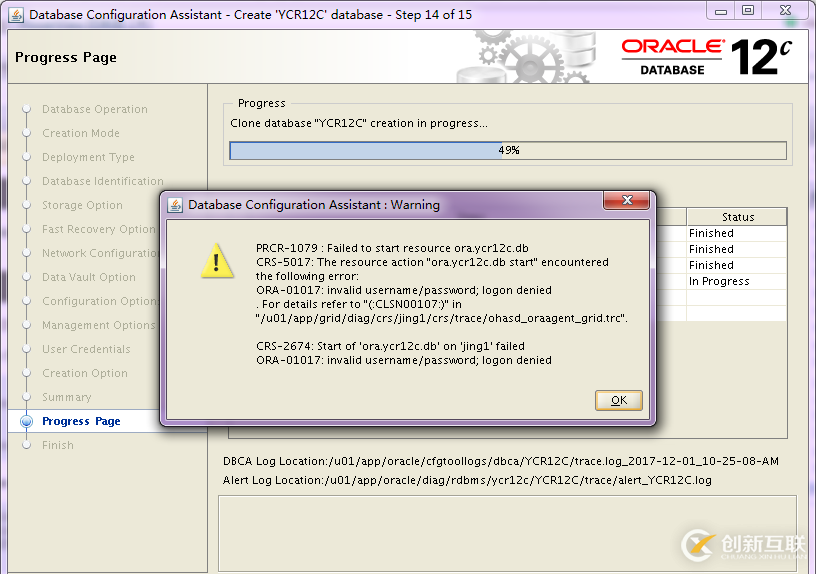

Database Creation in Oracle Restart Environment Fails With "ORA-01017: Invalid Username/password" (文檔 ID 2108268.1)

[root@jing1 db_1]# id grid

uid=1100(grid) gid=1000(oinstall) groups=1000(oinstall),1200(asmadmin),1201(asmdba),1202(asmoper)

[root@jing1 db_1]# usermod -a -G dba grid

[root@jing1 db_1]# id grid

uid=1100(grid) gid=1000(oinstall) groups=1000(oinstall),1200(asmadmin),1201(asmdba),1202(asmoper),1300(dba)

重新運行dbca，要刪除之前創建的YCR12C數據庫，在dbca中選擇delete database即可

按照上面截圖的不忠重新運行即可，選項不必蓋面，本次成功

安裝完成后查看監聽正常：

[oracle@jing1 admin]$ lsnrctl status

LSNRCTL for Linux: Version 12.2.0.1.0 - Production on 01-DEC-2017 11:07:31

Copyright (c) 1991, 2016, Oracle.  All rights reserved.

Connecting to (ADDRESS=(PROTOCOL=tcp)(HOST=)(PORT=1521))

STATUS of the LISTENER

------------------------

Alias                     LISTENER

Version                   TNSLSNR for Linux: Version 12.2.0.1.0 - Production

Start Date                01-DEC-2017 09:58:42

Uptime                    0 days 1 hr. 8 min. 49 sec

Trace Level               off

Security                  ON: Local OS Authentication

SNMP                      OFF

Listener Parameter File   /u01/app/12.2.0/grid/network/admin/listener.ora

Listener Log File         /u01/app/grid/diag/tnslsnr/jing1/listener/alert/log.xml

Listening Endpoints Summary...

(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=jing1)(PORT=1521)))

(DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))

Services Summary...

Service "+ASM" has 1 instance(s).

Instance "+ASM", status READY, has 1 handler(s) for this service...

Service "+ASM_DATA" has 1 instance(s).

Instance "+ASM", status READY, has 1 handler(s) for this service...

Service "5f3f946fc4442e02e053ec02870a3fb7" has 1 instance(s).

Instance "YCR12C", status READY, has 1 handler(s) for this service...

Service "YCR12C" has 1 instance(s).

Instance "YCR12C", status READY, has 1 handler(s) for this service...

Service "YCR12CXDB" has 1 instance(s).

Instance "YCR12C", status READY, has 1 handler(s) for this service...

Service "ycr12cpdb" has 1 instance(s).

Instance "YCR12C", status READY, has 1 handler(s) for this service...

The command completed successfully

[oracle@jing1 admin]$

感謝各位的閱讀！關于“Oracle 12C R2單節點GRID+DATABASE如何安裝”這篇文章就分享到這里了，希望以上內容可以對大家有一定的幫助，讓大家可以學到更多知識，如果覺得文章不錯，可以把它分享出去讓更多的人看到吧！

分享文章：Oracle12CR2單節點GRID+DATABASE如何安裝-創新互聯
網址分享：http://jinyejixie.com/article24/cshsje.html

成都網站建設公司_創新互聯，為您提供網站維護、做網站、手機網站建設、面包屑導航、網站收錄、響應式網站

廣告

聲明：本網站發布的內容（圖片、視頻和文字）以用戶投稿、用戶轉載內容為主，如果涉及侵權請盡快告知，我們將會在第一時間刪除。文章觀點不代表本網站立場，如需處理請聯系客服。電話：028-86922220；郵箱：631063699@qq.com。內容未經允許不得轉載，或轉載時需注明來源： 創新互聯
