kubernetes k8s 部署

成都創新互聯服務項目包括東源網站建設、東源網站制作、東源網頁制作以及東源網絡營銷策劃等。多年來，我們專注于互聯網行業，利用自身積累的技術優勢、行業經驗、深度合作伙伴關系等，向廣大中小型企業、政府機構等提供互聯網行業的解決方案，東源網站推廣取得了明顯的社會效益與經濟效益。目前，我們服務的客戶以成都為中心已經輻射到東源省份的部分城市，未來相信會繼續擴大服務區域并繼續獲得客戶的支持與信任！

集群規劃

centos-test-ip-207-master    192.168.11.207
centos-test-ip-208                 192.168.11.208
centos-test-ip-209                 192.168.11.209

kubernetes 1.10.7
flannel flannel-v0.10.0-linux-amd64.tar
ETCD etcd-v3.3.8-linux-amd64.tar
CNI cni-plugins-amd64-v0.7.1
docker 18.03.1-ce

安裝包下載

etcd：https://github.com/coreos/etcd/releases/
flannel：https://github.com/coreos/flannel/releases/
cni：https://github.com/containernetworking/plugins/releases
kubernetes：https://github.com/kubernetes/kubernetes/blob/master/CHANGELOG-1.10.md#v1107

注：安裝包 kubernetes1.10  看官笑納
鏈接：https://pan.baidu.com/s/1_7EfOMlRkQSybEH_p6NtTw
提取碼：345b

互相解析，關防火墻，關掉分區,服務器時間 (三臺同步)

解析

vim /etc/hosts
192.168.11.207 centos-test-ip-207-master
192.168.11.208 centos-test-ip-208
192.168.11.209 centos-test-ip-209

防火墻

systemctl stop firewalld
setenforce 0

關閉swap

swapoff -a
vim /etc/fstab    //  swap設置注釋

同步服務時區 # 時間同步可忽略

tzselect

公鑰傳輸 # 主傳從

ssh-keygen
ssh-copy-id

安裝docker （三臺同步）

卸載原有版本

yum remove docker docker-common docker-selinux docker-engine

安裝docker所依賴驅動

yum install -y yum-utils device-mapper-persistent-data lvm2

添加yum源 #官方源拉取延遲,故選擇國內阿里源

yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum makecache fast

選擇docker版本安裝

yum list docker-ce --showduplicates | sort -r

選擇安裝18.03.1.ce

yum -y install docker-ce-18.03.1.ce

啟動docker

systemctl start docker
systemctl enable docker

安裝ETCD集群

同步操作

tar xvf etcd-v3.3.8-linux-amd64.tar.gz
cd etcd-v3.3.8-linux-amd64
cp etcd etcdctl /usr/bin
mkdir -p /var/lib/etcd /etc/etcd    #創建相關文件夾

etcd配置文件

主要文件操作 /usr/lib/systemd/system/etcd.service 和 /etc/etcd/etcd.conf
etcd集群的主從節點關系與kubernetes集群的主從節點關系不是同的
etcd集群在啟動和運行過程中會選舉出主節點
因此三個節點命名 etcd-i，etcd-ii，etcd-iii 體驗關系

207-master
cat   /usr/lib/systemd/system/etcd.service
[Unit]
Description=Etcd Server
After=network.target

[Service]
Type=notify
WorkingDirectory=/var/lib/etcd/
EnvironmentFile=/etc/etcd/etcd.conf
ExecStart=/usr/bin/etcd

[Install]
WantedBy=multi-user.target
cat    /etc/etcd/etcd.conf
# [member]
# 節點名稱
ETCD_NAME=etcd-i
# 數據存放位置
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
# 監聽其他Etcd實例的地址
ETCD_LISTEN_PEER_URLS="http://192.168.11.207:2380"
# 監聽客戶端地址
ETCD_LISTEN_CLIENT_URLS="http://192.168.11.207:2379,http://127.0.0.1:2379"

#[cluster]
# 通知其他Etcd實例地址
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://192.168.11.207:2380"
# 初始化集群內節點地址
ETCD_INITIAL_CLUSTER="etcd-i=http://192.168.11.207:2380,etcd-ii=http://192.168.11.208:2380,etcd-iii=http://192.168.11.209:2380"
# 初始化集群狀態，new表示新建
ETCD_INITIAL_CLUSTER_STATE="new"
# 初始化集群token
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster-token"
# 通知客戶端地址
ETCD_ADVERTISE_CLIENT_URLS="http://192.168.11.207:2379,http://127.0.0.1:2379"
208
cat  /usr/lib/systemd/system/etcd.service
[Unit]
Description=Etcd Server
After=network.target

[Service]
Type=notify
WorkingDirectory=/var/lib/etcd/
EnvironmentFile=/etc/etcd/etcd.conf
ExecStart=/usr/bin/etcd

[Install]
WantedBy=multi-user.target
cat /etc/etcd/etcd.conf
# [member]
# 節點名稱
ETCD_NAME=etcd-ii
# 數據存放位置
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
# 監聽其他Etcd實例的地址
ETCD_LISTEN_PEER_URLS="http://192.168.11.208:2380"
# 監聽客戶端地址
ETCD_LISTEN_CLIENT_URLS="http://192.168.11.208:2379,http://127.0.0.1:2379"

#[cluster]
# 通知其他Etcd實例地址
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://192.168.11.208:2380"
# 初始化集群內節點地址
ETCD_INITIAL_CLUSTER="etcd-i=http://192.168.11.207:2380,etcd-ii=http://192.168.11.208:2380,etcd-iii=http://192.168.11.209:2380"
# 初始化集群狀態，new表示新建
ETCD_INITIAL_CLUSTER_STATE="new"
# 初始化集群token
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster-token"
# 通知客戶端地址
ETCD_ADVERTISE_CLIENT_URLS="http://192.168.11.208:2379,http://127.0.0.1:2379"
209
cat  /usr/lib/systemd/system/etcd.service
[Unit]
Description=Etcd Server
After=network.target

[Service]
Type=notify
WorkingDirectory=/var/lib/etcd/
EnvironmentFile=/etc/etcd/etcd.conf
ExecStart=/usr/bin/etcd

[Install]
WantedBy=multi-user.target
cat /etc/etcd/etcd.conf
# [member]
# 節點名稱
ETCD_NAME=etcd-iii
# 數據存放位置
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
# 監聽其他Etcd實例的地址
ETCD_LISTEN_PEER_URLS="http://192.168.11.209:2380"
# 監聽客戶端地址
ETCD_LISTEN_CLIENT_URLS="http://192.168.11.209:2379,http://127.0.0.1:2379"

#[cluster]
# 通知其他Etcd實例地址
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://192.168.11.209:2380"
# 初始化集群內節點地址
ETCD_INITIAL_CLUSTER="etcd-i=http://192.168.11.207:2380,etcd-ii=http://192.168.11.208:2380,etcd-iii=http://192.168.11.209:2380"
# 初始化集群狀態，new表示新建
ETCD_INITIAL_CLUSTER_STATE="new"
# 初始化集群token
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster-token"
# 通知客戶端地址
ETCD_ADVERTISE_CLIENT_URLS="http://192.168.11.209:2379,http://127.0.0.1:2379"

啟動ETCD集群

主→從順序操作

systemctl daemon-reload    ## 重新加載配置文件
systemctl start etcd.service
systemctl enable etcd.service

查看集群信息

[root@centos-test-ip-207-master ~]# etcdctl member list
e8bd2d4d9a7cba8: name=etcd-ii peerURLs=http://192.168.11.208:2380 clientURLs=http://127.0.0.1:2379,http://192.168.11.208:2379 isLeader=true
50a675761b915629: name=etcd-i peerURLs=http://192.168.11.207:2380 clientURLs=http://127.0.0.1:2379,http://192.168.11.207:2379 isLeader=false
9a891df60a11686b: name=etcd-iii peerURLs=http://192.168.11.209:2380 clientURLs=http://127.0.0.1:2379,http://192.168.11.209:2379 isLeader=false
[root@centos-test-ip-207-master ~]# etcdctl cluster-health
member e8bd2d4d9a7cba8 is healthy: got healthy result from http://127.0.0.1:2379
member 50a675761b915629 is healthy: got healthy result from http://127.0.0.1:2379
member 9a891df60a11686b is healthy: got healthy result from http://127.0.0.1:2379
cluster is healthy

安裝flannel

同步操作

mkdir -p /opt/flannel/bin/
tar xvf flannel-v0.10.0-linux-amd64.tar.gz -C /opt/flannel/bin/
cat /usr/lib/systemd/system/flannel.service
[Unit]
Description=Flanneld overlay address etcd agent
After=network.target
After=network-online.target
Wants=network-online.target
After=etcd.service
Before=docker.service

[Service]
Type=notify
ExecStart=/opt/flannel/bin/flanneld -etcd-endpoints=http://192.168.11.207:2379,http://192.168.11.208:2379,http://192.168.11.209:2379 -etcd-prefix=coreos.com/network
ExecStartPost=/opt/flannel/bin/mk-docker-opts.sh -d /etc/docker/flannel_net.env -c
Restart=on-failure

[Install]
WantedBy=multi-user.target
RequiredBy=docker.service

設置flannel網絡配置（網段劃分,網段信息可修改） # 主操作即可

[root@centos-test-ip-207-master ~]# etcdctl mk /coreos.com/network/config '{"Network":"172.18.0.0/16", "SubnetMin": "172.18.1.0", "SubnetMax": "172.18.254.0",  "Backend": {"Type": "vxlan"}}'

修改網段：刪除：etcdctl rm /coreos.com/network/config  ，再執行配置命令即可

下載flannel

同步操作
flannel服務依賴flannel鏡像，所以要先下載flannel鏡像，執行以下命令從阿里云下載，創建鏡像tag

docker pull registry.cn-beijing.aliyuncs.com/k8s_images/flannel:v0.10.0-amd64
docker tag registry.cn-beijing.aliyuncs.com/k8s_images/flannel:v0.10.0-amd64 quay.io/coreos/flannel:v0.10.0

注：
配置docker
flannel配置中有一項
ExecStartPost=/opt/flannel/bin/mk-docker-opts.sh -d /etc/docker/flannel_net.env -c
flannel啟動后執行mk-docker-opts.sh，并生成/etc/docker/flannel_net.env文件
flannel會修改docker網絡,flannel_net.env是flannel生成的docker配置參數,因此,還要修改docker配置項

cat  /usr/lib/systemd/system/docker.service
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service
Wants=network-online.target

[Service]
Type=notify
# the default is not to use systemd for cgroups because the delegate issues still
# exists and systemd currently does not support the cgroup feature set required
# for containers run by docker
ExecStart=/usr/bin/dockerd
EnvironmentFile=/etc/docker/flannel_net.env      # 添加
ExecReload=/bin/kill -s HUP $MAINPID
ExecStartPost=/usr/sbin/iptables -P FORWARD ACCEPT    #添加
# Having non-zero Limit*s causes performance problems due to accounting overhead
# in the kernel. We recommend using cgroups to do container-local accounting.
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
# Uncomment TasksMax if your systemd version supports it.
# Only systemd 226 and above support this version.
#TasksMax=infinity
TimeoutStartSec=0
# set delegate yes so that systemd does not reset the cgroups of docker containers
Delegate=yes
# kill only the docker process, not all processes in the cgroup
KillMode=process
# restart the docker process if it exits prematurely
Restart=on-failure
StartLimitBurst=3
StartLimitInterval=60s

[Install]
WantedBy=multi-user.target

注：
After：flannel啟動之后再啟動docker
EnvironmentFile：配置docker的啟動參數，由flannel生成
ExecStart：增加docker啟動參數
ExecStartPost：在docker啟動之后執行,會修改主機的iptables路由規則

啟動flannel

同步操作

systemctl daemon-reload
systemctl start flannel.service
systemctl enable flannel.service
systemctl restart docker.service

安裝CNI

同步操作

mkdir -p /opt/cni/bin /etc/cni/net.d
tar xvf cni-plugins-amd64-v0.7.1.tgz -C /opt/cni/bin
cat  /etc/cni/net.d/10-flannel.conflist
{
  "name":"cni0",
  "cniVersion":"0.3.1",
  "plugins":[
    {
      "type":"flannel",
      "delegate":{
        "forceAddress":true,
        "isDefaultGateway":true
      }
    },
    {
      "type":"portmap",
      "capabilities":{
        "portMappings":true
      }
    }
  ]
}

安裝K8S集群

CA證書

kubernetes k8s 部署
同步操作

mkdir -p /etc/kubernetes/ca
207
cd /etc/kubernetes/ca/

生產證書和私鑰

[root@centos-test-ip-207-master ca]# openssl genrsa -out ca.key 2048
[root@centos-test-ip-207-master ca]# openssl req -x509 -new -nodes -key ca.key -subj "/CN=k8s" -days 5000 -out ca.crt

生成kube-apiserver證書和私鑰

[root@centos-test-ip-207-master ca]# cat master_ssl.conf
[req]
req_extensions = v3_req
distinguished_name = req_distinguished_name
[req_distinguished_name]
[ v3_req ]
basicConstraints = CA:FALSE
keyUsage = nonRepudiation, digitalSignature, keyEncipherment
subjectAltName = @alt_names
[alt_names]
DNS.1 = kubernetes
DNS.2 = kubernetes.default
DNS.3 = kubernetes.default.svc
DNS.4 = kubernetes.default.svc.cluster.local
DNS.5 = k8s
IP.1 = 172.18.0.1
IP.2 = 192.168.11.207
[root@centos-test-ip-207-master ca]# openssl genrsa -out apiserver-key.pem 2048
[root@centos-test-ip-207-master ca]# openssl req -new -key apiserver-key.pem -out apiserver.csr -subj "/CN=k8s" -config master_ssl.conf
[root@centos-test-ip-207-master ca]# openssl x509 -req -in apiserver.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out apiserver.pem -days 365 -extensions v3_req -extfile master_ssl.conf

生成kube-controller-manager/kube-scheduler證書和私鑰

[root@centos-test-ip-207-master ca]# openssl genrsa -out cs_client.key 2048
[root@centos-test-ip-207-master ca]# openssl req -new -key cs_client.key -subj "/CN=k8s" -out cs_client.csr
[root@centos-test-ip-207-master ca]# openssl x509 -req -in cs_client.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out cs_client.crt -days 5000

拷貝證書到208,209

[root@centos-test-ip-207-master ca]# scp ca.crt ca.key centos-test-ip-208:/etc/kubernetes/ca/
[root@centos-test-ip-207-master ca]# scp ca.crt ca.key centos-test-ip-209:/etc/kubernetes/ca/
208證書配置

/CN 對應本機IP
cd /etc/kubernetes/ca/

[root@centos-test-ip-208 ca]# openssl genrsa -out kubelet_client.key 2048
[root@centos-test-ip-208 ca]# openssl req -new -key kubelet_client.key -subj "/CN=192.168.3.193" -out kubelet_client.csr
[root@centos-test-ip-208 ca]# openssl x509 -req -in kubelet_client.csr  -CA ca.crt -CAkey ca.key -CAcreateserial -out kubelet_client.crt -days 5000
209證書配置

/CN 對應本機IP
cd /etc/kubernetes/ca/

[root@centos-test-ip-209 ca]# openssl genrsa -out kubelet_client.key 2048
[root@centos-test-ip-209 ca]# openssl req -new -key kubelet_client.key -subj "/CN=192.168.11.209" -out kubelet_client.csr
[root@centos-test-ip-209 ca]# openssl x509 -req -in kubelet_client.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out kubelet_client.crt -days 5000

安裝k8s

207
[root@centos-test-ip-207-master ~]# tar xvf kubernetes-server-linux-amd64.tar.gz -C /opt
[root@centos-test-ip-207-master ~]# cd /opt/kubernetes/server/bin
[root@centos-test-ip-207-master bin]# cp -a `ls |egrep -v "*.tar|*_tag"` /usr/bin
[root@centos-test-ip-207-master bin]# mkdir -p /var/log/kubernetes

配置kube-apiserver

[root@centos-test-ip-207-master bin]# cat /usr/lib/systemd/system/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=etcd.service
Wants=etcd.service

[Service]
EnvironmentFile=/etc/kubernetes/apiserver.conf
ExecStart=/usr/bin/kube-apiserver $KUBE_API_ARGS
Restart=on-failure
Type=notify
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

配置apiserver.conf

[root@centos-test-ip-207-master bin]# cat /etc/kubernetes/apiserver.conf
KUBE_API_ARGS="\
    --storage-backend=etcd3 \
    --etcd-servers=http://192.168.11.207:2379,http://192.168.11.208:2379,http://192.168.11.209:2379 \
    --bind-address=0.0.0.0 \
    --secure-port=6443  \
    --service-cluster-ip-range=172.18.0.0/16 \
    --service-node-port-range=1-65535 \
    --kubelet-port=10250 \
    --advertise-address=192.168.11.207 \
    --allow-privileged=false \
    --anonymous-auth=false \
    --client-ca-file=/etc/kubernetes/ca/ca.crt \
    --tls-private-key-file=/etc/kubernetes/ca/apiserver-key.pem \
    --tls-cert-file=/etc/kubernetes/ca/apiserver.pem \
    --enable-admission-plugins=NamespaceLifecycle,LimitRanger,NamespaceExists,SecurityContextDeny,ServiceAccount,DefaultStorageClass,ResourceQuota \
    --logtostderr=true \
    --log-dir=/var/log/kubernets \
    --v=2"

注：
#解釋說明
--etcd-servers #連接到etcd集群
--secure-port #開啟安全端口6443
--client-ca-file、--tls-private-key-file、--tls-cert-file配置CA證書
--enable-admission-plugins #開啟準入權限
--anonymous-auth=false #不接受匿名訪問,若為true,則表示接受,此處設置為false,便于dashboard訪問

配置kube-controller-manager

[root@centos-test-ip-207-master bin]# cat /etc/kubernetes/kube-controller-config.yaml
apiVersion: v1
kind: Config
users:
- name: controller
  user:
    client-certificate: /etc/kubernetes/ca/cs_client.crt
    client-key: /etc/kubernetes/ca/cs_client.key
clusters:
- name: local
  cluster:
    certificate-authority: /etc/kubernetes/ca/ca.crt
contexts:
- context:
    cluster: local
    user: controller
  name: default-context
current-context: default-context

配置kube-controller-manager.service

[root@centos-test-ip-207-master bin]# cat /usr/lib/systemd/system/kube-controller-manager.service
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=kube-apiserver.service
Requires=kube-apiserver.service

[Service]
EnvironmentFile=/etc/kubernetes/controller-manager.conf
ExecStart=/usr/bin/kube-controller-manager $KUBE_CONTROLLER_MANAGER_ARGS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

配置controller-manager.conf

[root@centos-test-ip-207-master bin]# cat /etc/kubernetes/controller-manager.conf
KUBE_CONTROLLER_MANAGER_ARGS="\
    --master=https://192.168.11.207:6443 \
    --service-account-private-key-file=/etc/kubernetes/ca/apiserver-key.pem \
    --root-ca-file=/etc/kubernetes/ca/ca.crt \
    --cluster-signing-cert-file=/etc/kubernetes/ca/ca.crt \
    --cluster-signing-key-file=/etc/kubernetes/ca/ca.key \
    --kubeconfig=/etc/kubernetes/kube-controller-config.yaml \
    --logtostderr=true \
    --log-dir=/var/log/kubernetes \
    --v=2"

注：
master連接到master節點
service-account-private-key-file、root-ca-file、cluster-signing-cert-file、cluster-signing-key-file配置CA證書
kubeconfig是配置文件

配置kube-scheduler

[root@centos-test-ip-207-master bin]# cat /etc/kubernetes/kube-scheduler-config.yaml
apiVersion: v1
kind: Config
users:
- name: scheduler
  user:
    client-certificate: /etc/kubernetes/ca/cs_client.crt
    client-key: /etc/kubernetes/ca/cs_client.key
clusters:
- name: local
  cluster:
    certificate-authority: /etc/kubernetes/ca/ca.crt
contexts:
- context:
    cluster: local
    user: scheduler
  name: default-context
current-context: default-context
[root@centos-test-ip-207-master bin]# cat /usr/lib/systemd/system/kube-scheduler.service
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=kube-apiserver.service
Requires=kube-apiserver.service

[Service]
User=root
EnvironmentFile=/etc/kubernetes/scheduler.conf
ExecStart=/usr/bin/kube-scheduler $KUBE_SCHEDULER_ARGS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
[root@centos-test-ip-207-master bin]# cat /etc/kubernetes/scheduler.conf
KUBE_SCHEDULER_ARGS="\
    --master=https://192.168.11.207:6443 \
    --kubeconfig=/etc/kubernetes/kube-scheduler-config.yaml \
    --logtostderr=true \
    --log-dir=/var/log/kubernetes \
    --v=2"

啟動master

systemctl daemon-reload
systemctl start kube-apiserver.service
systemctl enable kube-apiserver.service
systemctl start kube-controller-manager.service
systemctl enable kube-controller-manager.service
systemctl start kube-scheduler.service
systemctl enable kube-scheduler.service

日志查看

journalctl -xeu kube-apiserver --no-pager
journalctl -xeu kube-controller-manager --no-pager
journalctl -xeu kube-scheduler --no-pager
# 實時查看加 -f

節點部署K8S

從(節點)同步操作

tar -zxvf kubernetes-server-linux-amd64.tar.gz -C /opt
cd /opt/kubernetes/server/bin
cp -a kubectl kubelet kube-proxy /usr/bin/
mkdir -p /var/log/kubernetes
cat /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
# 修改內核參數,iptables過濾規則生效.如果未用到可忽略
sysctl -p  #配置生效

208 配置kubelet

[root@centos-test-ip-208 ~]# cat /etc/kubernetes/kubelet-config.yaml
apiVersion: v1
kind: Config
users:
- name: kubelet
  user:
    client-certificate: /etc/kubernetes/ca/kubelet_client.crt
    client-key: /etc/kubernetes/ca/kubelet_client.key
clusters:
- cluster:
    certificate-authority: /etc/kubernetes/ca/ca.crt
    server: https://192.168.11.207:6443
  name: local
contexts:
- context:
    cluster: local
    user: kubelet
  name: default-context
current-context: default-context
preferences: {}
[root@centos-test-ip-208 ~]# cat /usr/lib/systemd/system/kubelet.service
[Unit]
Description=Kubelet Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=docker.service
Requires=docker.service

[Service]
EnvironmentFile=/etc/kubernetes/kubelet.conf
ExecStart=/usr/bin/kubelet $KUBELET_ARGS
Restart=on-failure

[Install]
WantedBy=multi-user.target
[root@centos-test-ip-208 ~]#  cat /etc/kubernetes/kubelet.conf
KUBELET_ARGS="\
    --kubeconfig=/etc/kubernetes/kubelet-config.yaml \
    --pod-infra-container-image=registry.aliyuncs.com/archon/pause-amd64:3.0 \
    --hostname-override=192.168.11.208 \
    --network-plugin=cni \
    --cni-conf-dir=/etc/cni/net.d \
    --cni-bin-dir=/opt/cni/bin \
    --logtostderr=true \
    --log-dir=/var/log/kubernetes \
    --v=2"

注：###################
--hostname-override #配置node名稱 建議使用node節點的IP
#--pod-infra-container-image=gcr.io/google_containers/pause-amd64:3.0 \
--pod-infra-container-image #指定pod的基礎鏡像 默認是google的,建議改為國內,或者FQ
或者 下載到本地重新命名鏡像
docker pull registry.cn-hangzhou.aliyuncs.com/google-containers/pause-amd64:3.0
docker tag registry.cn-hangzhou.aliyuncs.com/google-containers/pause-amd64:3.0 gcr.io/google_containers/pause-amd64:3.0
--kubeconfig #為配置文件

配置KUBE-代理

[root@centos-test-ip-208 ~]# cat /etc/kubernetes/proxy-config.yaml
apiVersion: v1
kind: Config
users:
- name: proxy
  user:
    client-certificate: /etc/kubernetes/ca/kubelet_client.crt
    client-key: /etc/kubernetes/ca/kubelet_client.key
clusters:
- cluster:
    certificate-authority: /etc/kubernetes/ca/ca.crt
    server: https://192.168.11.207:6443
  name: local
contexts:
- context:
    cluster: local
    user: proxy
  name: default-context
current-context: default-context
preferences: {}
[root@centos-test-ip-208 ~]# cat /usr/lib/systemd/system/kube-proxy.service
[Unit]
Description=Kube-Proxy Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target
Requires=network.service

[Service]
EnvironmentFile=/etc/kubernetes/proxy.conf
ExecStart=/usr/bin/kube-proxy $KUBE_PROXY_ARGS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
[root@centos-test-ip-208 ~]# cat /etc/kubernetes/proxy.conf
KUBE_PROXY_ARGS="\
    --master=https://192.168.11.207:6443 \
    --hostname-override=192.168.11.208 \
    --kubeconfig=/etc/kubernetes/proxy-config.yaml \
    --logtostderr=true \
    --log-dir=/var/log/kubernetes \
    --v=2"

209 配置kubelet

[root@centos-test-ip-209 ~]# cat /etc/kubernetes/kubelet-config.yaml
apiVersion: v1
kind: Config
users:
- name: kubelet
  user:
    client-certificate: /etc/kubernetes/ca/kubelet_client.crt
    client-key: /etc/kubernetes/ca/kubelet_client.key
clusters:
- cluster:
    certificate-authority: /etc/kubernetes/ca/ca.crt
    server: https://192.168.11.207:6443
  name: local
contexts:
- context:
    cluster: local
    user: kubelet
  name: default-context
current-context: default-context
preferences: {}
[root@centos-test-ip-209 ~]# cat /usr/lib/systemd/system/kubelet.service
[Unit]
Description=Kubelet Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=docker.service
Requires=docker.service

[Service]
EnvironmentFile=/etc/kubernetes/kubelet.conf
ExecStart=/usr/bin/kubelet $KUBELET_ARGS
Restart=on-failure

[Install]
WantedBy=multi-user.target
[root@centos-test-ip-209 ~]# cat /etc/kubernetes/kubelet.conf
KUBELET_ARGS="\
    --kubeconfig=/etc/kubernetes/kubelet-config.yaml \
    --pod-infra-container-image=registry.aliyuncs.com/archon/pause-amd64:3.0 \
    --hostname-override=192.168.11.209 \
    --network-plugin=cni \
    --cni-conf-dir=/etc/cni/net.d \
    --cni-bin-dir=/opt/cni/bin \
    --logtostderr=true \
    --log-dir=/var/log/kubernetes \
    --v=2"

注：
###################
--hostname-override #配置node名稱 建議使用node節點的IP
#--pod-infra-container-image=gcr.io/google_containers/pause-amd64:3.0 \
--pod-infra-container-image #指定pod的基礎鏡像 默認是google的,建議改為國內,或者FQ
或者 下載到本地重新命名鏡像
docker pull registry.cn-hangzhou.aliyuncs.com/google-containers/pause-amd64:3.0
docker tag registry.cn-hangzhou.aliyuncs.com/google-containers/pause-amd64:3.0 gcr.io/google_containers/pause-amd64:3.0
--kubeconfig #為配置文件

配置KUBE-代理

 [root@centos-test-ip-209 ~]# cat /etc/kubernetes/proxy-config.yaml
apiVersion: v1
kind: Config
users:
- name: proxy
  user:
    client-certificate: /etc/kubernetes/ca/kubelet_client.crt
    client-key: /etc/kubernetes/ca/kubelet_client.key
clusters:
- cluster:
    certificate-authority: /etc/kubernetes/ca/ca.crt
    server: https://192.168.3.121:6443
  name: local
contexts:
- context:
    cluster: local
    user: proxy
  name: default-context
current-context: default-context
preferences: {}
 [root@centos-test-ip-209 ~]# cat /usr/lib/systemd/system/kube-proxy.service
[Unit]
Description=Kube-Proxy Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target
Requires=network.service

[Service]
EnvironmentFile=/etc/kubernetes/proxy.conf
ExecStart=/usr/bin/kube-proxy $KUBE_PROXY_ARGS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
 [root@centos-test-ip-209 ~]# cat /etc/kubernetes/proxy.conf
KUBE_PROXY_ARGS="\
    --master=https://192.168.11.207:6443 \
    --hostname-override=192.168.11.209 \
    --kubeconfig=/etc/kubernetes/proxy-config.yaml \
    --logtostderr=true \
    --log-dir=/var/log/kubernetes \
    --v=2"

注：
--hostname-override #配置node名稱,要與kubelet對應，kubelet配置了，則kube-proxy也要配置
--master #連接master服務
--kubeconfig #為配置文件

啟動節點，日志查看 #注：一定要關閉swap分區

從(節點)同步操作

systemctl daemon-reload
systemctl start kubelet.service
systemctl enable kubelet.service
systemctl start kube-proxy.service
systemctl enable kube-proxy.service
journalctl -xeu kubelet --no-pager
journalctl -xeu kube-proxy --no-pager
# 實時查看加 -f

master查看節點

[root@centos-test-ip-207-master ~]# kubectl get nodes
NAME             STATUS    ROLES     AGE       VERSION
192.168.11.208   Ready     <none>    1d        v1.10.7
192.168.11.209   Ready     <none>    1d        v1.10.7

集群測試

配置nginx 測試文件 (master)

[root@centos-test-ip-207-master bin]# cat  nginx-rc.yaml
apiVersion: v1
kind: ReplicationController
metadata:
  name: nginx-rc
  labels:
    name: nginx-rc
spec:
  replicas: 2
  selector:
    name: nginx-pod
  template:
    metadata:
      labels:
        name: nginx-pod
    spec:
      containers:
      - name: nginx
        image: nginx
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 80
[root@centos-test-ip-207-master bin]# cat nginx-svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: nginx-service
  labels:
    name: nginx-service
spec:
  type: NodePort
  ports:
  - port: 80
    protocol: TCP
    targetPort: 80
    nodePort: 30081
  selector:
    name: nginx-pod

啟動

master(207)

kubectl create -f nginx-rc.yaml
kubectl create -f nginx-svc.yaml

#查看pod創建情況

[root@centos-test-ip-207-master bin]# kubectl get pod -o wide
NAME             READY     STATUS    RESTARTS   AGE       IP             NODE
nginx-rc-d9kkc   1/1       Running   0          1d        172.18.30.2    192.168.11.209
nginx-rc-l9ctn   1/1       Running   0          1d        172.18.101.2   192.168.11.208

注：http://節點:30081/ 出現nginx界面配置完成

刪除服務及nginx的部署 #配置文件出現問題以下命令可以刪除重新操作

kubectl delete -f nginx-svc.yaml
kubectl delete -f nginx-rc.yaml

界面 UI 下載部署 (master)

(主)207 操作

下載dashboard yaml
wget https://raw.githubusercontent.com/kubernetes/dashboard/master/src/deploy/recommended/kubernetes-dashboard.yaml
修改文件 kubernetes-dashboard.yaml
image 那里 要修改下.默認的地址被墻了

#image: k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.0
image: mirrorgooglecontainers/kubernetes-dashboard-amd64:v1.8.3
# ------------------- Dashboard Service ------------------- #

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system
spec:
  type: NodePort                                 #  添加  type:NodePort
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30000                            # 添加 nodePort: 30000
  selector:
    k8s-app: kubernetes-dashboard
創建權限控制yaml
dashboard-admin.yaml
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
  labels:
    k8s-app: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: kubernetes-dashboard
  namespace: kube-system

創建，查看

kubectl create -f kubernetes-dashboard.yaml
kubectl create -f dashboard-admin.yaml
[root@centos-test-ip-207-master ~]#  kubectl  get pods --all-namespaces -o wide
NAMESPACE     NAME                                    READY     STATUS    RESTARTS   AGE       IP             NODE
default       nginx-rc-d9kkc                          1/1       Running   0          1d        172.18.30.2    192.168.11.209
default       nginx-rc-l9ctn                          1/1       Running   0          1d        172.18.101.2   192.168.11.208
kube-system   kubernetes-dashboard-66c9d98865-qgbgq   1/1       Running   0          20h       172.18.30.9    192.168.11.209

訪問 # 火狐訪問 google 出現不了秘鑰界面

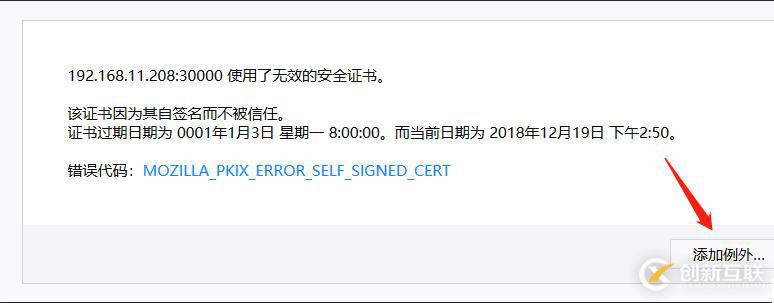

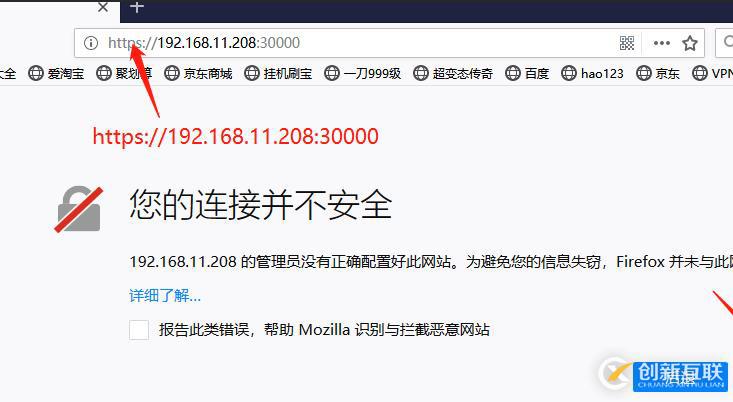

注意：HTTPS 訪問

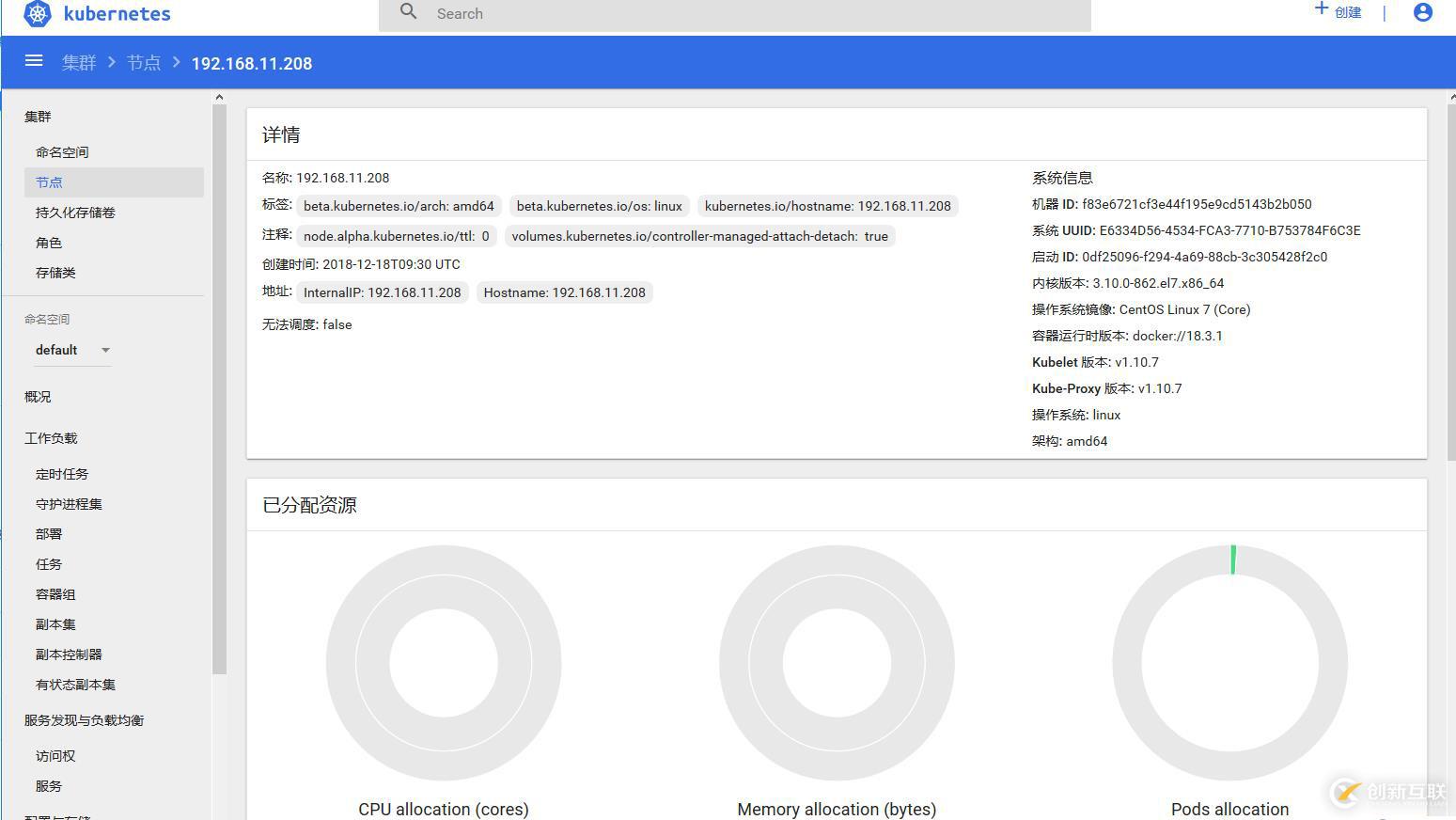

直接訪問 https://節點:配置的端口 訪問

kubernetes k8s 部署
kubernetes k8s 部署

kubernetes k8s 部署
kubernetes k8s 部署

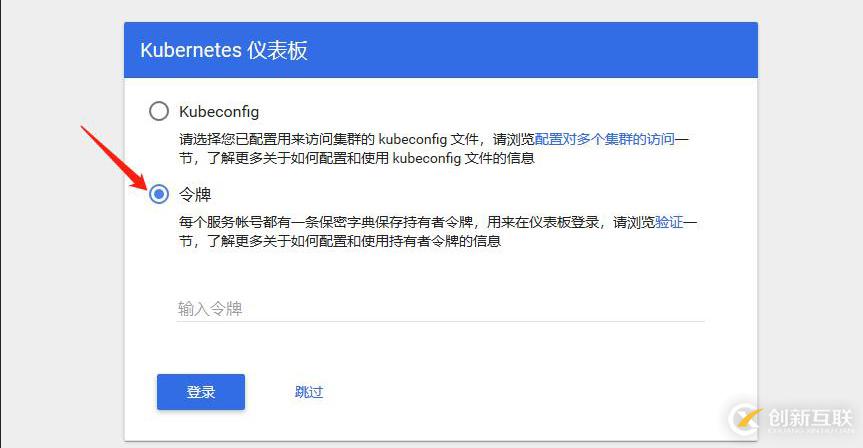

訪問會提示登錄.我們采取token登錄
kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}') | grep token
[root@centos-test-ip-207-master ~]# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}') | grep token
Name:       default-token-t8hbl
Type:       kubernetes.io/service-account-token
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9..(很多字符)

####
#將這些字符復制到前端登錄即可.

另外有需要云服務器可以了解下創新互聯cdcxhl.cn，海內外云服務器15元起步，三天無理由+7*72小時售后在線，公司持有idc許可證，提供“云服務器、裸金屬服務器、高防服務器、香港服務器、美國服務器、虛擬主機、免備案服務器”等云主機租用服務以及企業上云的綜合解決方案，具有“安全穩定、簡單易用、服務可用性高、性價比高”等特點與優勢，專為企業上云打造定制，能夠滿足用戶豐富、多元化的應用場景需求。

文章名稱：kubernetesk8s部署-創新互聯
網頁地址：http://jinyejixie.com/article24/ceshce.html

成都網站建設公司_創新互聯，為您提供商城網站、企業網站制作、面包屑導航、電子商務、靜態網站、做網站

廣告

聲明：本網站發布的內容（圖片、視頻和文字）以用戶投稿、用戶轉載內容為主，如果涉及侵權請盡快告知，我們將會在第一時間刪除。文章觀點不代表本網站立場，如需處理請聯系客服。電話：028-86922220；郵箱：631063699@qq.com。內容未經允許不得轉載，或轉載時需注明來源： 創新互聯

h5響應式網站建設
英德市| 固阳县| 平原县| 铜鼓县| 怀安县| 芦溪县| 盐边县| 天镇县| 新野县| 鄄城县| 宣城市| 毕节市| 姚安县| 孝昌县| 逊克县| 申扎县| 隆德县| 宾川县| 高唐县| 高碑店市| 辽宁省| 丽水市| 贡觉县| 黑河市| 遵义县| 西盟| 灌南县| 弥渡县| 盈江县| 香港 | 武夷山市| 乌兰浩特市| 赣榆县| 滕州市| 瑞安市| 石首市| 海南省| 凌云县| 邵阳市| 新昌县| 宁武县|
