DHCPRelay（DHCPR）DHCP中繼 也叫做DHCP中繼代理，如果DHCP客戶機與DHCP服務器在同一個物理網段，則客戶機可以正確地獲得動態分配的ip地址。如果不在同一個物理網段，則需要DHCP Relay Agent(中繼代理)。用DHCP Relay代理可以去掉在每個物理的網段都要有DHCP服務器的必要,它可以傳遞消息到不在同一個物理子網的DHCP服務器，也可以將服務器的消息傳回給不在同一個物理子網的DHCP客戶機。

為徽縣等地區用戶提供了全套網頁設計制作服務，及徽縣網站建設行業解決方案。主營業務為成都網站設計、網站建設、徽縣網站設計，以傳統方式定制建設網站，并提供域名空間備案等一條龍服務，秉承以專業、用心的態度為用戶提供真誠的服務。我們深信只要達到每一位用戶的要求，就會得到認可，從而選擇與我們長期合作。這樣，我們也可以走得更遠！

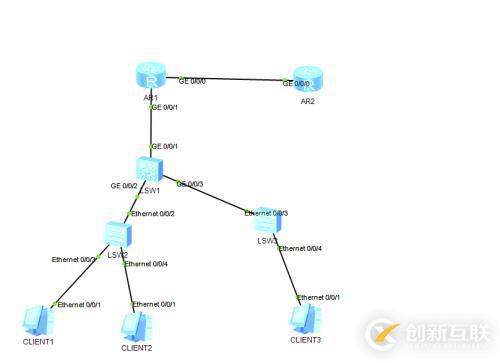

實驗需求：

• C1、C2、C3屬于不同的VLAN，分別是VLAN10,20,30;

• 三層交換實現PC間互通，并通過dhcp中繼代理在R2獲取IP地址;

• R2開啟dhcp服務為PC分配IP地址;

實驗步驟:

實驗所用 ：HUAWEI eNsp

1.LSW2交換機 批量添加VLAN 10,20  配置 Ethernet 0/0/3 VLAN 10 讓PC1屬于VLAN10; 配置Ethernet 0/0/4 PC2屬于VLAN20  配置Ethernet 0/0/2 中繼TRUNK口;

<Huawei>sy  //特權模式;

Enter system view, return user view with Ctrl+Z.

[Huawei]vlan bat 10 20  //批量添加VLAN10,20;

Info: This operation may take a few seconds. Please wait for a moment...done.

Mar 31 2016 19:12:26-08:00 Huawei DS/4/DATASYNC_CFGCHANGE:OID 1.3.6.1.4.1.2011.5

.25.191.3.1 configurations have been changed. The current change number is 4, th

e change loop count is 0, and the maximum number of records is 4095.

[Huawei]int e0/0/3  //進GigabitEthernet0/0/3物理接口;

[Huawei-Ethernet0/0/3]port link-type access   //設置為訪問口;

[Huawei-Ethernet0/0/3]port default vlan 10    //添加為VLAN10;

[Huawei-Ethernet0/0/3]int e0/0/4    //進GigabitEthernet0/0/4物理接口;

[Huawei-Ethernet0/0/4]port link-type access   //設置為訪問口;

[Huawei-Ethernet0/0/4]port default vlan 20    //添加為VLAN20;

[Huawei-Ethernet0/0/4]int e0/0/2   //進GigabitEthernet0/0/2物理接口;

[Huawei-Ethernet0/0/2]port link-type trunk    //設置為中繼TRUNK口;

[Huawei-Ethernet0/0/2]port trunk allow-pass vlan 10 20   //允許VLAN10,20成員的流量通過;

2.LSW1批量添加VLAN10,20  配置VLAN10,20,30 IP地址為PC的網關地址及子網掩碼  添加VLAN100 為GigabitEthernet0/0/1 設置IP地址實現上口互聯  設置靜態路由所有IP地址轉發到10.0.0.2 開啟dhcp功能并設置dhcp中繼;

<Huawei>sy   //特權模式;

[Huawei]vlan bat 10 20  //批量添加VLAN10,20;

Info: This operation may take a few seconds. Please wait for a moment...done.

[Huawei]int vlan 10   //進VLAN10接口;

[Huawei-Vlanif10]ip add 192.168.1.1 24  //配置IP地址及子網掩碼;

[Huawei-Vlanif10]q

[Huawei]int vlan 20   //進VLAN20接口;

[Huawei-Vlanif20]

Mar 31 2016 19:18:31-08:00 Huawei %%01IFNET/4/IF_STATE(l)[3]:Interface Vlanif20

has turned into UP state.

[Huawei-Vlanif20]ip add 192.168.2.1 24  //配置IP地址、子網掩碼;

[Huawei-Vlanif20]q

[Huawei]int vlan 30  //進VLAN30接口;

[Huawei-Vlanif30]

Mar 31 2016 19:18:48-08:00 Huawei %%01IFNET/4/IF_STATE(l)[5]:Interface Vlanif30

has turned into UP state.

[Huawei-Vlanif30]ip add 192.168.3.1 24  //配置IP地址、子網掩碼;

[Huawei-Vlanif30]

Mar 31 2016 19:18:55-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[6]:The line protocol

 IP on the interface Vlanif30 has entered the UP state.

[Huawei]vlan 100  //創建VLAN100;

[Huawei-vlan100]int vlan 100   //進VLAN100接口;

[Huawei-Vlanif100]ip add 10.0.0.1 24  //配置IP地址及子網掩碼;

[Huawei]int g0/0/1  //進GigabitEthernet0/0/1物理接口;

[Huawei-GigabitEthernet0/0/1]port link-type access  //設置接口類型為訪問口;

[Huawei-GigabitEthernet0/0/1]port default vlan 100  //添加進VLAN100;

[Huawei-GigabitEthernet0/0/1]q

[Huawei]ip route-static 0.0.0.0 0.0.0.0 10.0.0.2   //配置靜態路由;

[Huawei]q

<Huawei>ping 12.0.0.3   //測試上層互通性;

 PING 12.0.0.3: 56  data bytes, press CTRL_C to break

  Request time out

  Reply from 12.0.0.3: bytes=56 Sequence=2 ttl=254 time=130 ms

  Reply from 12.0.0.3: bytes=56 Sequence=3 ttl=254 time=40 ms

  Reply from 12.0.0.3: bytes=56 Sequence=4 ttl=254 time=20 ms

  Reply from 12.0.0.3: bytes=56 Sequence=5 ttl=254 time=60 ms

[Huawei]dhcp enable  //開啟dhcp服務;

Info: The operation may take a few seconds. Please wait for a moment.done.

[Huawei]int vlan 10   //進VLAN10接口;

[Huawei-Vlanif10]dhcp select relay  //配置dhcp中繼;

[Huawei-Vlanif10]dhcp relay server-ip 12.0.0.3  //設置dhcp中繼服務端地址;

[Huawei-Vlanif10]int vlan 20   //進VLAN20接口;

[Huawei-Vlanif20]dhcp select relay  //配置dhcp中繼;

[Huawei-Vlanif20]dhcp relay server-ip 12.0.0.3  //設置dhcp中繼服務端地址;

[Huawei-Vlanif20]int vlan 30   //進VLAN30接口;

[Huawei-Vlanif30]dhcp select relay  //配置dhcp中繼;

[Huawei-Vlanif30]dhcp relay server-ip 12.0.0.3   //設置dhcp中繼服務端地址;

3.路由器AR1配置GigabitEthernet0/0/1 、GigabitEthernet0/0/0 IP地址   設置靜態路由實現網絡互通;

<Huawei>sy  //特權模式;

Enter system view, return user view with Ctrl+Z.

[Huawei]int g0/0/1  //進物理接口GigabitEthernet0/0/1;

[Huawei-GigabitEthernet0/0/1]ip add 10.0.0.2 24   //配置IP地址及子網掩碼;

Mar 31 2016 19:19:58-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol

 IP on the interface GigabitEthernet0/0/1 has entered the UP state.

[Huawei]int g0/0/0  //進接口GigabitEthernet0/0/0;

[Huawei-GigabitEthernet0/0/0]ip add 12.0.0.2 24  //配置IP地址及子網掩碼;

[Huawei-GigabitEthernet0/0/0]q

[Huawei]ip route-static 0.0.0.0 0.0.0.0 12.0.0.3  //配置靜態路由;

[Huawei]ip route-static 192.168.1.0 255.255.255.0 10.0.0.1

[Huawei]ip route-static 192.168.2.0 255.255.255.0 10.0.0.1

[Huawei]ip route-static 192.168.3.0 255.255.255.0 10.0.0.1

4.路由器AR2配置GigabitEthernet0/0/0 IP地址  配置v10、v20、v30 dhcp服務端為PC分配IP地址、網關、DNS  配置靜態路由實現網絡互通  進接口GigabitEthernet0/0/0選擇全局的地址池給DHCP客戶端使用;

<Huawei>sy  //特權模式;

Enter system view, return user view with Ctrl+Z.

[Huawei]int g0/0/0   //進物理接口GigabitEthernet0/0/0;

[Huawei-GigabitEthernet0/0/0]ip add 12.0.0.3 24   //配置IP地址及子網掩碼;

Mar 31 2016 19:21:30-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol

 IP on the interface GigabitEthernet0/0/0 has entered the UP state.

[Huawei-GigabitEthernet0/0/0]q  //退出;

[Huawei]ip pool v10    //建立v10地址池;

Info: It's successful to create an IP address pool.

[Huawei-ip-pool-v10]network 192.168.1.0 mask 24   //網絡段及子網掩碼;

[Huawei-ip-pool-v10]gateway-list 192.168.1.1     //網關地址;

[Huawei-ip-pool-v10]dns-list 2.2.2.2 4.4.4.4     //DNS地址;

[Huawei-ip-pool-v10]q

[Huawei]ip pool v20    //建立v20地址池;

Info: It's successful to create an IP address pool.

[Huawei-ip-pool-v20]network 192.168.2.0 mask 24   //網絡段及子網掩碼;

[Huawei-ip-pool-v20]gateway-list 192.168.2.1    //網關地址;

[Huawei-ip-pool-v20]dns-list 2.2.2.2        // DNS地址;

[Huawei-ip-pool-v20]q

[Huawei]ip pool v30    //建立v30地址池;

Info: It's successful to create an IP address pool.

[Huawei-ip-pool-v30]network 192.168.3.0 mask 24  //網絡段及子網掩碼;

[Huawei-ip-pool-v30]gateway-list 192.168.3.1    //網關地址;

[Huawei-ip-pool-v30]dns-list 2.2.2.2        // DNS地址;

[Huawei-ip-pool-v30]q

[Huawei]ip route-static 0.0.0.0 0.0.0.0 12.0.0.2  //設置靜態路由;

[Huawei]dhcp enable    //開啟dhcp功能;

Info: The operation may take a few seconds. Please wait for a moment.done.

[Huawei]int g0/0/0    //進物理接口GigabitEthernet0/0/0;

[Huawei-GigabitEthernet0/0/0]dhcp select global  //dhcp選擇全局地址池;

5.測試PC正常獲取IP地址、子網掩碼、DNS等信息  測試全網互通;

PC>ipconfig  //PC1獲取IP地址、子網掩碼、DNS等信息;

Link local IPv6 address...........: fe80::5689:98ff:fe2e:78f6

IPv6 address......................: :: / 128

IPv6 gateway......................: ::

IPv4 address......................: 192.168.1.254

Subnet mask.......................: 255.255.255.0

Gateway...........................: 192.168.1.1

Physical address..................: 54-89-98-2E-78-F6

DNS server........................: 2.2.2.2

                  4.4.4.4

PC>ipconfig   //PC2獲取IP地址、子網掩碼、DNS等信息;

Link local IPv6 address...........: fe80::5689:98ff:fe5b:5969

IPv6 address......................: :: / 128

IPv6 gateway......................: ::

IPv4 address......................: 192.168.2.254

Subnet mask.......................: 255.255.255.0

Gateway...........................: 192.168.2.1

Physical address..................: 54-89-98-5B-59-69

DNS server........................: 2.2.2.2

PC>ipconfig   //PC3獲取IP地址、子網掩碼、DNS等信息;

Link local IPv6 address...........: fe80::5689:98ff:fef1:2fe4

IPv6 address......................: :: / 128

IPv6 gateway......................: ::

IPv4 address......................: 192.168.3.254

Subnet mask.......................: 255.255.255.0

Gateway...........................: 192.168.3.1

Physical address..................: 54-89-98-F1-2F-E4

DNS server........................: 2.2.2.2

PC>ping 192.168.3.254   //測試PC1、PC3連通性;

Ping 192.168.3.254: 32 data bytes, Press Ctrl_C to break

Request timeout!

From 192.168.3.254: bytes=32 seq=2 ttl=127 time=78 ms

From 192.168.3.254: bytes=32 seq=3 ttl=127 time=78 ms

From 192.168.3.254: bytes=32 seq=4 ttl=127 time=47 ms

PC>ping 12.0.0.3  //測試PC1、AR2連通性;

Ping 12.0.0.3: 32 data bytes, Press Ctrl_C to break

From 12.0.0.3: bytes=32 seq=1 ttl=253 time=32 ms

From 12.0.0.3: bytes=32 seq=2 ttl=253 time=32 ms
