前情回顧

部署K8s多節點,首先得署單節master的k8s群集
詳情參考:

blog.csdn.net/caozhengtao1213/article/details/103987039

本篇內容

1.部署Master2
2.Nginx負載均衡部署-keeplived服務
3.node節點修改配置文件統一VIP
4.創建Pod
5.創建UI顯示界面

成都創新互聯是一家集網站建設,黃浦企業網站建設,黃浦品牌網站建設,網站定制,黃浦網站建設報價,網絡營銷,網絡優化,黃浦網站推廣為一體的創新建站企業，幫助傳統企業提升企業形象加強企業競爭力?？沙浞譂M足這一群體相比中小企業更為豐富、高端、多元的互聯網需求。同時我們時刻保持專業、時尚、前沿，時刻以成就客戶成長自我，堅持不斷學習、思考、沉淀、凈化自己，讓我們?yōu)楦嗟钠髽I(yè)打造出實用型網站。

環境準備

角色	地址	安裝組件
master	192.168.142.129	kube-apiserver kube-controller-manager kube-scheduler etcd
master2	192.168.142.120	kube-apiserver kube-controller-manager kube-scheduler
node1	192.168.142.130	kubelet kube-proxy docker flannel etcd
node2	192.168.142.131	kubelet kube-proxy docker flannel etcd
nginx1(lbm)	192.168.142.140	nginx keepalived
nginx2(lbb)	192.168.142.150	nginx keepalived
VIP	192.168.142.20	-

資源包鏈接:

https://pan.baidu.com/s/183G9ZzBNdcUUFV7Y8-K4CQ

提取碼：6z0j

一、部署Master2

1.遠程復制master的相關目錄

關閉防火墻及安全功能

systemctl stop firewalld.service
setenforce 0

復制kubernetes目錄到master2

scp -r /opt/kubernetes/ root@192.168.142.120:/opt

復制etcd目錄到master2(內含證書)

scp -r /opt/etcd/ root@192.168.142.120:/opt

復制服務啟動腳本到master2

scp /usr/lib/systemd/system/{kube-apiserver,kube-controller-manager,kube-scheduler}.service root@192.168.142.120:/usr/lib/systemd/system/

2.修改kube-apiserver配置文件

vim /opt/kubernetes/cfg/kube-apiserver

#將第5和7行IP地址改為master2主機的地址
--bind-address=192.168.142.120 \
--advertise-address=192.168.142.120 \

3.啟動服務并設定開機自啟

systemctl start kube-apiserver.service
systemctl enable kube-apiserver.service

systemctl start kube-controller-manager.service
systemctl enable kube-controller-manager.service

systemctl start kube-scheduler.service
systemctl enable kube-scheduler.service

4.追加環境變量并生效

vim /etc/profile
#末尾追加
export PATH=$PATH:/opt/kubernetes/bin/

source /etc/profile

5.查看node節點

kubectl get node

NAME              STATUS   ROLES    AGE     VERSION
192.168.142.130   Ready    <none>   10d12h   v1.12.3
192.168.142.131   Ready    <none>   10d11h   v1.12.3

二、Nginx負載均衡部署-keeplived服務

1.在lbm&lbb端的操作,安裝nginx服務

把nginx.sh和keepalived.conf腳本拷貝到家目錄(后面會用到)

#nginx.sh

cat > /etc/yum.repos.d/nginx.repo << EOF
[nginx]
name=nginx repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=0
EOF

stream {

   log_format  main  '$remote_addr $upstream_addr - [$time_local] $status $upstream_bytes_sent';
    access_log  /var/log/nginx/k8s-access.log  main;

    upstream k8s-apiserver {
        server 10.0.0.3:6443;
        server 10.0.0.8:6443;
    }
    server {
                listen 6443;
                proxy_pass k8s-apiserver;
    }
    }

#keepalived.conf
! Configuration File for keepalived

global_defs {
   # 接收郵件地址
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   # 郵件發送地址
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id NGINX_MASTER
}

vrrp_script check_nginx {
    script "/usr/local/nginx/sbin/check_nginx.sh"
}

vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 51 # VRRP 路由 ID實例，每個實例是唯一的
    priority 100    # 優先級，備服務器設置 90
    advert_int 1    # 指定VRRP 心跳包通告間隔時間，默認1秒
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        10.0.0.188/24
    }
    track_script {
        check_nginx
    }
}

mkdir /usr/local/nginx/sbin/ -p
vim /usr/local/nginx/sbin/check_nginx.sh

count=$(ps -ef |grep nginx |egrep -cv "grep|$$")

if [ "$count" -eq 0 ];then
    /etc/init.d/keepalived stop
fi

chmod +x /usr/local/nginx/sbin/check_nginx.sh

編輯nginx.repo文件

vim /etc/yum.repos.d/nginx.repo

[nginx]
name=nginx repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=0

安裝nginx服務

yum install nginx -y

添加四層轉發

vim /etc/nginx/nginx.conf
#在第12行下追加以下內容
stream {

   log_format  main  '$remote_addr $upstream_addr - [$time_local] $status $upstream_bytes_sent';
    access_log  /var/log/nginx/k8s-access.log  main;

    upstream k8s-apiserver {
        server 192.168.142.129:6443;        #此處為master的ip地址
        server 192.168.142.120:6443;        #此處為master2的ip地址
    }
    server {
                listen 6443;
                proxy_pass k8s-apiserver;
    }
    }

2.部署keeplived服務

#安裝keepalived
yum install keepalived -y

復制前面的keepalived.conf配置文件，覆蓋安裝后原有的配置文件
cp keepalived.conf /etc/keepalived/keepalived.conf

vim /etc/keepalived/keepalived.conf

script "/etc/nginx/check_nginx.sh"      #18行,目錄改為/etc/nginx/，腳本后寫
interface ens33     #23行,eth0改為ens33，此處的網卡名稱可以使用ifconfig命令查詢
virtual_router_id 51        #24行,vrrp路由ID實例，每個實例是唯一的
priority 100            #25行,優先級，備服務器設置90
virtual_ipaddress {     #31行,
192.168.142.20/24   #32行,vip地址改為之前設定好的192.168.142.20
#38行以下全部刪除

vim /etc/nginx/check_nginx.sh
#統計數量
count=$(ps -ef |grep nginx |egrep -cv "grep|$$")    #統計數量
#匹配為0，關閉keepalived服務
if [ "$count" -eq 0 ];then
    systemctl stop keepalived
fi

chmod +x /etc/nginx/check_nginx.sh

#啟動服務
systemctl start keepalived

查看地址信息

ip a

# lbm地址信息

2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:eb:11:2a brd ff:ff:ff:ff:ff:ff
    inet 192.168.142.140/24 brd 192.168.142.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet 192.168.142.20/24 scope global secondary ens33  //漂移地址在lb01中
       valid_lft forever preferred_lft forever
    inet6 fe80::53ba:daab:3e22:e711/64 scope link
       valid_lft forever preferred_lft forever

#lbb地址信息

2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:c9:9d:88 brd ff:ff:ff:ff:ff:ff
    inet 192.168.142.150/24 brd 192.168.142.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::55c0:6788:9feb:550d/64 scope link
       valid_lft forever preferred_lft forever

驗證地址漂移

#停止lbm端的nginx服務
pkill nginx

#查看服務狀態
systemctl status nginx
systemctl status keepalived.service

#此時判斷條件若為0，keepalived服務則是停止的
ps -ef |grep nginx |egrep -cv "grep|$$"

查看地址信息

ip a

# lbm地址信息

2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:eb:11:2a brd ff:ff:ff:ff:ff:ff
    inet 192.168.142.140/24 brd 192.168.142.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::53ba:daab:3e22:e711/64 scope link
       valid_lft forever preferred_lft forever

#lbb地址信息

2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:c9:9d:88 brd ff:ff:ff:ff:ff:ff
    inet 192.168.142.150/24 brd 192.168.142.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet 192.168.142.20/24 scope global secondary ens33  //漂移地址在lb01中
       valid_lft forever preferred_lft forever
    inet6 fe80::55c0:6788:9feb:550d/64 scope link
       valid_lft forever preferred_lft forever

恢復操作

#在lbm端啟動nginx和keepalived服務
systemctl start nginx
systemctl start keepalived

漂移地址回歸lbm端

ip a

# lbm地址信息

2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:eb:11:2a brd ff:ff:ff:ff:ff:ff
    inet 192.168.142.140/24 brd 192.168.142.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet 192.168.142.20/24 scope global secondary ens33  //漂移地址在lb01中
       valid_lft forever preferred_lft forever
    inet6 fe80::53ba:daab:3e22:e711/64 scope link
       valid_lft forever preferred_lft forever

三、node節點修改配置文件統一VIP（bootstrap.kubeconfig,kubelet.kubeconfig）

cd /opt/kubernetes/cfg/
#配置文件統一修改為VIP
vim /opt/kubernetes/cfg/bootstrap.kubeconfig

server: https://192.168.142.20:6443
#第5行改為Vip的地址

vim /opt/kubernetes/cfg/kubelet.kubeconfig
server: https://192.168.142.20:6443
#第5行改為Vip的地址

vim /opt/kubernetes/cfg/kube-proxy.kubeconfig
server: https://192.168.142.20:6443
#第5行改為Vip的地址

替換完成后自檢

grep 20 *

bootstrap.kubeconfig:    server: https://192.168.142.20:6443
kubelet.kubeconfig:    server: https://192.168.142.20:6443
kube-proxy.kubeconfig:    server: https://192.168.142.20:6443

在lb01上查看nginx的k8s日志

tail /var/log/nginx/k8s-access.log

192.168.142.140 192.168.142.129:6443 - [08/Feb/2020:19:20:40 +0800] 200 1119
192.168.142.140 192.168.142.120:6443 - [08/Feb/2020:19:20:40 +0800] 200 1119
192.168.142.150 192.168.142.129:6443 - [08/Feb/2020:19:20:44 +0800] 200 1120
192.168.142.150 192.168.142.120:6443 - [08/Feb/2020:19:20:44 +0800] 200 1120

四、創建Pod

測試創建Pod

kubectl run nginx --image=nginx

查看狀態

kubectl get pods

綁定群集中的匿名用戶賦予管理員權限(解決日志不可看問題)

kubectl create clusterrolebinding cluster-system-anonymous --clusterrole=cluster-admin --user=system:anonymous

查看Pod網絡

kubectl get pods -o wid

五、創建UI顯示界面

在master1上創建dashborad工作目錄

mkdir /k8s/dashboard

cd /k8s/dashboard
#上傳官方的文件到該目錄中

創建頁面，注意順序

#授權訪問api
kubectl create -f dashboard-rbac.yaml

#進行加密
kubectl create -f dashboard-secret.yaml

#配置應用
kubectl create -f dashboard-configmap.yaml

#控制器
kubectl create -f dashboard-controller.yaml

#發布出去進行訪問
kubectl create -f dashboard-service.yaml

完成后查看創建在指定的kube-system命名空間下

kubectl get pods -n kube-system

查看如何訪問

kubectl get pods,svc -n kube-system

在瀏覽器中輸入nodeIP地址就可以訪問(谷歌瀏覽器無法訪問題解決方法)

1.在master端操作,編寫進行證書自簽

vim dashboard-cert.sh

cat > dashboard-csr.json <<EOF
{
   "CN": "Dashboard",
   "hosts": [],
   "key": {
       "algo": "rsa",
       "size": 2048
   },
   "names": [
       {
           "C": "CN",
           "L": "NanJing",
           "ST": "NanJing"
       }
   ]
}
EOF

K8S_CA=$1
cfssl gencert -ca=$K8S_CA/ca.pem -ca-key=$K8S_CA/ca-key.pem -config=$K8S_CA/ca-config.json -profile=kubernetes dashboard-csr.json | cfssljson -bare dashboard
kubectl delete secret kubernetes-dashboard-certs -n kube-system
kubectl create secret generic kubernetes-dashboard-certs --from-file=./ -n kube-system

2.重新應用新的自簽證書

bash dashboard-cert.sh /root/k8s/apiserver/

3.修改yaml文件

vim dashboard-controller.yaml
#在47行下追加以下內容
          - --tls-key-file=dashboard-key.pem
          - --tls-cert-file=dashboard.pem

4.重新進行部署

kubectl apply -f dashboard-controller.yaml

5.生成登錄令牌

生成令牌

kubectl create -f k8s-admin.yaml

將令牌保存

kubectl get secret -n kube-system

NAME                               TYPE                                  DATA   AGE
dashboard-admin-token-drs7c        kubernetes.io/service-account-token   3      60s
default-token-mmvcg                kubernetes.io/service-account-token   3      55m
kubernetes-dashboard-certs         Opaque                                10     10m
kubernetes-dashboard-key-holder    Opaque                                2      23m
kubernetes-dashboard-token-crqvs   kubernetes.io/service-account-token   3      23m

查看令牌

kubectl describe secret dashboard-admin-token-drs7c -n kube-system

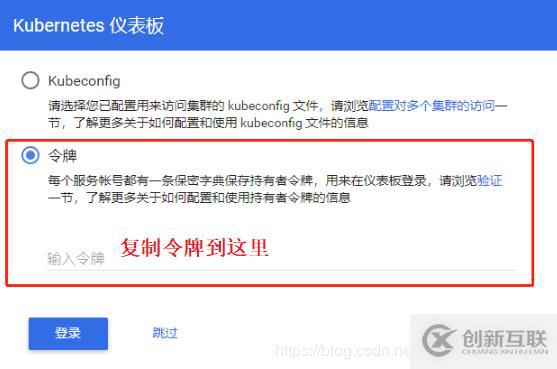

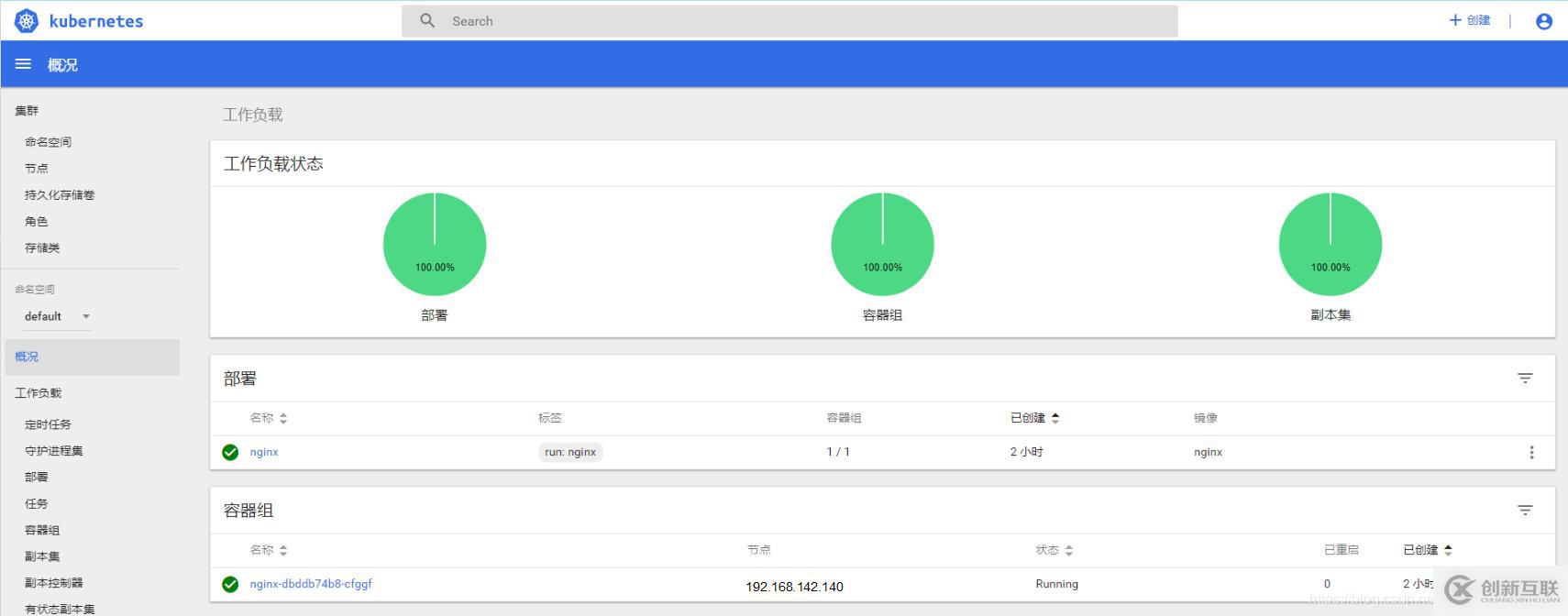

6.復制粘貼令牌后,登錄到UI界面

Kubernetes多節點二進制線網部署(實例!!!)

謝謝閱讀!
