這篇文章將為大家詳細講解有關c#繪制中國象棋棋盤與棋子的方法，小編覺得挺實用的，因此分享給大家做個參考，希望大家閱讀完這篇文章后可以有所收獲。

思路：

1. 繪制中國象棋棋盤，豎線九條，橫線十條。再中間繪制‘楚河'，‘漢界' 。
2. 繪制棋子，然后將棋子布局在棋盤上即可。


涉及知識點：

1. 用戶控件：用于實現棋盤的繪制，重寫 OnPaint(PaintEventArgs e) 方法。
2. Matrix：封裝表示幾何變換的 3x3 仿射矩陣。本例中主要用于旋轉繪制反方的‘漢界'。
3. GraphicsPath：表示一系列相互連接的直線和曲線。本例中主要用于繪制圓形棋子。

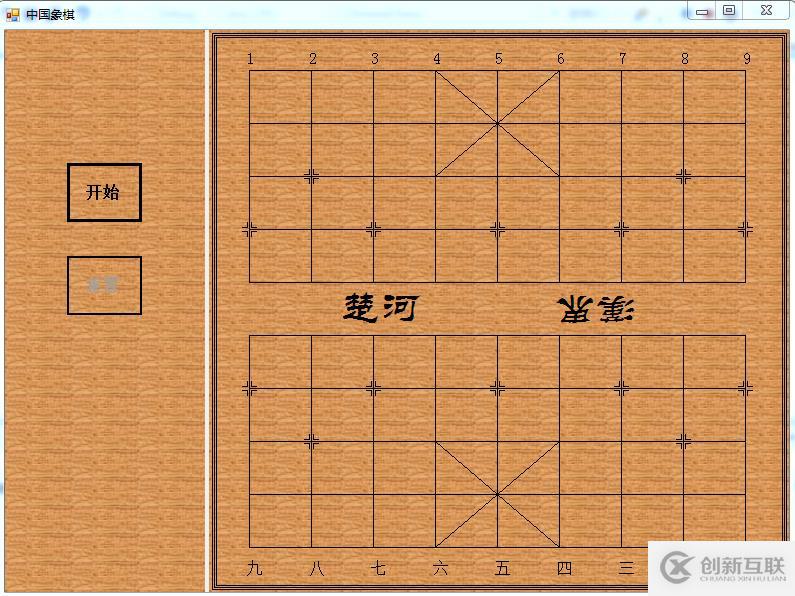

效果圖如下：

（一）

（二）

核心代碼

棋盤核心代碼如下：

protected override void OnPaint(PaintEventArgs e)
  {
   base.OnPaint(e);

   //初始化數組
   InitArrPieceInfo();

   Graphics g = e.Graphics;
   int width = this.Width;
   int height = this.Height;
   int padding = this.Padding.All * 20;
   int center = height / 2;//垂直中心位置
   int s_width = (width - 2 * padding) / 8;//每一條橫線的間距
   int s_heigth = (height - 2 * padding) / 9;//每一條豎線的間距
   int start_x = padding;//起始位置
   int start_y = padding;//起始位置
   Pen pen = new Pen(Brushes.Black, 1.5f);
   Dictionary<string, string[]> dicNums = new Dictionary<string, string[]>();
   dicNums.Add("up", new string[9] { "1", "2", "3", "4", "5", "6", "7", "8", "9" });
   dicNums.Add("down", new string[9] { "九", "八", "七", "六", "五", "四", "三", "二", "一" });
   Font font = new Font("宋體", 12, FontStyle.Regular);
   for (int i = 0; i < 9; i++)
   {
    //豎線九條
    Point p0 = new Point(start_x + i * s_width, start_y);
    Point p1 = new Point(start_x + i * s_width, start_y + (s_heigth * 4));
    Point p2 = new Point(start_x + i * s_width, start_y + (s_heigth * 5));
    Point p3 = new Point(start_x + i * s_width, start_y + (s_heigth * 9));
    g.DrawLine(pen, p0, p1);
    g.DrawLine(pen, p2, p3);
    //上下的文字
    Point p_up = new Point(start_x + i * s_width - 5, padding / 2);
    Point p_down = new Point(start_x + i * s_width - 5, start_y + (s_heigth * 9) + padding / 3);
    g.DrawString(dicNums["up"][i], font, Brushes.Black, p_up);
    g.DrawString(dicNums["down"][i], font, Brushes.Black, p_down);
    //數組賦值
    for (int j = 0; j < 10; j++)
    {
     Point absLocation = ArrPiece[i, j].AbsoluteLocation;
     absLocation.X = start_x + i * s_width;
     ArrPiece[i, j].AbsoluteLocation = absLocation;
    }
   }
   for (int i = 0; i < 10; i++)
   {
    //橫線十條
    Point p0 = new Point(start_x, start_y + i * s_heigth);
    Point p1 = new Point(start_x + s_width * 8, start_y + i * s_heigth);
    g.DrawLine(pen, p0, p1);
    //數組賦值
    for (int j = 0; j < 9; j++)
    {
     Point absLocation = ArrPiece[j, i].AbsoluteLocation;
     absLocation.Y = start_y + i * s_heigth;
     ArrPiece[j, i].AbsoluteLocation = absLocation;
    }
   }
   //繪制九宮格
   for (int i = 0; i < 2; i++)
   {
    Point p0 = new Point(start_x + (3 + i * 2) * s_width, start_y);
    Point p1 = new Point(start_x + (5 - i * 2) * s_width, start_y + (s_heigth * 2));
    Point p2 = new Point(start_x + (3 + i * 2) * s_width, start_y + (s_heigth * 7));
    Point p3 = new Point(start_x + (5 - i * 2) * s_width, start_y + (s_heigth * 9));
    g.DrawLine(pen, p0, p1);
    g.DrawLine(pen, p2, p3);
   }

   //兵和卒處有拐角，從左往右
   for (int i = 0; i < 5; i++)
   {
    int p_x = start_x + 2 * i * s_width;
    int p_y = start_y + 3 * s_heigth;
    DrawCorner(g, pen, p_x, p_y);//兵
    p_y = start_y + 6 * s_heigth;
    DrawCorner(g, pen, p_x, p_y);//卒
   }
   //炮處的拐角，從左往右
   for (int i = 0; i < 2; i++)
   {
    int p_x = start_x + (1 + 6 * i) * s_width;
    int p_y = start_y + 2 * s_heigth;
    DrawCorner(g, pen, p_x, p_y);//炮
    p_y = start_y + 7 * s_heigth;
    DrawCorner(g, pen, p_x, p_y);//炮
   }
   //繪制楚河漢界
   Point p_0 = new Point(2 * s_width, center - 25);
   Point p_1 = new Point(7 * s_width, center + 20);
   font = new Font("方正隸二繁體", 30, FontStyle.Regular);
   g.DrawString("楚河", font, Brushes.Black, p_0);
   Matrix mtxSave = g.Transform;
   Matrix mtxRotate = g.Transform;
   mtxRotate.RotateAt(180, p_1);
   g.Transform = mtxRotate;
   g.DrawString("漢界", font, Brushes.Black, p_1);
   g.Transform = mtxSave;
   //繪制外邊框
   g.DrawRectangle(pen, 3, 3, width - 6, height - 6);
   g.DrawRectangle(pen, 5, 5, width - 10, height - 10);
   g.DrawRectangle(pen, 7, 7, width - 14, height - 14);
  }
