項目地址

https://github.com/drwetter/testssl.sh

孟津ssl適用于網站、小程序/APP、API接口等需要進行數據傳輸應用場景，ssl證書未來市場廣闊！成為創新互聯公司的ssl證書銷售渠道，可以享受市場價格4-6折優惠！如果有意向歡迎電話聯系或者加微信：13518219792（備注：SSL證書合作）期待與您的合作！

testssl.sh 是一個免費且開源的功能豐富的命令行工具，用于在 Linux/BSD 服務器上檢查支持加密，協議和一些加密缺陷的支持 TLS/SSL 加密的服務。

testssl

git clone --depth 1 --branch 2.9.5 https://github.com/drwetter/testssl.sh.git

錯誤
Fatal error: Neither "dig", "host", "drill" or "nslookup" is present
解決方法

[root@localhost testssl.sh]# yum install bind-utils -y

常用參數
-b，-v：這2個是顯示版本的testssl自身的信息
-V：輸出現有的本機密碼套件列表
-t（--startssl）：指明要測試的協議：
https ，ftp，smtp，pop3，imap，xmpp，telnet，ldap，postgres，mysql，
其中 telnet，ldap，postgres ，mysql 這4個協議要指定openssl
--mode < serial| parallel> 模式，默認是串行模式，若多核CPU大規模測試可選并行
--parallel：選項啟用并行測試（默認是串行），等同于 --mode parallel
-e：測試每個密碼套件
-E：測試每個協議（SSL2 SSL3 TLS1 TLS1.1 TLS1.2
）
-s (--std)：測試加密強度很高的一些密碼套件
-p（--protocols ) ：測試每個TLS與SSL協議并且檢測 spdy 與 http2
-S：測試并顯示服務器端證書信息
-P：測試并顯示服務器偏好（也就是服務器優先配置的TLS協議和密碼套件）
-x（ --single-cipher <pattern> ）：指定一個密碼套件，也就是測試一下是否支持指定的這個套件
-c：測試客戶端支持情況
-h （--header）：測試是否支持 HSTS, HPKP， cookie ，ipv4 ，代理，安全頭部等
-U：測試所有的漏洞

所有漏洞
-H, --heartbleed：tests for Heartbleed vulnerability
-I, --ccs, --ccs-injection：tests for CCS injection vulnerability
-T, --ticketbleed：tests for Ticketbleed vulnerability in BigIP loadbalancers
-R, --renegotiation：tests for renegotiation vulnerabilities
-C, --compression, --crime：tests for CRIME vulnerability (TLS compression issue)
-B, --breach：tests for BREACH vulnerability (HTTP compression issue)
-O, --poodle：tests for POODLE (SSL) vulnerability
-Z, --tls-fallback：checks TLS_FALLBACK_SCSV mitigation
-W, --sweet32：tests 64 bit block ciphers (3DES, RC2 and IDEA): SWEET32 vulnerability
-A, --beast：tests for BEAST vulnerability
-L, --lucky13：tests for LUCKY13
-F, --freak：tests for FREAK vulnerability
-J, --logjam：tests for LOGJAM vulnerability
-D, --drown：tests for DROWN vulnerability
-f, --pfs, --fs, --nsa：checks (perfect) forward secrecy settings
-4, --rc4, --appelbaum：which RC4 ciphers are being offered?

-6：支持ipv6
--ip [one]：直接測試ip所指向的地址，不使用DNS解析出來的ip地址；參數one 是指使用NDS解析返回的第一個IP地址，因為很多站點會有多個IP，那么會重復測試多次。
-n (--nodns) ：不使用DNS
--sneaky：在服務器端少留痕跡
--quiet：不輸出banner
--fast：只顯示第一個密碼套件與-P 合用
--log：輸出文檔（有默認名稱）
--logfile：指定一個輸出文檔
--json：json格式的文檔（有默認名稱）
--jsonfile：指定一個json格式文檔
--csv：csv格式的文檔（有默認名稱）
--csvfile：指定一個csv 格式文檔
--html：html 格式文檔（有默認名）
--htmlfile：指定一個html文檔
--append：允許追加

測試

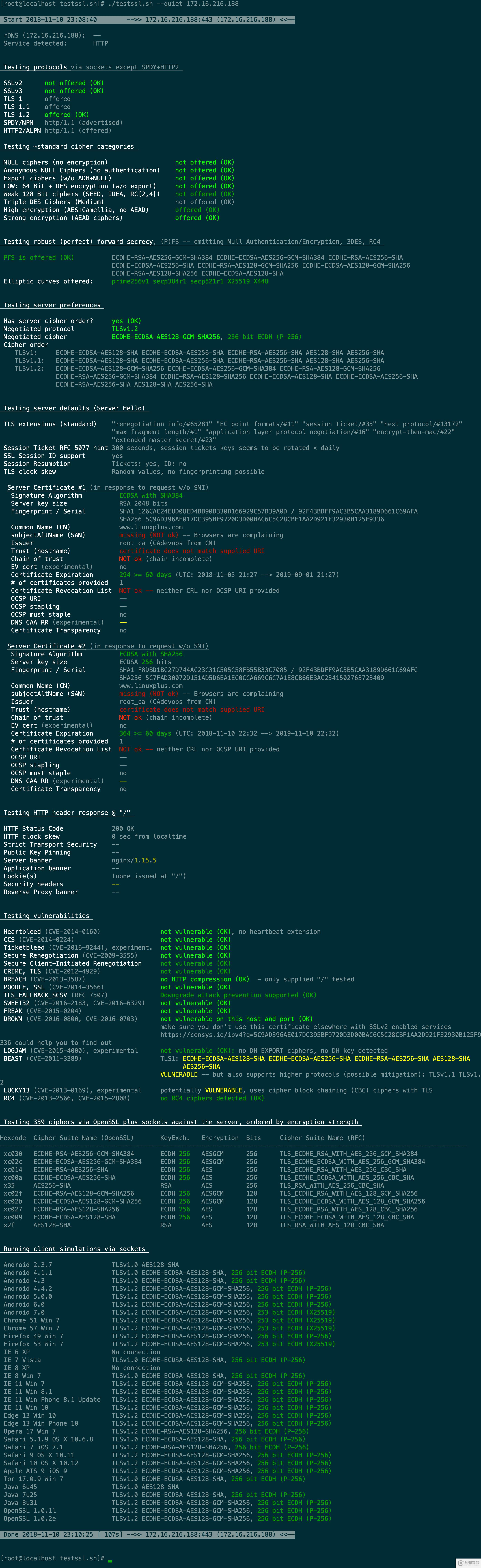

[root@localhost testssl.sh]# ./testssl.sh --quiet 172.16.216.188

 Start 2018-11-10 23:08:40        -->> 172.16.216.188:443 (172.16.216.188) <<--

 rDNS (172.16.216.188):  --
 Service detected:       HTTP

 Testing protocols via sockets except SPDY+HTTP2

 SSLv2      not offered (OK)
 SSLv3      not offered (OK)
 TLS 1      offered
 TLS 1.1    offered
 TLS 1.2    offered (OK)
 SPDY/NPN   http/1.1 (advertised)
 HTTP2/ALPN http/1.1 (offered)

 Testing ~standard cipher categories

 NULL ciphers (no encryption)                  not offered (OK)
 Anonymous NULL Ciphers (no authentication)    not offered (OK)
 Export ciphers (w/o ADH+NULL)                 not offered (OK)
 LOW: 64 Bit + DES encryption (w/o export)     not offered (OK)
 Weak 128 Bit ciphers (SEED, IDEA, RC[2,4])    not offered (OK)
 Triple DES Ciphers (Medium)                   not offered (OK)
 High encryption (AES+Camellia, no AEAD)       offered (OK)
 Strong encryption (AEAD ciphers)              offered (OK)

 Testing robust (perfect) forward secrecy, (P)FS -- omitting Null Authentication/Encryption, 3DES, RC4

 PFS is offered (OK)          ECDHE-RSA-AES256-GCM-SHA384 ECDHE-ECDSA-AES256-GCM-SHA384 ECDHE-RSA-AES256-SHA
                              ECDHE-ECDSA-AES256-SHA ECDHE-RSA-AES128-GCM-SHA256 ECDHE-ECDSA-AES128-GCM-SHA256
                              ECDHE-RSA-AES128-SHA256 ECDHE-ECDSA-AES128-SHA
 Elliptic curves offered:     prime256v1 secp384r1 secp521r1 X25519 X448

 Testing server preferences

 Has server cipher order?     yes (OK)
 Negotiated protocol          TLSv1.2
 Negotiated cipher            ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Cipher order
    TLSv1:     ECDHE-ECDSA-AES128-SHA ECDHE-ECDSA-AES256-SHA ECDHE-RSA-AES256-SHA AES128-SHA AES256-SHA
    TLSv1.1:   ECDHE-ECDSA-AES128-SHA ECDHE-ECDSA-AES256-SHA ECDHE-RSA-AES256-SHA AES128-SHA AES256-SHA
    TLSv1.2:   ECDHE-ECDSA-AES128-GCM-SHA256 ECDHE-ECDSA-AES256-GCM-SHA384 ECDHE-RSA-AES128-GCM-SHA256
               ECDHE-RSA-AES256-GCM-SHA384 ECDHE-RSA-AES128-SHA256 ECDHE-ECDSA-AES128-SHA ECDHE-ECDSA-AES256-SHA
               ECDHE-RSA-AES256-SHA AES128-SHA AES256-SHA

 Testing server defaults (Server Hello)

 TLS extensions (standard)    "renegotiation info/#65281" "EC point formats/#11" "session ticket/#35" "next protocol/#13172"
                              "max fragment length/#1" "application layer protocol negotiation/#16" "encrypt-then-mac/#22"
                              "extended master secret/#23"
 Session Ticket RFC 5077 hint 300 seconds, session tickets keys seems to be rotated < daily
 SSL Session ID support       yes
 Session Resumption           Tickets: yes, ID: no
 TLS clock skew               Random values, no fingerprinting possible

  Server Certificate #1 (in response to request w/o SNI)
   Signature Algorithm          ECDSA with SHA384
   Server key size              RSA 2048 bits
   Fingerprint / Serial         SHA1 126CAC24E8D08ED4BB90B330D166929C57D39A0D / 92F43BDFF9AC3B5CAA3189D661C69AFA
                                SHA256 5C9AD396AE017DC395BF9720D3D00BAC6C5C28CBF1AA2D921F32930B125F9336
   Common Name (CN)            www.linuxplus.com
   subjectAltName (SAN)         missing (NOT ok) -- Browsers are complaining
   Issuer                       root_ca (CAdevops from CN)
   Trust (hostname)             certificate does not match supplied URI
   Chain of trust               NOT ok (chain incomplete)
   EV cert (experimental)       no
   Certificate Expiration       294 >= 60 days (UTC: 2018-11-05 21:27 --> 2019-09-01 21:27)
   # of certificates provided   1
   Certificate Revocation List  NOT ok -- neither CRL nor OCSP URI provided
   OCSP URI                     --
   OCSP stapling                --
   OCSP must staple             no
   DNS CAA RR (experimental)    --
   Certificate Transparency     no

  Server Certificate #2 (in response to request w/o SNI)
   Signature Algorithm          ECDSA with SHA256
   Server key size              ECDSA 256 bits
   Fingerprint / Serial         SHA1 F8DBD1BC27D744AC23C31C505C58FB55B33C7085 / 92F43BDFF9AC3B5CAA3189D661C69AFC
                                SHA256 5C7FAD30072D151AD5D6EA1EC0CCA669C6C7A1E8CB66E3AC2341502763723409
   Common Name (CN)            www.linuxplus.com
   subjectAltName (SAN)         missing (NOT ok) -- Browsers are complaining
   Issuer                       root_ca (CAdevops from CN)
   Trust (hostname)             certificate does not match supplied URI
   Chain of trust               NOT ok (chain incomplete)
   EV cert (experimental)       no
   Certificate Expiration       364 >= 60 days (UTC: 2018-11-10 22:32 --> 2019-11-10 22:32)
   # of certificates provided   1
   Certificate Revocation List  NOT ok -- neither CRL nor OCSP URI provided
   OCSP URI                     --
   OCSP stapling                --
   OCSP must staple             no
   DNS CAA RR (experimental)    --
   Certificate Transparency     no

 Testing HTTP header response @ "/"

 HTTP Status Code             200 OK
 HTTP clock skew              0 sec from localtime
 Strict Transport Security    --
 Public Key Pinning           --
 Server banner                nginx/1.15.5
 Application banner           --
 Cookie(s)                    (none issued at "/")
 Security headers             --
 Reverse Proxy banner         --

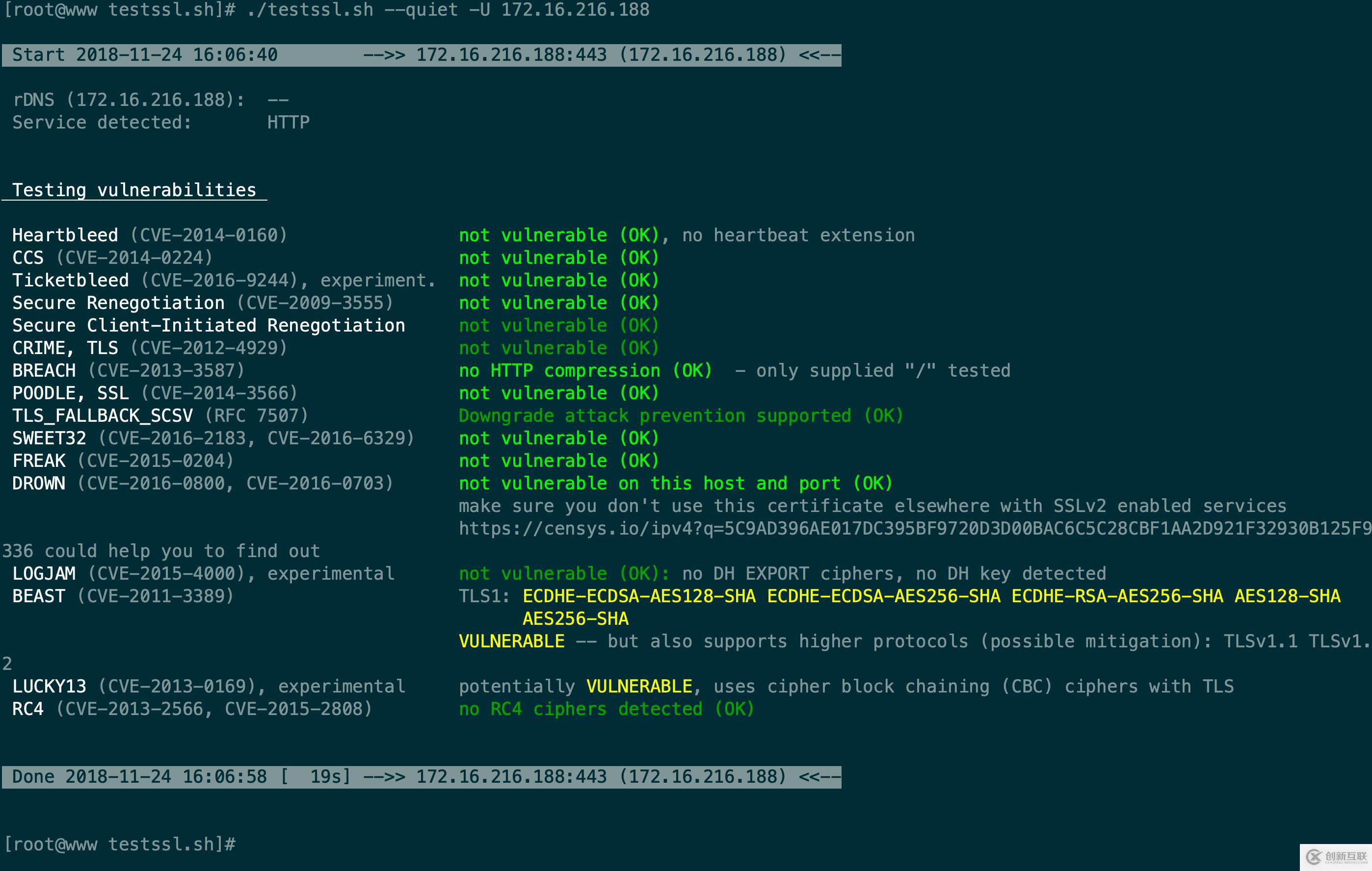

 Testing vulnerabilities

 Heartbleed (CVE-2014-0160)                not vulnerable (OK), no heartbeat extension
 CCS (CVE-2014-0224)                       not vulnerable (OK)
 Ticketbleed (CVE-2016-9244), experiment.  not vulnerable (OK)
 Secure Renegotiation (CVE-2009-3555)      not vulnerable (OK)
 Secure Client-Initiated Renegotiation     not vulnerable (OK)
 CRIME, TLS (CVE-2012-4929)                not vulnerable (OK)
 BREACH (CVE-2013-3587)                    no HTTP compression (OK)  - only supplied "/" tested
 POODLE, SSL (CVE-2014-3566)               not vulnerable (OK)
 TLS_FALLBACK_SCSV (RFC 7507)              Downgrade attack prevention supported (OK)
 SWEET32 (CVE-2016-2183, CVE-2016-6329)    not vulnerable (OK)
 FREAK (CVE-2015-0204)                     not vulnerable (OK)
 DROWN (CVE-2016-0800, CVE-2016-0703)      not vulnerable on this host and port (OK)
                                           make sure you don't use this certificate elsewhere with SSLv2 enabled services
                                           https://censys.io/ipv4?q=5C9AD396AE017DC395BF9720D3D00BAC6C5C28CBF1AA2D921F32930B125F9336 could help you to find out
 LOGJAM (CVE-2015-4000), experimental      not vulnerable (OK): no DH EXPORT ciphers, no DH key detected
 BEAST (CVE-2011-3389)                     TLS1: ECDHE-ECDSA-AES128-SHA ECDHE-ECDSA-AES256-SHA ECDHE-RSA-AES256-SHA AES128-SHA
                                                 AES256-SHA
                                           VULNERABLE -- but also supports higher protocols (possible mitigation): TLSv1.1 TLSv1.2
 LUCKY13 (CVE-2013-0169), experimental     potentially VULNERABLE, uses cipher block chaining (CBC) ciphers with TLS
 RC4 (CVE-2013-2566, CVE-2015-2808)        no RC4 ciphers detected (OK)

 Testing 359 ciphers via OpenSSL plus sockets against the server, ordered by encryption strength

Hexcode  Cipher Suite Name (OpenSSL)       KeyExch.   Encryption  Bits     Cipher Suite Name (RFC)
-----------------------------------------------------------------------------------------------------------------------------
 xc030   ECDHE-RSA-AES256-GCM-SHA384       ECDH 256   AESGCM      256      TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
 xc02c   ECDHE-ECDSA-AES256-GCM-SHA384     ECDH 256   AESGCM      256      TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
 xc014   ECDHE-RSA-AES256-SHA              ECDH 256   AES         256      TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA
 xc00a   ECDHE-ECDSA-AES256-SHA            ECDH 256   AES         256      TLS_ECDHE_ECDSA_WITH_AES_256_CBC_SHA
 x35     AES256-SHA                        RSA        AES         256      TLS_RSA_WITH_AES_256_CBC_SHA
 xc02f   ECDHE-RSA-AES128-GCM-SHA256       ECDH 256   AESGCM      128      TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
 xc02b   ECDHE-ECDSA-AES128-GCM-SHA256     ECDH 256   AESGCM      128      TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256
 xc027   ECDHE-RSA-AES128-SHA256           ECDH 256   AES         128      TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256
 xc009   ECDHE-ECDSA-AES128-SHA            ECDH 256   AES         128      TLS_ECDHE_ECDSA_WITH_AES_128_CBC_SHA
 x2f     AES128-SHA                        RSA        AES         128      TLS_RSA_WITH_AES_128_CBC_SHA

 Running client simulations via sockets

 Android 2.3.7                TLSv1.0 AES128-SHA
 Android 4.1.1                TLSv1.0 ECDHE-ECDSA-AES128-SHA, 256 bit ECDH (P-256)
 Android 4.3                  TLSv1.0 ECDHE-ECDSA-AES128-SHA, 256 bit ECDH (P-256)
 Android 4.4.2                TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Android 5.0.0                TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Android 6.0                  TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Android 7.0                  TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 253 bit ECDH (X25519)
 Chrome 51 Win 7              TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 253 bit ECDH (X25519)
 Chrome 57 Win 7              TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 253 bit ECDH (X25519)
 Firefox 49 Win 7             TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Firefox 53 Win 7             TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 253 bit ECDH (X25519)
 IE 6 XP                      No connection
 IE 7 Vista                   TLSv1.0 ECDHE-ECDSA-AES128-SHA, 256 bit ECDH (P-256)
 IE 8 XP                      No connection
 IE 8 Win 7                   TLSv1.0 ECDHE-ECDSA-AES128-SHA, 256 bit ECDH (P-256)
 IE 11 Win 7                  TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 IE 11 Win 8.1                TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 IE 11 Win Phone 8.1 Update   TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 IE 11 Win 10                 TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Edge 13 Win 10               TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Edge 13 Win Phone 10         TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Opera 17 Win 7               TLSv1.2 ECDHE-RSA-AES128-SHA256, 256 bit ECDH (P-256)
 Safari 5.1.9 OS X 10.6.8     TLSv1.0 ECDHE-ECDSA-AES128-SHA, 256 bit ECDH (P-256)
 Safari 7 iOS 7.1             TLSv1.2 ECDHE-RSA-AES128-SHA256, 256 bit ECDH (P-256)
 Safari 9 OS X 10.11          TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Safari 10 OS X 10.12         TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Apple ATS 9 iOS 9            TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 Tor 17.0.9 Win 7             TLSv1.0 ECDHE-ECDSA-AES128-SHA, 256 bit ECDH (P-256)
 Java 6u45                    TLSv1.0 AES128-SHA
 Java 7u25                    TLSv1.0 ECDHE-ECDSA-AES128-SHA, 256 bit ECDH (P-256)
 Java 8u31                    TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 OpenSSL 1.0.1l               TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)
 OpenSSL 1.0.2e               TLSv1.2 ECDHE-ECDSA-AES128-GCM-SHA256, 256 bit ECDH (P-256)

 Done 2018-11-10 23:10:25 [ 107s] -->> 172.16.216.188:443 (172.16.216.188) <<--

SSL/TLS深度解析--測試TLS/SSL加密

[root@www testssl.sh]# ./testssl.sh -c --quiet --html 172.16.216.188
[root@www testssl.sh]# ll *.html
-rw-r--r--. 1 root root  5687 11月 24 15:59 172.16.216.188_p443-20181124-1558.html
[root@www testssl.sh]# ./testssl.sh -c --quiet --log 172.16.216.188
[root@www testssl.sh]# ll *.log
-rw-r--r--. 1 root root 985 11月 24 16:04 172.16.216.188_p443-20181124-1604.log

[root@www testssl.sh]# ./testssl.sh --quiet -U 172.16.216.188

 Start 2018-11-24 16:06:40        -->> 172.16.216.188:443 (172.16.216.188) <<--

 rDNS (172.16.216.188):  --
 Service detected:       HTTP

 Testing vulnerabilities

 Heartbleed (CVE-2014-0160)                not vulnerable (OK), no heartbeat extension
 CCS (CVE-2014-0224)                       not vulnerable (OK)
 Ticketbleed (CVE-2016-9244), experiment.  not vulnerable (OK)
 Secure Renegotiation (CVE-2009-3555)      not vulnerable (OK)
 Secure Client-Initiated Renegotiation     not vulnerable (OK)
 CRIME, TLS (CVE-2012-4929)                not vulnerable (OK)
 BREACH (CVE-2013-3587)                    no HTTP compression (OK)  - only supplied "/" tested
 POODLE, SSL (CVE-2014-3566)               not vulnerable (OK)
 TLS_FALLBACK_SCSV (RFC 7507)              Downgrade attack prevention supported (OK)
 SWEET32 (CVE-2016-2183, CVE-2016-6329)    not vulnerable (OK)
 FREAK (CVE-2015-0204)                     not vulnerable (OK)
 DROWN (CVE-2016-0800, CVE-2016-0703)      not vulnerable on this host and port (OK)
                                           make sure you don't use this certificate elsewhere with SSLv2 enabled services
                                           https://censys.io/ipv4?q=5C9AD396AE017DC395BF9720D3D00BAC6C5C28CBF1AA2D921F32930B125F9336 could help you to find out
 LOGJAM (CVE-2015-4000), experimental      not vulnerable (OK): no DH EXPORT ciphers, no DH key detected
 BEAST (CVE-2011-3389)                     TLS1: ECDHE-ECDSA-AES128-SHA ECDHE-ECDSA-AES256-SHA ECDHE-RSA-AES256-SHA AES128-SHA
                                                 AES256-SHA
                                           VULNERABLE -- but also supports higher protocols (possible mitigation): TLSv1.1 TLSv1.2
 LUCKY13 (CVE-2013-0169), experimental     potentially VULNERABLE, uses cipher block chaining (CBC) ciphers with TLS
 RC4 (CVE-2013-2566, CVE-2015-2808)        no RC4 ciphers detected (OK)

SSL/TLS深度解析--測試TLS/SSL加密

另外有需要云服務器可以了解下創新互聯scvps.cn，海內外云服務器15元起步，三天無理由+7*72小時售后在線，公司持有idc許可證，提供“云服務器、裸金屬服務器、高防服務器、香港服務器、美國服務器、虛擬主機、免備案服務器”等云主機租用服務以及企業上云的綜合解決方案，具有“安全穩定、簡單易用、服務可用性高、性價比高”等特點與優勢，專為企業上云打造定制，能夠滿足用戶豐富、多元化的應用場景需求。

網站名稱：SSL/TLS深度解析--測試TLS/SSL加密-創新互聯
鏈接分享：http://jinyejixie.com/article0/ccpjoo.html

成都網站建設公司_創新互聯，為您提供定制網站、網站制作、網站導航、移動網站建設、標簽優化、網站策劃

聲明：本網站發布的內容（圖片、視頻和文字）以用戶投稿、用戶轉載內容為主，如果涉及侵權請盡快告知，我們將會在第一時間刪除。文章觀點不代表本網站立場，如需處理請聯系客服。電話：028-86922220；郵箱：631063699@qq.com。內容未經允許不得轉載，或轉載時需注明來源：創新互聯

猜你還喜歡下面的內容

成人午夜视频全免费观看高清-秋霞福利视频一区二区三区-国产精品久久久久电影小说-亚洲不卡区三一区三区一区

SSL/TLS深度解析--測試TLS/SSL加密-創新互聯

testssl
